الوصف

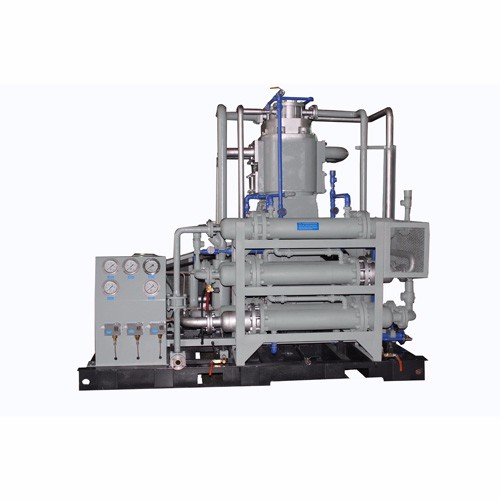

The PET air compressor is the main body in the air blower of the blow molding machine. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a special blower for compressed air. Air pressure generating device. Blowing air compressors are divided into: low pressure blowing machine (15-25bar), medium pressure blowing machine (25-35bar), high pressure blowing machine (35-40bar).
There are many types of blown air compressors, which can be divided into piston compressors, screw compressors and centrifugal compressors according to the working principle. The working principle of the volumetric compressor is to compress the volume of gas, so that the density of gas molecules per unit volume is increased to increase the pressure of compressed air; the working principle of the screw compressor is twin-screw compression, so that the gas is in the cavity of the twin-screw compressor. The kinetic energy is converted into the pressure energy of the gas, thereby increasing the pressure of the compressed air. The centrifugal compressor uses the impeller to rotate at a high speed to convert the gas into gas kinetic energy under high-speed centrifugal conditions, thereby providing compressed air pressure.
S/N
ITEMS
TECHNICAL DATA
1
Working medium
AIR
2
model
ZW-3.4/40
3
Structure
oil free reciprocating,Vertical type skid mount
4
Pressure stage
3
5
Rated capacity(standard)Nm3/h
200
6
Rated inlet pressure MPa(G)
Atmoshpere
7
Rated outlet pressure MPa(G)
4.0
8
Inlet temperature℃
≤35
9
Outlet temperature ℃
≤130
10
Transmit gas temperature℃
≤55
11
Shaft speed r/min
600 ※
12
Cooling way
Air cooling
13
Lubricate way
Shaft and connect rod
Lubricate oil
Cylinder
Oil free lubricate
14
Motor power Kw
45 KW 380V 50HZ 3phase※
15
Transmit way
Belt driven
16
Installation way
Simple basement
17
Automatic control parts
Overload ,stop automatic
18
External dimension L×W×H mm
2200*1850*2150 ※
19
Inlet and outlet mm
DN25
20
Weight Kg
2650 ※
21
Voltage
380v/50hz/3phase
