الوصف

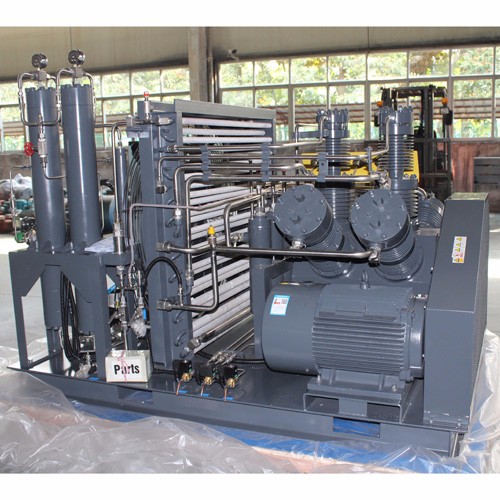

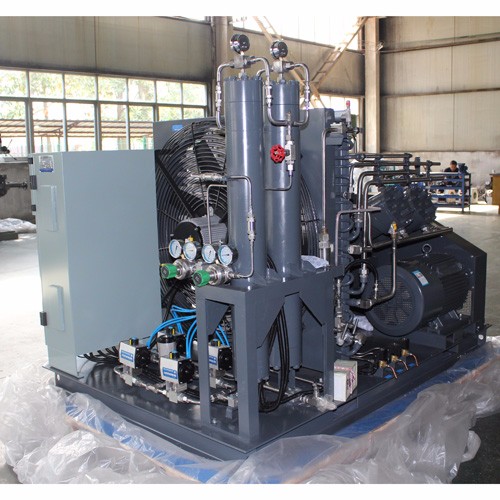

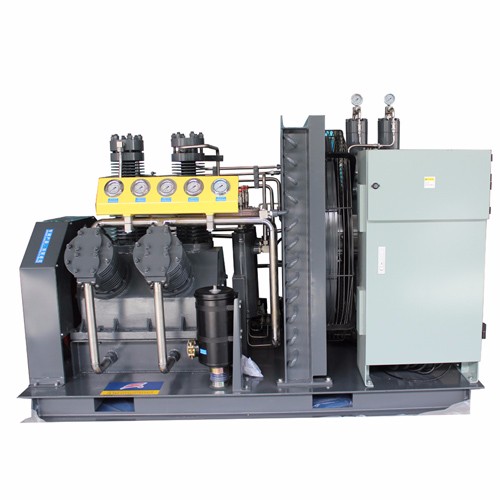

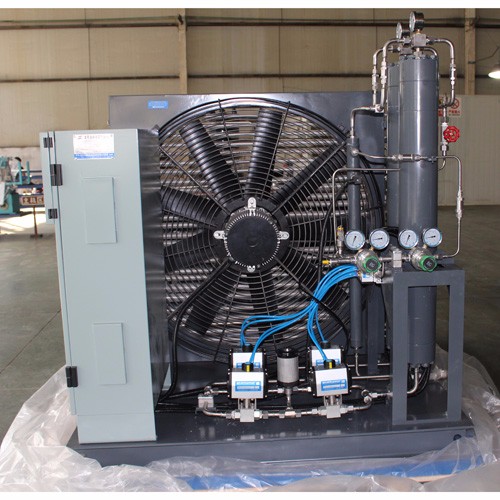

The high-pressure oil-free air compressor can reach 40MPA. It is mainly used for oil and gas, pipeline test valve testing, etc., which need clean and oil-free compressor air. Customers can customize the adsorption dryer. Remove moisture, reduce dew point, install PLC control, automate unattended work
300bar high pressure air compressor features:
1. Sand-proof design suitable for dusty areas
2. Multi-level compression,
3. All oil-free design ensures that the exhaust gas is clean and oil-free
|
S/N |
ITEMS |
TECHNICAL DATA |
|
|
1 |
Working medium |
Oil free air |
|
|
2 |
model |
G2W-25/400 |
|
|
3 |
Structure |
oil free reciprocating,double W type skid mount |
|
|
4 |
Pressure stage |
5 ,6 cylinder |
|
|
5 |
Rated capacity(standard)Nm3/h |
25 |
|
|
6 |
Rated inlet pressure MPa(G) |
Atmosphere pressure |
|
|
7 |
Rated outlet pressure MPa(G) |
40.0 |
|
|
8 |
Inlet temperature℃ |
≤40 |
|
|
9 |
Outlet temperature ℃ |
≤130 |
|
|
10 |
Transmit gas temperature℃ |
≤50 |
|
|
11 |
Shaft speed r/min |
200 ※ |
|
|
12 |
Cooling way |
Air cooling |
|
|
13 |
Lubricate way |
Shaft and connect rod |
Oil free |
|
Cylinder |
Oil free lubricate |
||
|
|
Shaft power |
≤10.9kw |
|
|
14 |
Motor power Kw |
15 KW 380V 50HZ 3phase ※ |
|
|
15 |
Transmit way |
Belt driven |
|
|
16 |
Installation way |
Simple basement |
|
|
17 |
Automatic control parts |
Overload ,stop automatic |
|
|
18 |
External dimension L×W×H mm |
1700X1500X1300 ※ |
|
|
19 |
Inlet and outlet mm |
25、M14X1.5 |
|
|
20 |
Weight Kg |
800 ※ |
|
|
21 |
Voltage |
380v/50hz/3phase |
|
