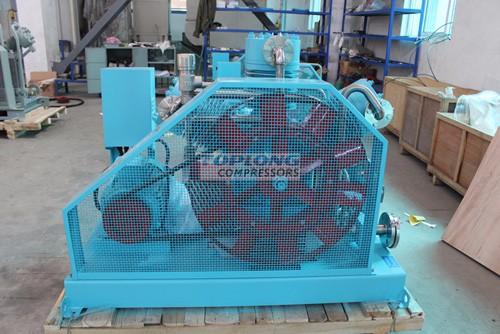

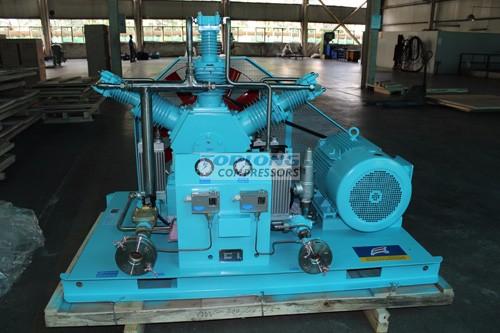

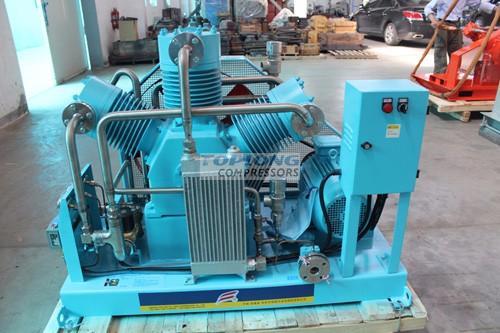

Oilless low pressure medical oxygen compressor OW-50/0.15-3

Oilless low pressure medical oxygen compressor OW-50/0.15-3

عنصر المنتج：ow-20/4-8

silent working

24 hours heavy duty working

CE and iso 9001

40 days for ETD time

الوصف

Main features of low pressure oilless oxygen compressor Devices products:

All oil-free lubrication is clean and non-polluting.

High efficiency and low energy consumption.

High reliability, continuous operation for 24 hours.

The unit is air-cooled or water-cooled to reduce installation costs.

Compact structure, low operating and maintenance costs.

Device parameters:

Project and parameters
Medium	Oxygen		Quantity	1
Inter pressure MPa（G）	0.015		Inlet temperature ℃	≤ 40
Discharge pressure Mpa（G）	0.3		Discharge temperature (After cooling) ℃	≤ 50
Volume flow Nm³/h	50		Piston stroke mm	110
Model	OW-50/0.15-3		Compressed series	2
Structural type	All oil-free lubrication W type		Number of cylinders	3
Speed of crankshaft r/min	500 ※		Voltage V	380
Cooling method	air cooling		cooling water flow t/h	---
Shaft power KW	≤7.6kw		Motor speed r/min	1440
Inlet and outlet air interface mm	50、25		Entry and exit water interface mm	---
Motor	11KW 380V 50Hz ※
Outline dimension mmXmmXmm	*170012001300* ※		Unit weight T	0.9 ※
Driving mode	belt drive
Material is partly in contact with the gas	Gas cylinder	stainless steel
	air valve	stainless steel
	Pipe, cooler	Stainless steel, aluminum alloy
Scope of supply	Main engine, motor, skid-mounted chassis, start cabinet, intake filter, front machine meter and control components, safety valve, random documents, random spare parts, etc. (Note: subject to the final technical agreement).
Other matters needing attention	Tip: dangerous gas, users must do a good job of daily security check work! Intake and exhaust pressure protection will automatically start and stop. Gas loss during the compression process
Delivery time	Contract signing, 40 working days after the advance payment to the account
