Features
1. The rotating parts are equipped with protective covers to ensure the safety of operators;
2. High strength nylon cooling fan has better cooling effect;
3. Strengthen the shockproof pad for the base of profiled steel plate to make the equipment run more smoothly;
4. Compact structure, more convenient to move;
5. Motor driven or gasoline engine driven to meet the air supply requirements under various conditions;
6. Splash type efficient lubrication;
7. Air filter (paper filter element)
8. Oil water separator (standard with manual blowdown, optional with automatic blowdown)
9. The air purification system (standard with manual blowdown, optional with automatic blowdown) is composed of activated carbon,
molecular sieve and carbon monoxide absorbing molecules, which is a triple breathing air purification system. The reusable packing
cartridge is simple and convenient for replacement and cost saving
10. Manual power stop function (optional automatic stop)
11. Final safety valve, automatic relief of overpressure
12. Shockproof pressure gauge 0-5800psi / 400bar
13. The compressor base is made of fine and durable;
14. Stainless steel cooling system;
15. The operation mode is simple and convenient for maintenance.

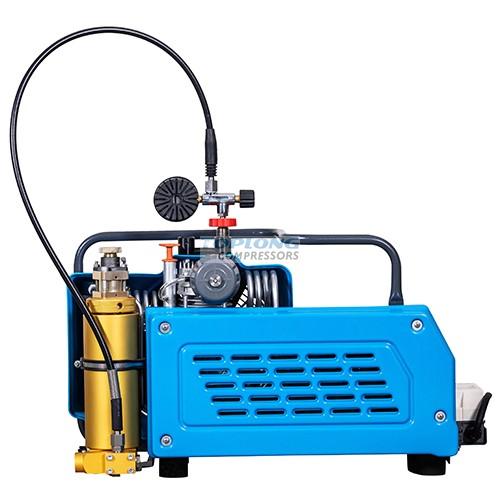

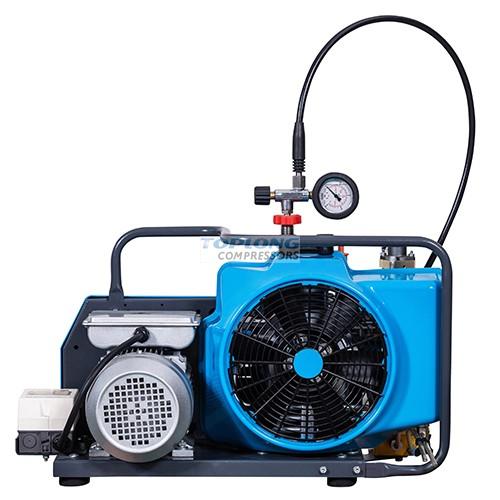

scuba air compressor technical data
NRW-100 | |
Exhaust volume L/min | 100L/min |
Pressure bar | 150-330 bar |
Power KW | 2.2KW |
Speed r/min | 2300r/min |
Voltage V/HZ | 220V/380V/460 50HZ-60HZ |
Weight KG | 48KG |
compression stages | 3 stage |
Outlet size | G5/8 |
Dimension mm | 680*400*425mm |
Note | |
Price USD | EXW 1500USD |
