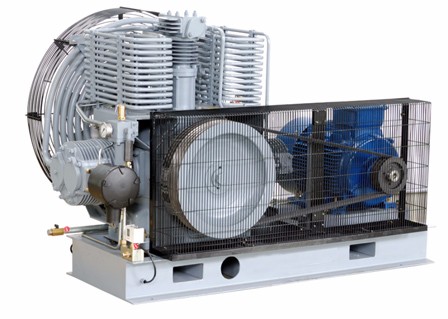

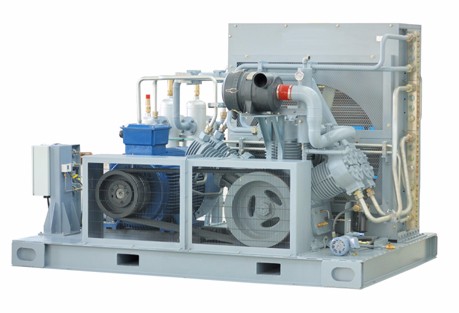

helium balloon gas recovery high pressure helium compressor 25Mpa

helium balloon gas recovery high pressure helium compressor 25Mpa

عنصر المنتج：HGB7.5-20-350

silent working

long working life

low maintenance cost

reliable quality performance

الوصف

helium balloon gas recovery high pressure helium compressor 25Mpa
Advantages：
Our compressors withstand the stress of modern, continuous duty applications in the most demanding environments.
Dependable Performance: suited for continuous operation, due to their rugged design and corrosion resistant intermediate filter and cooler assemblies.
State-of-the-Art Design: balanced moving parts in the drive gear and connecting rods allows for low vibration and balanced rod loads. Interstage coolers, finned after cooler, finned cylinders, finned aluminium heads, and fan-bladed flywheel produce cooler operating and discharge temperatures.
Top Graded Materials: cast iron cylinders for long life; ductile iron counterbalanced crankshaft with large diameter throw for low bearing loads, high strength and increased life; aluminium cylinder heads for superior heat dissipation; 7075-T6 aluminium connecting rods for high strength; and aluminium crankcase for elimination unnecessary weight.
Quality Assurance: All compressor pumps are individually tested and certified for performance to required operating conditions.
High Quality Components: anti-friction bearings for smooth operation with lower horsepower; front and rear bearings for precise crankshaft alignment and long shaft life; fully enclosed, all metal fan-blade guard; fly wheel precision-balanced and fan-bladed for excellent cooling capacity; heavy duty, shaft-driven, gear-type oil pump for generous lubrication to critical wear areas for longer pump life; stainless steel, disc-in-plate valves for long wear and excellent heat resistance and dissipation; valve housings nickel-plated for corrosion resistance.

Easy to Operate and Maintain: quick change air-intake filters for easy maintenance; two crankcase covers for quick and easy main bearing replacement and access to crankshaft and connecting rods.
All NA Series blocks are built to the highest quality standards. In each one
Standard Scope of Supply:
INLET GAS SYSTEM
Inlet shut valve
Inlet pressure gauges
Inlet high pressure switch
COMPRSSOR BLOCK
Three cylinders compressor block
THREE-CYLINDER COMPRESSOR, in “V” frame arrangement, air cooled, single effect, three-stage compression
Normal inertia flywheel with enforce fan, for V belts transmission
Flash lubrication system （with oil pump）
Low oil level switch
Light alloy pistons
Aluminum cylinder heads, with individual valve pockets
Automatic valves, big flow area, operating much below their nominal characteristics
AIR-COOLED intercoolers between stages, furnished with safety valve
AIR-COOLED after-cooler, furnished with safety valve
Interstage stage and discharge pressure gauges
AUTOMATIC PRESSURE UNLOADING SYSTEM, for no load starting
Air/coolant centrifugal separators on the second and third stage intercooler
Auto condensation drain on separators
Discharge check valve
ELECTRIC MOTOR

ELECTRIC MOTOR, induction, 3-phase, squirrel cage rotor, with the following features:
Horse Power 5.5KW
Speed 2900 rpm
Voltage 380 V
Frequency 50 Hz
Protection IP-54
Insulation Class F
B级 temp rise
"V" - BELT TRANSMISSION
Flywheel grooving
Grooved driving pulley
"V" belt set
CONFIGURATION AND STYLE OF UNIT
Cabinet design
Shock absorbers for free standing installation
Horizontal arrangement
Metallic guard
Sturdy steel frame, powder coated in RAL 7004
CONTROL SYSTEM
Display function:
Discharge pressure
Control mode
Compressor status
Running hours display
Fault indicator
Protection function:
Low oil level alarm and shutdown
Inlet air pressure low alarm and shutdown
Inlet air pressure high alarm and shutdown
Setting function:
Manual mode
Auto mode
Auto OFF pressure
Drain interval time
Drain time
Manual start

技术参数Technical Performance

Technical Performance HE0.2-250
Working stage	3 stage
Cylinder	3
Working pressure	250	bar
delivery	200	l/min
Motor power	4	kW
Voltage	380--400	V
Frequency	50	Hz
Noise	80.7	dB(A)
Dimension	975 x 475 x 605	mm
Weight	130	kg
