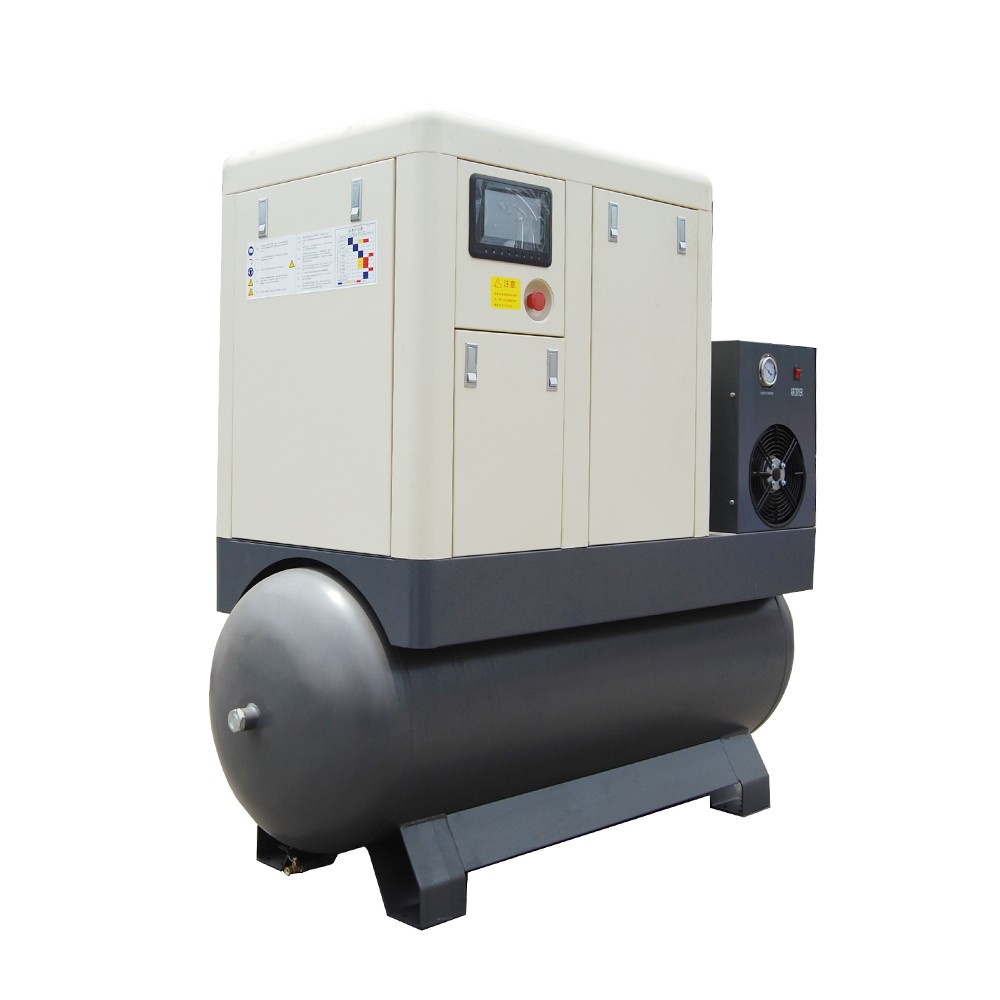

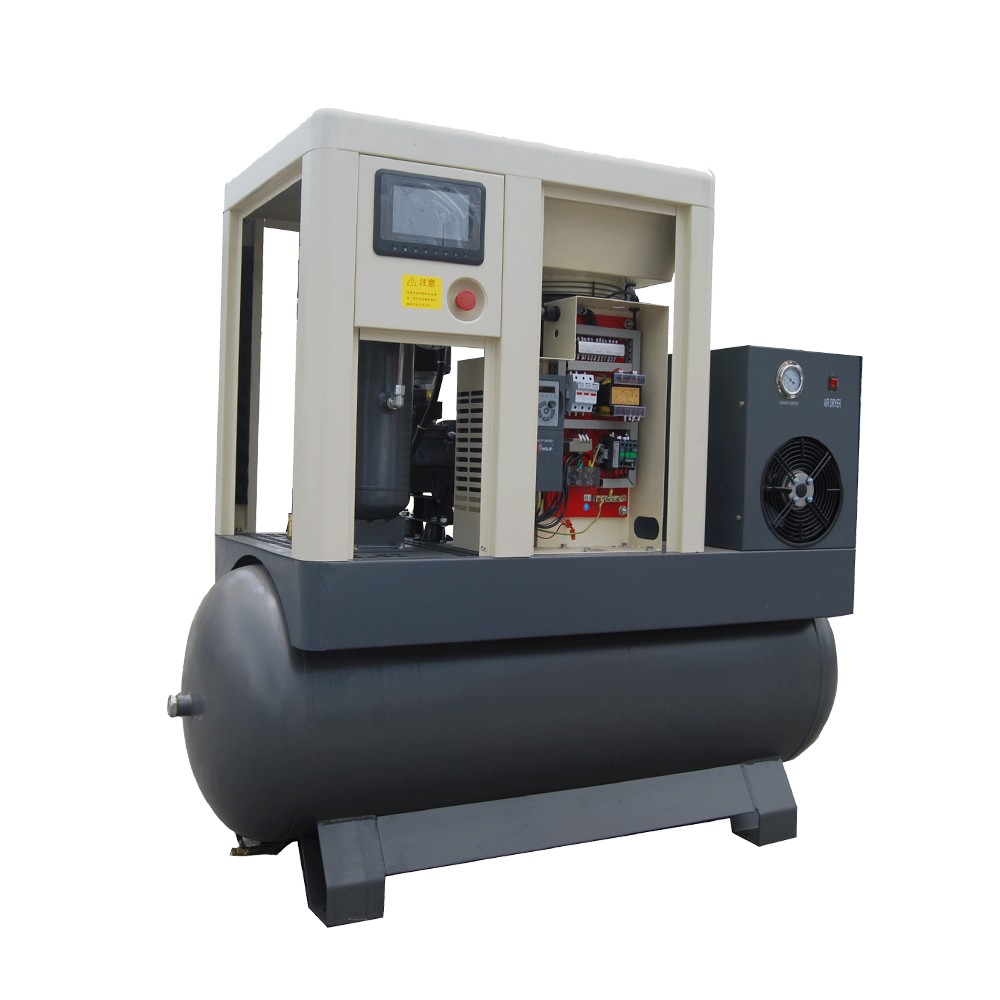

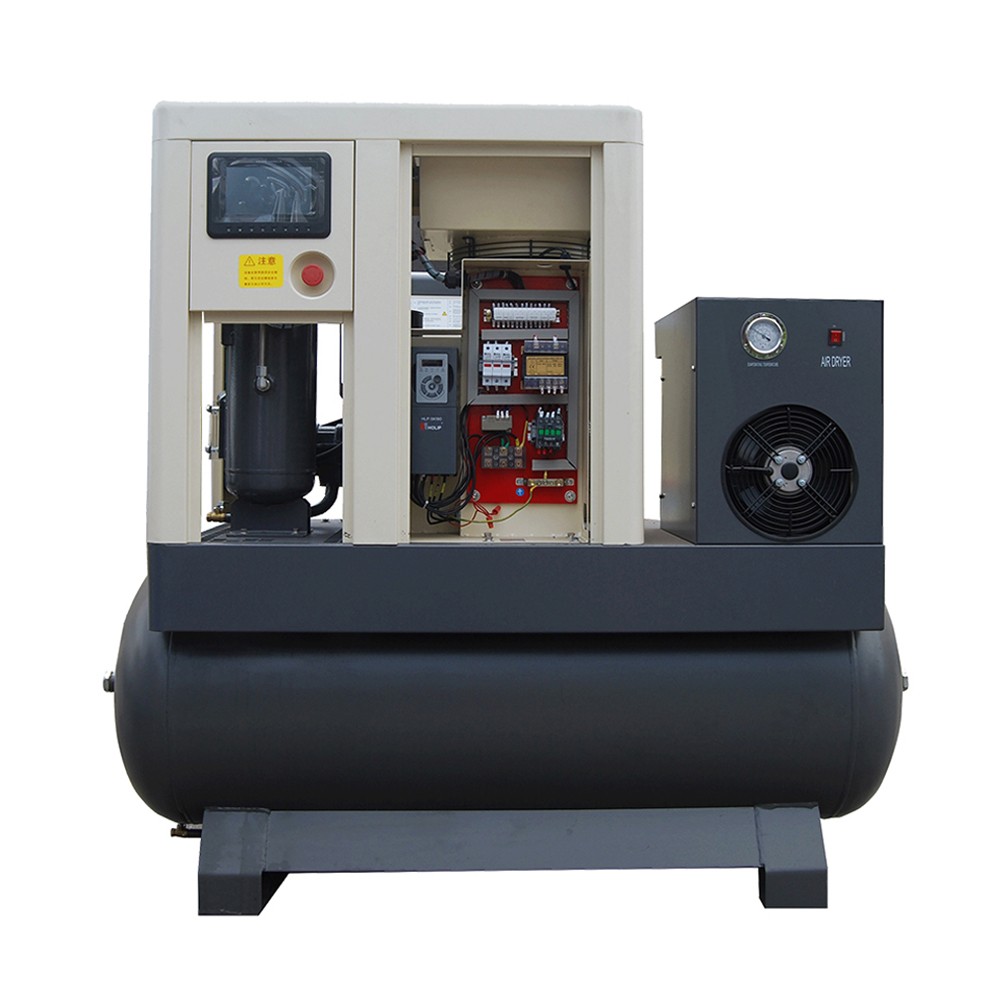

ALL IN ONE series compressed air system integrates screw air compressor, refrigerated air dryer, and air receiver tank into one assembly. This compact assembly provides a complete solution to produce clean and dry compressed air. Simplicity in just connecting an outlet pipe, drain pipe, and electrical cables to the system saves cost and space.

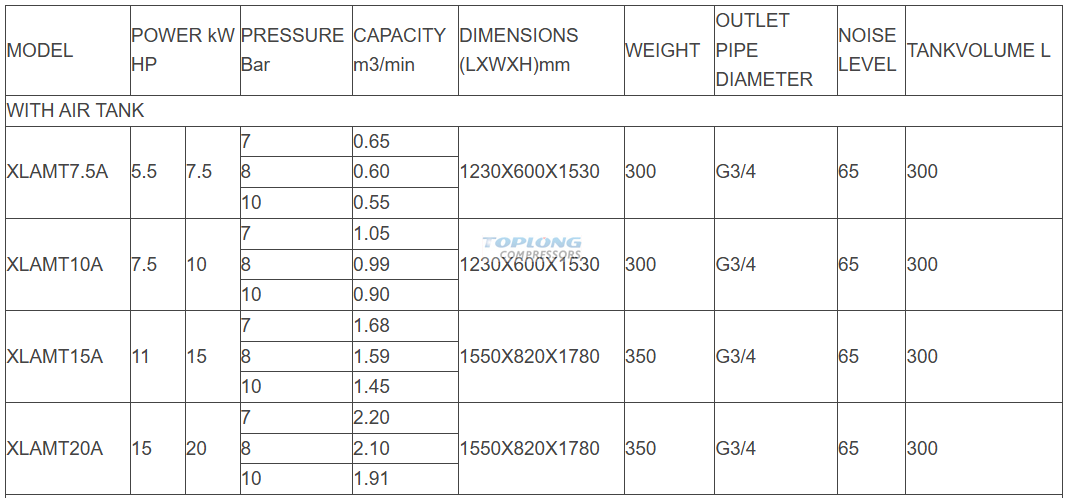

MODEL
POWER kW HP
PRESSURE Bar
CAPACITY m3/min
DIMENSIONS (LXWXH)mm
WEIGHT
OUTLET PIPE DIAMETER
NOISE LEVEL
TANKVOLUME L
WITH AIR TANK
XLAMT7.5A
5.5
7.5
7
0.65
1230X600X1530
300
G3/4
65
300
8
0.60
10
0.55
XLAMT10A
7.5
10
7
1.05
1230X600X1530
300
G3/4
65
300
8
0.99
10
0.90
XLAMT15A
11
15
7
1.68
1550X820X1780
350
G3/4
65
300
8
1.59
10
1.45
XLAMT20A
15
20
7
2.20
1550X820X1780
350
G3/4
65
300
8
2.10
10
1.91

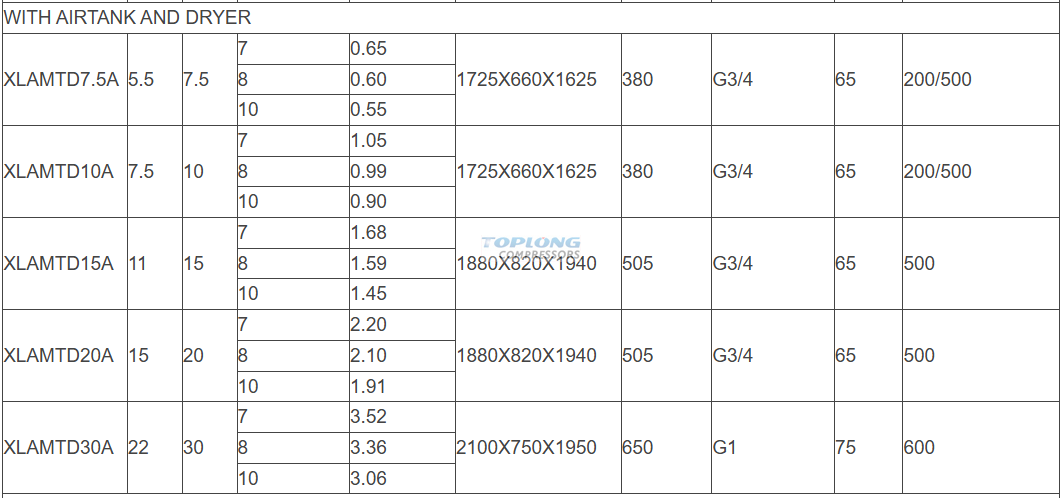

WITH AIRTANK AND DRYER
XLAMTD7.5A
5.5
7.5
7
0.65
1725X660X1625
380
G3/4
65
200/500
8
0.60
10
0.55
XLAMTD10A
7.5
10
7
1.05
1725X660X1625
380
G3/4
65
200/500
8
0.99
10
0.90
XLAMTD15A
11
15
7
1.68
1880X820X1940
505
G3/4
65
500
8
1.59
10
1.45
XLAMTD20A
15
20
7
2.20
1880X820X1940
505
G3/4
65
500
8
2.10
10
1.91
XLAMTD30A
22
30
7
3.52
2100X750X1950
650
G1
75
600
8
3.36
10
3.06

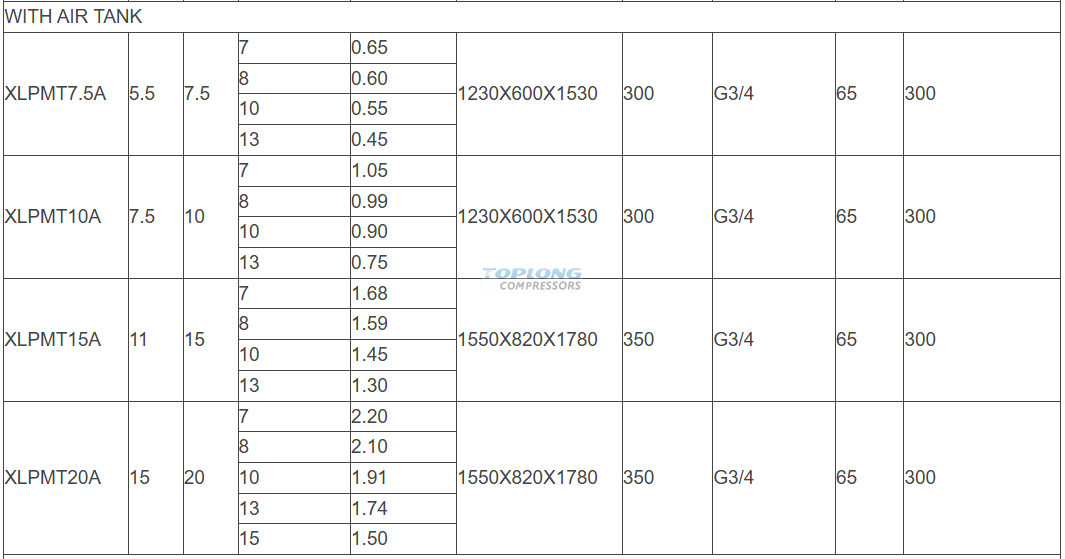

WITH AIR TANK
XLPMT7.5A
5.5
7.5
7
0.65
1230X600X1530
300
G3/4
65
300
8
0.60
10
0.55
13
0.45
XLPMT10A
7.5
10
7
1.05
1230X600X1530
300
G3/4
65
300
8
0.99
10
0.90
13
0.75
XLPMT15A
11
15
7
1.68
1550X820X1780
350
G3/4
65
300
8
1.59
10
1.45
13
1.30
XLPMT20A
15
20
7
2.20
1550X820X1780
350
G3/4
65
300
8
2.10
10
1.91
13
1.74
15
1.50

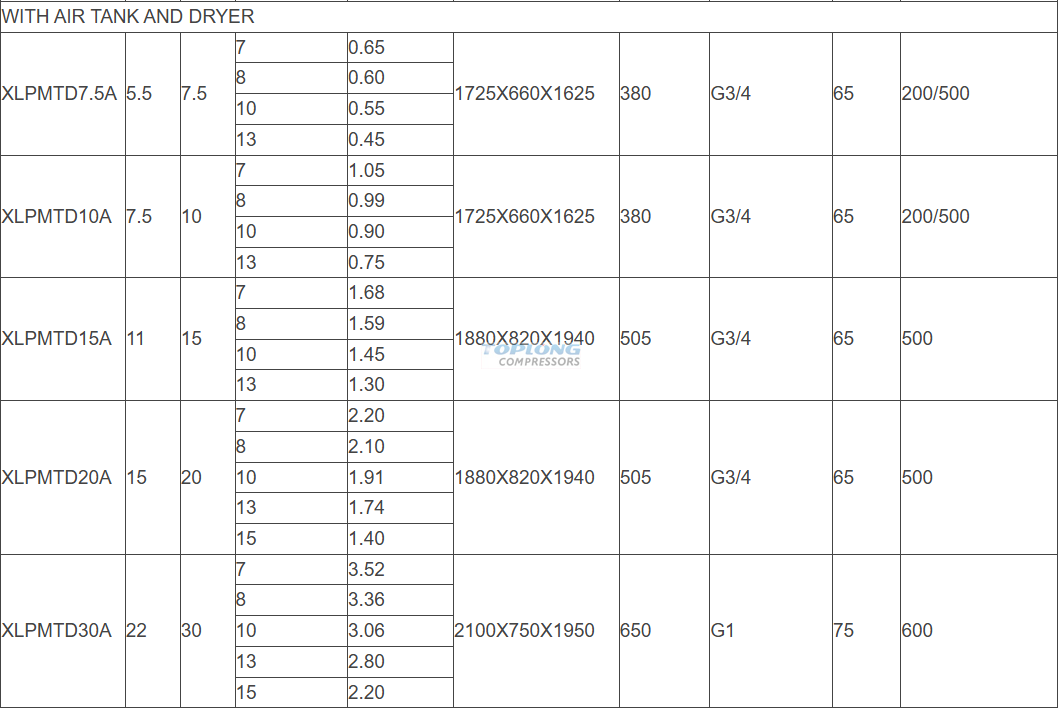

WITH AIR TANK AND DRYER
XLPMTD7.5A
5.5
7.5
7
0.65
1725X660X1625
380
G3/4
65
200/500
8
0.60
10
0.55
13
0.45
XLPMTD10A
7.5
10
7
1.05
1725X660X1625
380
G3/4
65
200/500
8
0.99
10
0.90
13
0.75
XLPMTD15A
11
15
7
1.68
1880X820X1940
505
G3/4
65
500
8
1.59
10
1.45
13
1.30
XLPMTD20A
15
20
7
2.20
1880X820X1940
505
G3/4
65
500
8
2.10
10
1.91
13
1.74
15
1.40
XLPMTD30A
22
30
7
3.52
2100X750X1950
650
G1
75
600
8
3.36
10
3.06
13
2.80
15
2.20
