descrizione

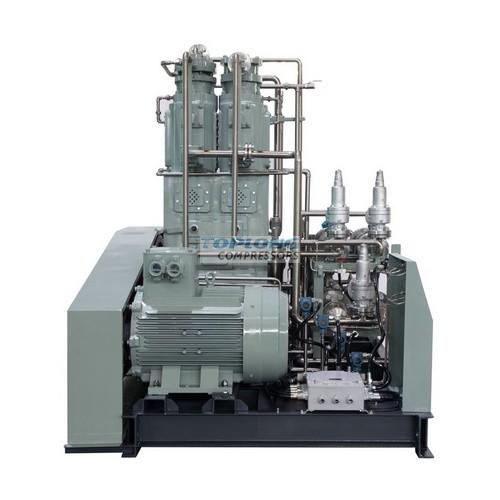

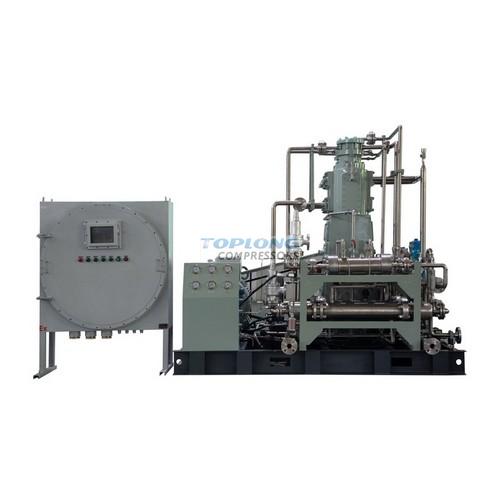

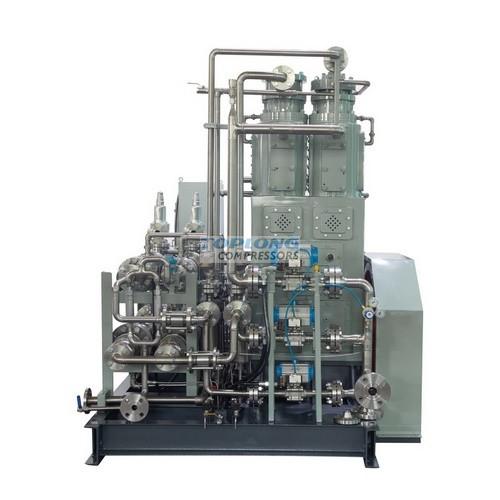

Carbon oxide co2 compressor refers to the compressor used to pressurize and transport carbon dioxide gas. Mainly used for,
1. Recovery and storage of dry ice volatile gas in CO2 plant and recycling of waste CO2 in the plant,
2. Use the liquid characteristics of CO2 for industrial and pharmaceutical extraction process
3. Large carbon dioxide compressor is mainly used in urea synthesis unit
Attention should be paid during design and use: (1) the critical temperature of carbon dioxide is high, which can be liquefied at 31.3 ℃ and 7.14mpa. When used in winter, the interstage cooling temperature should not be too low; (2) When carbon dioxide is below 60MPa, it is conducive to gas compression; (3) Due to the relatively high density of carbon dioxide gas, it is not suitable to use too large average speed of piston, otherwise the resistance of gas valve is large; (4) Carbon dioxide gas contains a small amount of water and is highly corrosive, so the gas valve, cooler and buffer tank should be made of stainless steel.Carbon oxide co2 compressor refers to the compressor used to pressurize and transport carbon dioxide gas. Mainly used for,
1. Recovery and storage of dry ice volatile gas in CO2 plant and recycling of waste CO2 in the plant,
2. Use the liquid characteristics of CO2 for industrial and pharmaceutical extraction process
3. Large carbon dioxide compressor is mainly used in urea synthesis unit
Attention should be paid during design and use: (1) the critical temperature of carbon dioxide is high, which can be liquefied at 31.3 ℃ and 7.14mpa. When used in winter, the interstage cooling temperature should not be too low; (2) When carbon dioxide is below 60MPa, it is conducive to gas compression; (3) Due to the relatively high density of carbon dioxide gas, it is not suitable to use too large average speed of piston, otherwise the resistance of gas valve is large; (4) Carbon dioxide gas contains a small amount of water and is highly corrosive, so the gas valve, cooler and buffer tank should be made of stainless steel.
Model
Working medium
suction pressure (Mpa,Psig)
Discharge pressure (Mpa,Psig)
Motor.KW
Flow rate Nm3/hr
Voltage
Cooling way
CW-30/0.05-20
CO2
Atmosphere
2，287
7.5kw
30
220V/380V/415V/440V 50/60HZ
air cooling
CW-30/3-30
CO2
0.3,43
3，430
7.5
30
220V/380V/415V/440V 50/60HZ
air cooling
CW-30/2-65
CO2
0.2,28
6.5,935
30
11
220V/380V/415V/440V 50/60HZ
air cooling
CW-30/55-80
CO2
5.5,790
8,1150
1.1
30
220V/380V/415V/440V 50/60HZ
air cooling
CW-80/0.05-20
CO2
Atmosphere
2，287
18.5
80
220V/380V/415V/440V 50/60HZ
water cooling
CW-105/0.2-25
CO2
0.02,3
2.5,360
30
105
220V/380V/415V/440V 50/60HZ
water cooling
CW-100/0.05-20
CO2
Atmosphere
2,287
22
100
220V/380V/415V/440V 50/60HZ
water cooling
CW-110/0.02-18
CO2
Atmosphere
1.8,260
30
110
220V/380V/415V/440V 50/60HZ
water cooling
CW-135/0.05-20
CO2
Atmosphere
2，287
30
130
220V/380V/415V/440V 50/60HZ
water cooling
CW-250/2-25
CO2
0.2,28
2.5,360
37
250
220V/380V/415V/440V 50/60HZ
water cooling
CW-300/1-25
CO2
0.1,14
2.5,360
45
300
220V/380V/415V/440V 50/60HZ
water cooling
CW-1200/70-150
CO2
7,1000
15,2150
55
1200
220V/380V/415V/440V 50/60HZ
water cooling
