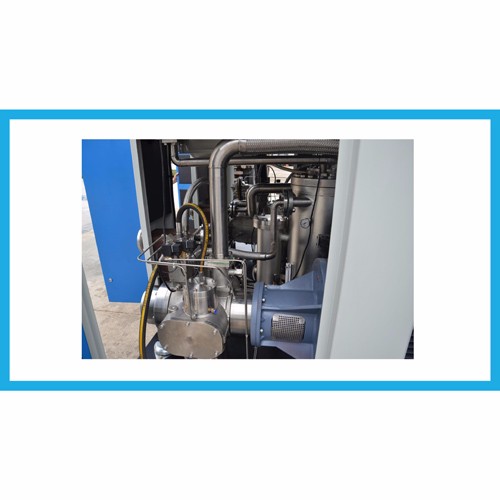

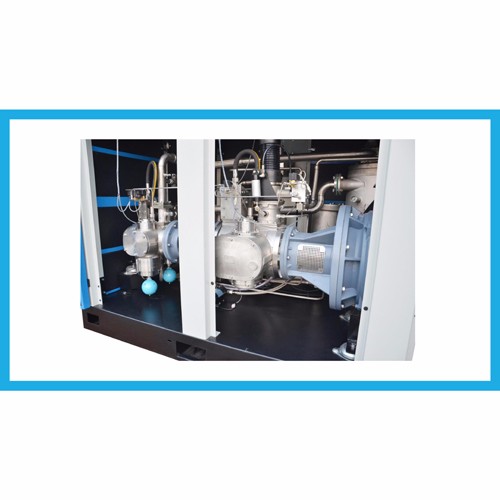

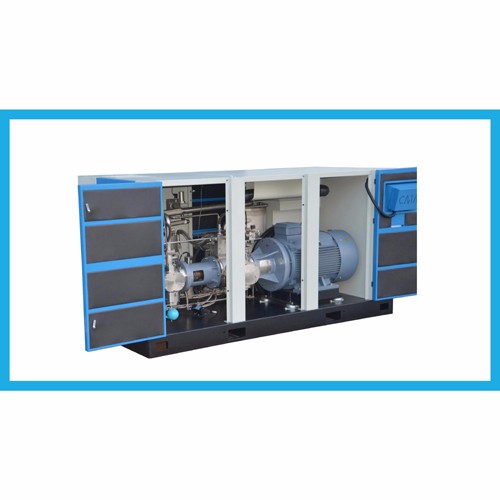

24M3 40bar Oil free Pet bottle blowing screw air compressor

Denominazione iupac：TP242GPV

oil free compressor

slow speed

low maintenance cost

reliable quality performance

our company 24M3 40BAR ,single screw bottle blowing oil free air compressor has follows characters:

1. Stable and reliable quality,

2.super energy saving,

3.long maintenance interval,

4.less wearing parts, low maintenance cost,

5.stainless steel two-stage compressor head,

6.absolutely oil-free,

7.absolutely environmentally friendly

Model	242GPV	Quantity	1PC

Working pressure scope		4.0Mpa（can adjust to 20-40bar)
Rate discharge flow		9.6-24.5Nm³/min
Rated power		250kW
Oil content		Null Content ,TUV oil free approval

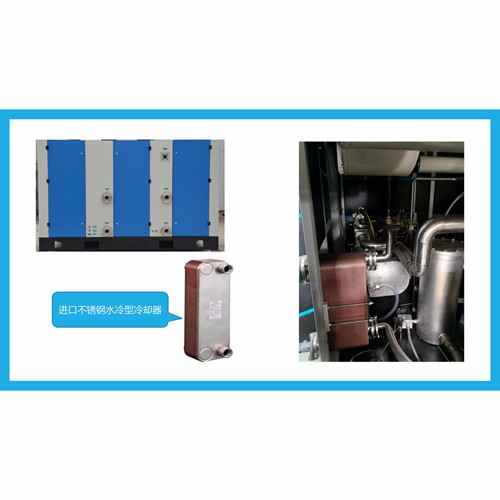

Cooling way		water cooling
Water connection pip
Water consumption		50Ton/hr
Water temperature		≦32℃
Noize		72dB(A)
Dimension L×W×H		2760×2250×1690mm
Whole weight		3950kg
Discharge pipe		DN40
Electrical power		3PH/380V/50HZ
Equipment working temperature		1℃～40℃
