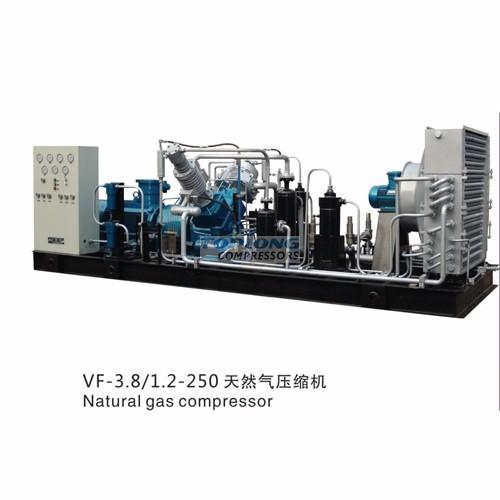

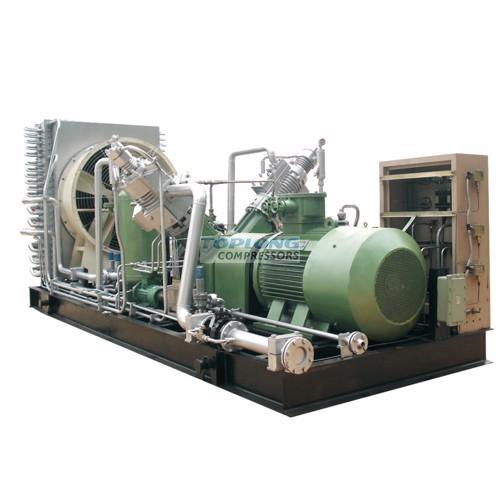

25Mpa high pressure cng compressor for bottle filling

  • Denominazione iupac：vf-3.8/1.2-250
  • heavy duty working
  • portable design
  • 45-60days ETD
  • compact design
    • 25Mpa high pressure cng compressor for bottle filling
    Inchiesta Online Invia Email

    descrizione

    25Mpa high pressure cng compressor for bottle filling:

    The main equipment of the cng compressor 25mpa for bottle filling is composed of a compressor unit, a metering device, a gas purifying and drying device, a gas storage device, a charging sequence control plate, a gas filling column, and a gas selling machine. According to the different functions, it can be divided into three types: standard station, gas station and gas station. The standard station directly takes gas from the gas pipeline network. After a series of processes such as pretreatment system, compression and storage, it sells gas. Machine to refuel the car


    In addition to the function of the standard station, the CNG refueling station also charges the compressed natural gas into the high-pressure gas transport semi-trailer (semi-trailer) through the air-filling column located in the station, and transports it to the refueling sub-station to refuel the car. At the same time, as an effective supplement to pipeline gas transmission, in small and medium-sized cities far from the natural gas pipeline, semi-trailer can be used to transport compressed natural gas to the city by road transportation, after pressure-adjusting into the gas pipeline network, to residents and others. Gas users supply gas.
    The CNG refueling station receives the compressed natural gas from the refueling mother station in the place where the natural gas pipeline network has not arrived, and refills the vehicle through the gas-selling machine through the process of storage and compression.

    Structure introduction

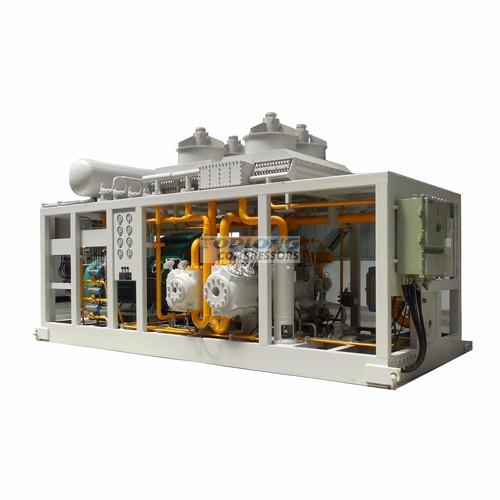

    25Mpa bottle filling cng compressor is a reciprocating piston type. It can be divided into two types: basic and non-basic. The whole machine is mainly composed of fixed part and moving part. The fixed part is composed of a fuselage, a middle body, a cylinder head, a cylinder, a cylinder block and the like. The moving part is composed of a crankshaft, a connecting rod, a crosshead, a piston, a gas valve and the like, and is equipped with a pipe and an instrument operating system. The system compressor is equipped with a purification device that can provide users with purified high-pressure natural gas. The equipment can be made into a bare-mounted, skid-mounted or soundproofed cabin.

    Compressor performance description
    The company's introduction of Austrian LMF company, Germany Mannesmann Demag technology, product reliability. The wearing parts such as gas valve and piston ring are made by Austrian HOERBIGER products and have a service life of more than 8000 hours.
    Soft start allows the compressor to start and stop frequently. Wide range of air intake, wide range of adaptation.
    The overall armor structure, low noise, easy installation in the city, saving investment.
    Siemens PLC control system, high degree of automation.
    Air cooling and water cooling can be selected.
    Gas filling station compressor features:
    1. Import range: 3.0~20.0MPa
    2. Processing capacity 400Nm@/h~2200Nm@/h
    3, the basic components are introduced to Germany Demag V series production license manufacturing
    4, using the first domestic segmented air intake design technology
    5, full air cooling structure
    6, neatly armored, with soundproof casing, noise 75@bd (A)

    7, fully automatic intelligent control, can achieve unattended

    25Mpa high pressure cng compressor for bottle filling compressor technical data as follows

    S/N Compressor model Suction pressure Discharge pressure Compressor flow rate Motor power memo
    (Mpa) (Mpa) (Nm.h) (kw)
    38 W-1.1/(12-16)-250 1 .2-1.6 25 858-1530 160
    39 VF-2/(10 -16) — 250 1.0-1.6 25 1320-2000 280
    40 WF-2/1 6-250 1 .6 25 2000 280
    41 V-2/(16-20)-250 1.6-2.0 25 2000-2500 315
    42 W-1.43/20-210 2 25 1460-1800 200
    43 V-0.7/22-210 2.2 25 960 132
    44 W-1.0/(16-25)-250 1.6-2.5 25 1020-1800 185
    45 W-1.05/40-250 4 25 2580 250
    46 VF-1/(25-40)-250 2.5-4.0 25 1560-2460 220-8
    47 VF-3.2/0-5)-250 0.3-0.5 25 768-1152 220
    48 V-1.8/(18-23)-210 1.8-2.3 25 2050-2590 280
    49 VF-2.5/3-210 0.3 21 600 132
    50 W-1.6/16-250 1.6 25 1632 185
    51 WF-2/(12-16)-250 1.2-1.6 25 1560-2040 250
    52 WF-2/12-210 1.2 21 1 560 220
    53 WF-0.37/(105-120)-210 10.5-12 21 2350-2686 75
    54 W-1.6/(7-1 2)-210 0.7-1.2 21 768-1248 1 10
    55 W-1.43/20-250 2 25 1802 220
    56 W-1.1/(10-16)-250 1.0-1.6 25 726-1122 160
    57 W-4/3-250 0.3 25 960 200
    58 W-3.6/1-250 0.1 25 432 1 10
    59 W-4.75/1 -250 0.1 25 570 132
    60 W-3.6/3-250 0.3 25 864 185
    61 W-5.6/0.5-250 0.05 25 504 160
    62 W-7.5/2-250 0.2 25 1300 280
    63 VF-0.1 1/(70-200)-250 7月20日 25 468-1326 30
    64 VF-2.5/(0.8-1.6)-250 0.08-0.16 25 270-390 90
    65 VF-2/(2-3)-250 0.2-0.3 25 360-480 1 10
    66 VF-1,1/(5-6)-250 0.5-0.6 25 396-462 90
    67 VF-0.54/30-250 3 25 1004 1 10
    68 VF-0.8/30-250 3 25 1488 160
    69 VF-0.28/(40-80)-250 4.0-8.0 25 688-1360 90
    70 VFD-0.1 1/(20-200)-250 2.0-20 25 300 30 Soundproof cabin
    71 VFD-0.12/(20-200)-250 2.0-20 25 400 30 Soundproof cabin
    72 VFD-0.15/(20-200)-250 2.0-20 25 500 45 Soundproof cabin
    73 VFD-0.16/(20-200)-250 2.0-20 25 600 55 Soundproof cabin
    74 VFD-0.28/(20-200)-250 2.0-20 25 525-1430 75 Soundproof cabin
    75 VFD-0.32/(20-200)-250 2.0-20 25 600-1700 90 Soundproof cabin
    76 VFD-0.36/(20-200)-250 2.0-20 25 680-2210 1 10 Soundproof cabin
