PRPDECTS DETAILS
Working Principle
No matter how far your gas using point is, no matter how bad natural environment is, no matter whether there is water & power supply or not, ZHONGRUI container type movable oxygen generating system can supply professional solutions for your required on-site oxygen.
1) Air compressor: electric drive or generator drive, air cooled screw air compressor.
2) Air purification system: with air buffer tank, air dryer and filters, etc.
3) PSA oxygen generator: with adsorption towers, control system, etc.
4) Oxygen booster: can rise oxygen pressure up to 150bar.
5) Cylinder refilling system (optional): with manifold and oxygen cylinders.
Application Fields of Container Oxygen Generator
1)Electric steelmaking: decarburization, combustion-supporting heating, foam slag, metallurgical control and subsequent heating.
2)Sewage treatment: oxygen-enriched aeration for activated sludge, ponds oxygenation and ozone sterilization.
3)Glass melting: combustion-supporting dissolution, cutting to increase yield and extend the service life of stoves.
4)Pulp bleaching and paper making: changing chlorinated bleaching to oxygen-enriched bleaching with low cost, sewage treatment.
5)Non-ferrous metal metallurgy: oxygen-enriched smelting of steel, zinc, nickel, lead, etc. PSA technology is gradually taking the place of cryogenic technology.
6)Petrochemical and chemical industry: increasing the reaction speed and chemical production output by adopting oxygen-enriched oxidizing reaction.
7)Ore treatment: use oxygen in gold, etc. production process, to improve precious metal extraction efficiency.
8)Aquaculture: increasing dissolved oxygen in water by oxygen-enriched aeration to vastly improve fish yield, also can use oxygen when transport live fish.
9)Fermentation: replacing air with oxygen in fermentation to drastically improve efficiency.
10)Drinking water: providing oxygen to ozone generator for sterilization.
11)Medical industry: oxygen bar, oxygen therapy, physical health care, etc.
Technical Parameters
Oxygen Capacity: 1-100Nm³/hr (20 ℃, 101.325Kpa)
Oxygen Purity: 93±3%
Pressure Dew-point: ≤-40 ℃ (can custom-made)
Oxygen Pressure: 0.1-0.5Mpa (can custom-made higher pressure)
Remark: More models and specifications please contact us.
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
Working Principle
No matter how far your gas using point is, no matter how bad natural environment is, no matter whether there is water & power supply or not, ZHONGRUI container type movable oxygen generating system can supply professional solutions for your required on-site oxygen.

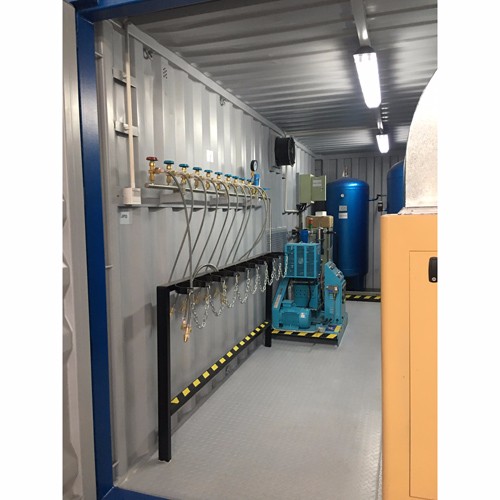

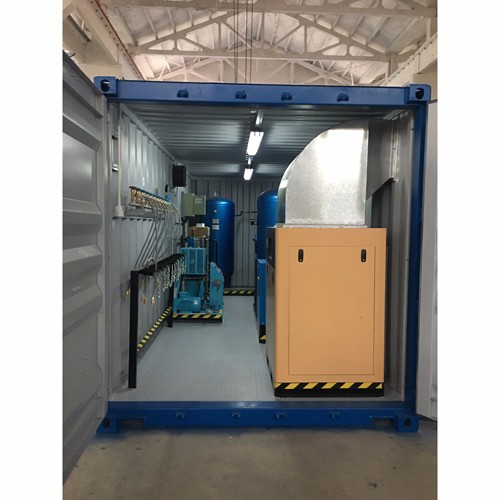

our container type oxygen generating system can be viewed as a mobile oxygen-making center, to provide oxygen and cylinder refilling continuously for different working sites.

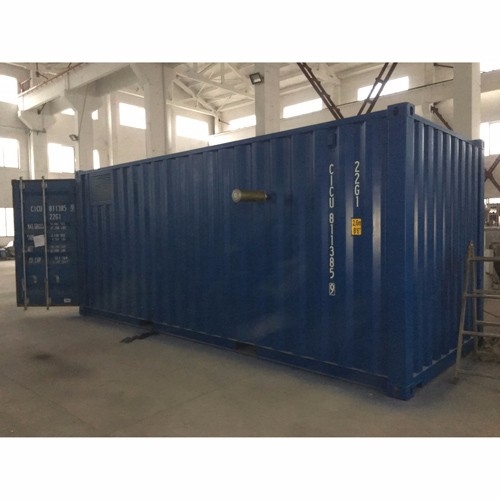

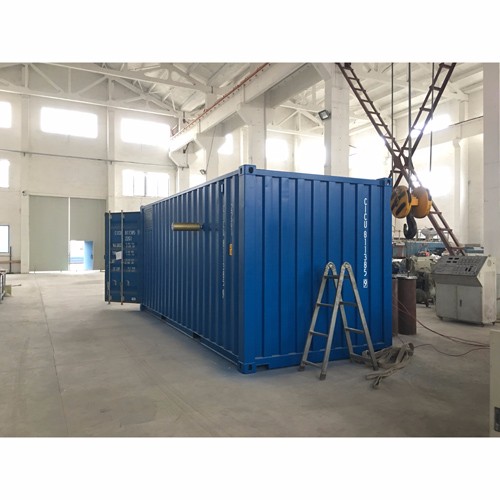

Container type movable Psa oxygen generator
System Composition1) Air compressor: electric drive or generator drive, air cooled screw air compressor.
2) Air purification system: with air buffer tank, air dryer and filters, etc.
3) PSA oxygen generator: with adsorption towers, control system, etc.
4) Oxygen booster: can rise oxygen pressure up to 150bar.
5) Cylinder refilling system (optional): with manifold and oxygen cylinders.
Application Fields of Container Oxygen Generator
1)Electric steelmaking: decarburization, combustion-supporting heating, foam slag, metallurgical control and subsequent heating.
2)Sewage treatment: oxygen-enriched aeration for activated sludge, ponds oxygenation and ozone sterilization.
3)Glass melting: combustion-supporting dissolution, cutting to increase yield and extend the service life of stoves.
4)Pulp bleaching and paper making: changing chlorinated bleaching to oxygen-enriched bleaching with low cost, sewage treatment.
5)Non-ferrous metal metallurgy: oxygen-enriched smelting of steel, zinc, nickel, lead, etc. PSA technology is gradually taking the place of cryogenic technology.
6)Petrochemical and chemical industry: increasing the reaction speed and chemical production output by adopting oxygen-enriched oxidizing reaction.
7)Ore treatment: use oxygen in gold, etc. production process, to improve precious metal extraction efficiency.
8)Aquaculture: increasing dissolved oxygen in water by oxygen-enriched aeration to vastly improve fish yield, also can use oxygen when transport live fish.
9)Fermentation: replacing air with oxygen in fermentation to drastically improve efficiency.
10)Drinking water: providing oxygen to ozone generator for sterilization.
11)Medical industry: oxygen bar, oxygen therapy, physical health care, etc.
Technical Parameters
Oxygen Capacity: 1-100Nm³/hr (20 ℃, 101.325Kpa)
Oxygen Purity: 93±3%
Pressure Dew-point: ≤-40 ℃ (can custom-made)
Oxygen Pressure: 0.1-0.5Mpa (can custom-made higher pressure)
Remark: More models and specifications please contact us.
Here is parts of psa oxygen generator technical data ,and normally for one stage oxygen generator ,purity is 93%-95% ,and for two stage oxygen generator
purity can up to 98% ,but relavant cost is almost double time than 93%
Model
Capacity (Nm3/h)
Purity (%)
Dimensions(mm) LxWxH
Model
Capacity (Nm3/h)
Purity (%)
Dimensions(mm) LxWxH
ZO-3
3
90-95
1200X1200X1800
ZO-3
3
97±1
5500X1200X2000
ZO-5
5
90-95
1200X1200X2000
ZO-5
5
97±1
6000X1500X2150
ZO-10
10
90-95
1600X1500X2150
ZO-10
10
97±1
7000X1700X2550
ZO-20
20
90-95
1800X1700X2550
ZO-20
20
97±1
7500X1700X2600
ZO-30
30
90-95
1900X1700X2600
ZO-30
30
97±1
8000X1900X2750
ZO-50
50
90-95
2100X2000X2750
ZO-50
50
97±1
8500X2000X3200
ZO-100
100
90-95
5500X1550X3200
ZO-60
60
97±1
9500X2100X3200
ZO-150
150
90-95
6000X1800X3500
ZO-80
80
97±1
12000X2200X3200
ZO-200
200
90-95
6600X2000X3700
ZO-100
100
97±1
15000X2600X3500
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
