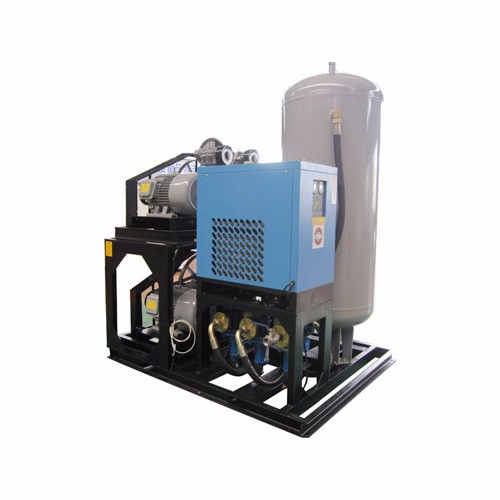

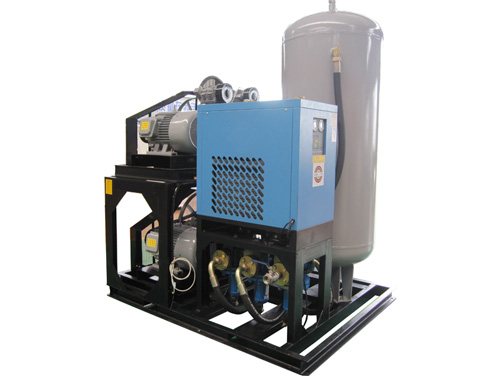

Oil lubricated Pet bottle blowing air compressor SH-3.5/30

Product Item：SH-3.5/30

oil free compressor

slow speed

low maintenance cost

reliable quality performance

Description

PET air compressor
-PET air compressor is named as PET START specially designed for PET blow moulding machine;
-The compressors are named as PET STAR for PET blowing molding machine ;
-The compressor delivers outstanding quality under all weather conditions;
-An automatic unload system ensures that the system starts safely without residual pressure. This feature protects both frame and motor and so extends the working life of all components ;
We provide top quality and cost performance bottle blowing air compressor for your business
This model is 30bar compressor, two stage air compressor, With/without unloading function;

Model	SH-3.5/30
Power(Hp,Kw)	25×2,18.5×2
Working Pressure(Bar,Psi)	30,430
Air Delivery(L/min,CFM)	3,500,124
Cylinder(diameter × piece)	Ф120×3,Ф65×1;Ф120×3,Ф65×1
Speed(r.p.m)	850
Air dryer	R22
Tank(L)	500/1000/2000
Net Weight(Kgs)	2000
Meas(L×W×H ,Cm)	200×163×260
