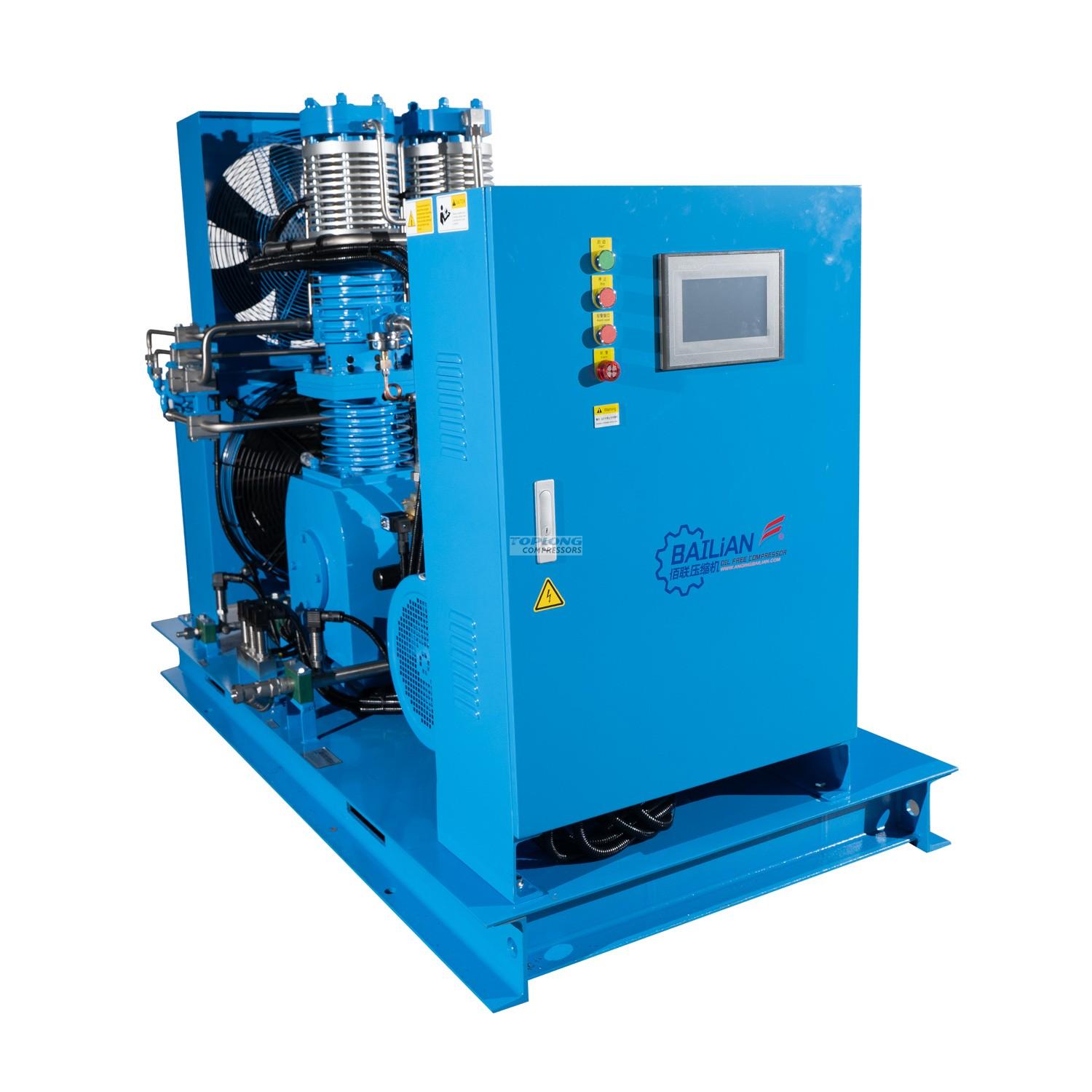

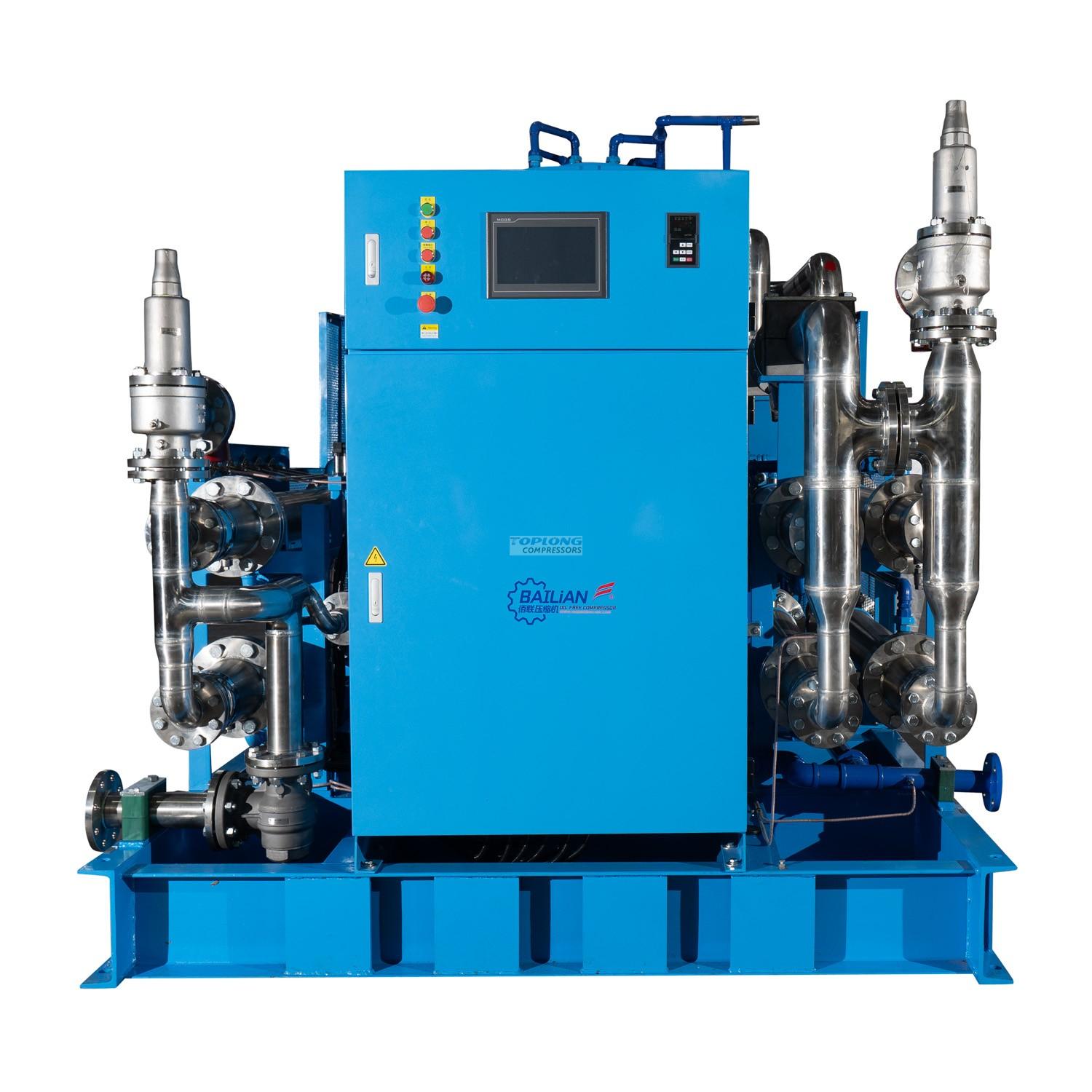

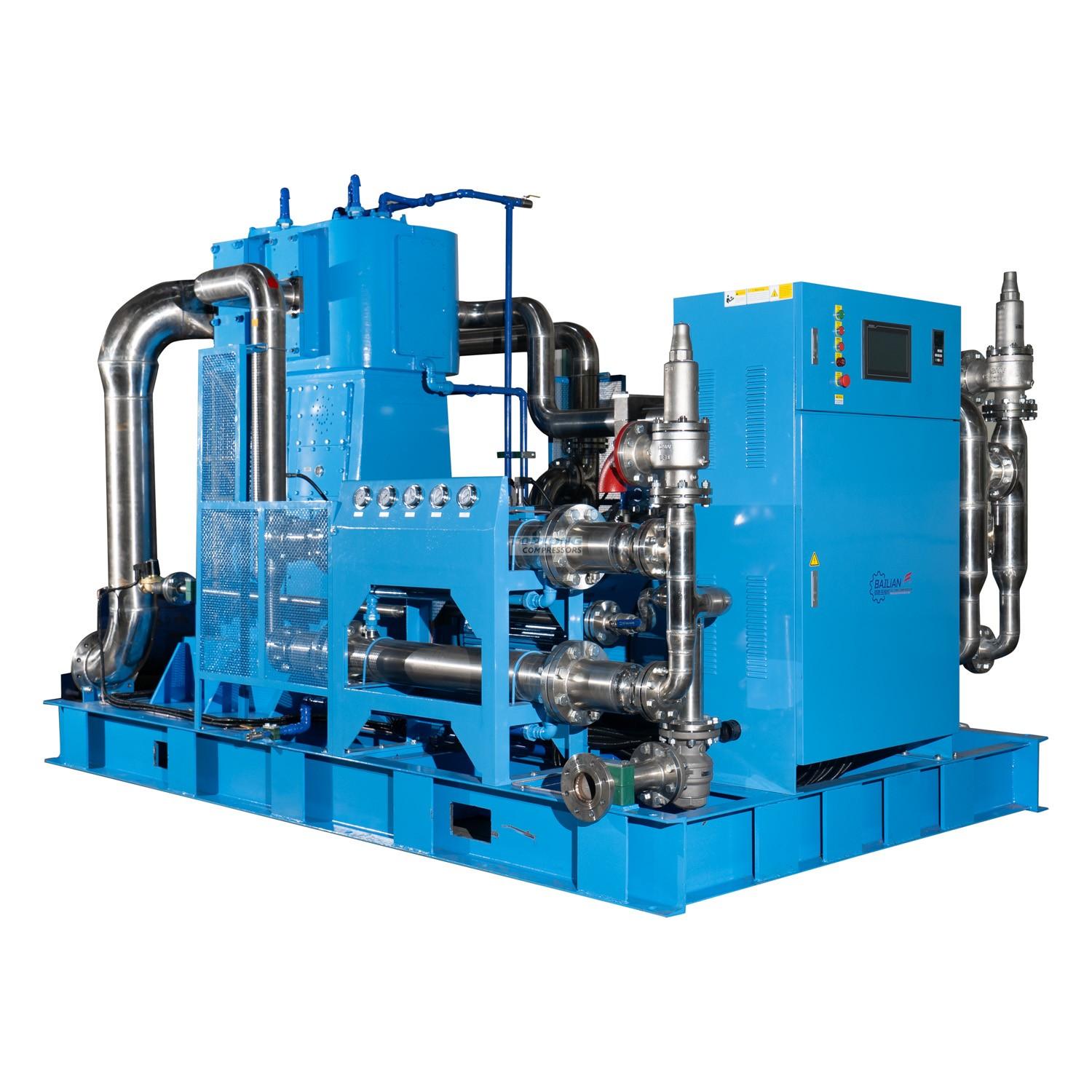

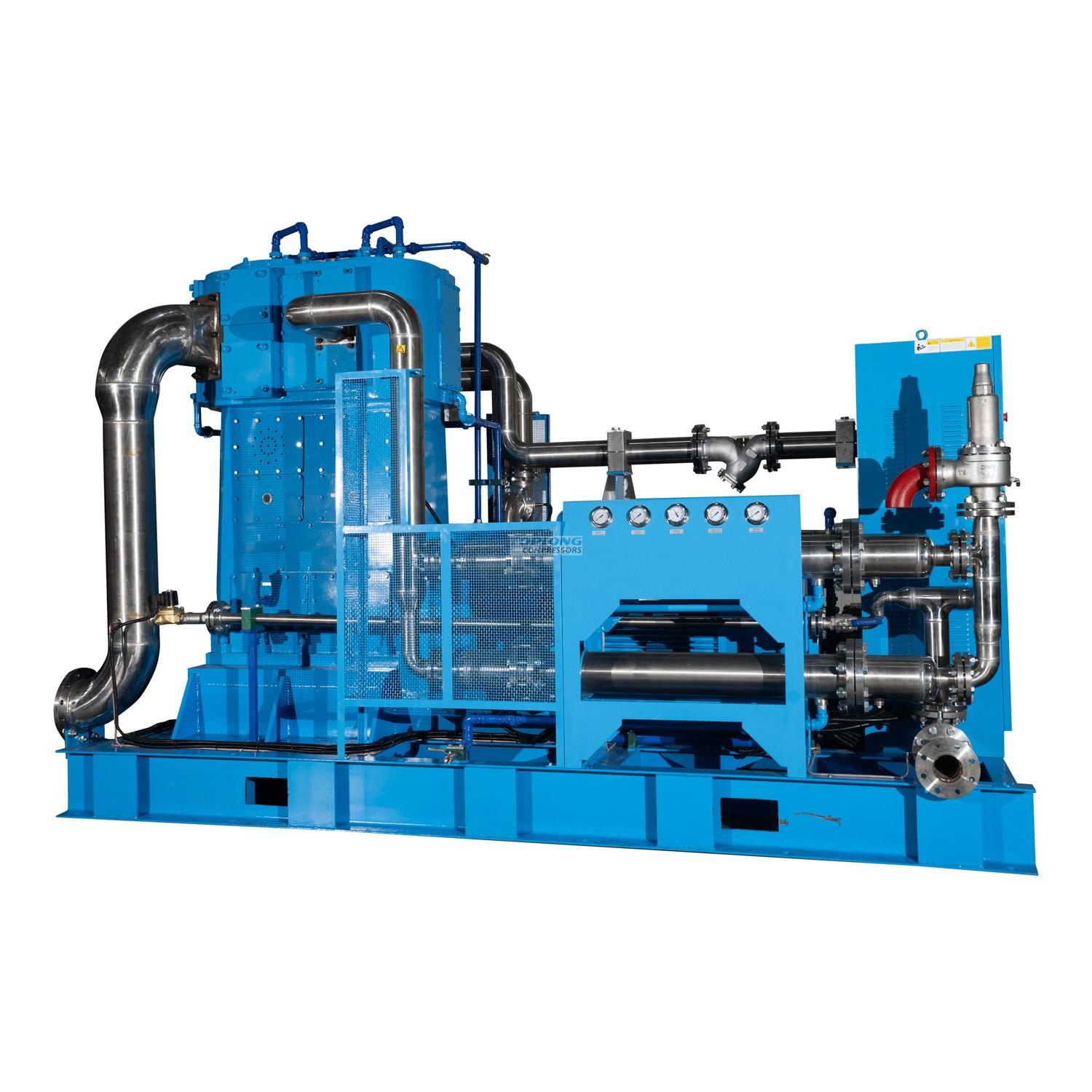

1100nm3 Oxygen Compressor Zowy-1067/0.05-4

Project and parameters

Medium

Oxygen

Quantity

1

Inter pressure MPa(G)

Micro positive pressure

Inlet temperature ºC

0~35

Discharge pressure Mpa(G)

0.4

Discharge temperature (After cooling) ºC

≤55

Volume flow Nm3/h

1067

Piston stroke mm

180

Model

ZOWY-1067/0.05-4

Compressed series

2

Structural type

Reciprocating piston vertical skid type

Number of cylinders

2

Speed of crankshaft r/min

415

Voltage V

380V50Hz

Cooling method

water-cooling

cooling water flow t/h

12

Shaft power KW

100

Motor speed r/min

425

Motor

132kw 380V 50Hz High efficiency permanent magnet motor

Outline dimension mmXmmXmm

L3700×W2200×H2400

Unit weight        t

7.0

Interface size   mm

Inlet air DN200 / exhaust air DN100 / cooling water DN50

Driving mode

direct connection

Material is partly in contact with the gas

Body, slide

cast iron

Piston ring, filler

filled polytetrafluoroethylene

Gas valve, cylinder head

stainless steel

Scope of supply

Main engine, motor, cooler, oil pump, skid-mounted chassis, start cabinet, air intake filter, primary instrument and control components, safety valve, special tools, import and export matching flange, random documents, etc.

Other matters needing attention

1,Overflow parts ban oil; PLC automatic control;

2,Self by lubricating oil users (low temperature lubricating oil when the ambient temperature is lower than 5ºC);

3,The compressor does not have a buffer tank;

4, Column data is for user reference

Standard configuration:

1,Motor (Luv-electric or equivalent)

2,Safety valve (Zhejiang Wanneng)

3,Solenoid valve (Zhejiang Sanlixin)

4,Pressure gauge (Nanjing Zhipu or equivalent)

5,Pressure controller / pressure transmitter (Changzhou Tianli)

6,Electrical components (Chnt)

7,Thermal power resistance (Shanghai Gekun)

8,PLC(Siemens)

9,Touch screen (Kunlun Tongtai)

Delivery time

Contract signing, 100 working days after the advance payment to the account
