3. Описание
PSA ( Pressure Swing Adsorption) Technology a revolution in Non Cryogenic Air Separation and Oxygen Generation Technology uses special grade of ZMS ( Zeolite Molecular Sieve).
Burning process (glass craft, ampoule making, thermal power) Enhances burning efficiency
Ozone generation Raw material to make O3
Waste water disposal Oxidization of waste content
Aquaculture Oxygen enriched water improves life of fishes
Fermentation Better atmosphere for fermentation
Diving, mountaineering, For breathing
High-altitude flight, interplanetary flight, civil aviation For breathing
Cutting, welding Burns to produce heat
Engineering Blasting To make liquid oxygen explosive
Metallurgy Ironmaking, steelmaking
Oxygen enriching Bar, meeting room, office, dorm, homes
Mining Reacts with minerals to increase separation rate
Chemical engineering To make vitriol, nitric acid, etc.
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.

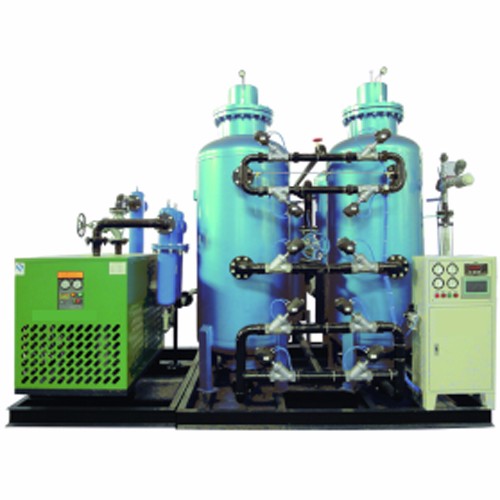

The compressed air is passed through a Twin Tower PSA module interconnected with automatic change over valves. After passing through a Refrigerated Dryer air gets dried. Dried compressed air will now come in contact with bed of Zeolite molecular sieves (ZMS). Zeolite Molecular Sieves are special grade of adsorbent which have the property of preferential adsorption of nitrogen molecules. At a time one tower remains under nitrogen production cycle, whereas the other tower undergoes regeneration which is achieved through depressurization of the tower to atmospheric pressure. The outgoing oxygen gas is sent to a surge vessel where the minimum pressure will be maintained with the help of Back pressure Regulator.
Flow chart
Application
Hospital Medical oxygen for breathBurning process (glass craft, ampoule making, thermal power) Enhances burning efficiency
Ozone generation Raw material to make O3
Waste water disposal Oxidization of waste content
Aquaculture Oxygen enriched water improves life of fishes
Fermentation Better atmosphere for fermentation
Diving, mountaineering, For breathing
High-altitude flight, interplanetary flight, civil aviation For breathing
Cutting, welding Burns to produce heat
Engineering Blasting To make liquid oxygen explosive
Metallurgy Ironmaking, steelmaking
Oxygen enriching Bar, meeting room, office, dorm, homes
Mining Reacts with minerals to increase separation rate
Chemical engineering To make vitriol, nitric acid, etc.
Paper and pulp Pulp bleaching
Here is parts of psa oxygen generator technical data ,and normally for one stage oxygen generator ,purity is 93%-95% ,and for two stage oxygen generator
purity can up to 98% ,but relavant cost is almost double time than 93%
Model
Capacity (Nm3/h)
Purity (%)
Dimensions(mm) LxWxH
Model
Capacity (Nm3/h)
Purity (%)
Dimensions(mm) LxWxH
ZO-3
3
90-95
1200X1200X1800
ZO-3
3
97±1
5500X1200X2000
ZO-5
5
90-95
1200X1200X2000
ZO-5
5
97±1
6000X1500X2150
ZO-10
10
90-95
1600X1500X2150
ZO-10
10
97±1
7000X1700X2550
ZO-20
20
90-95
1800X1700X2550
ZO-20
20
97±1
7500X1700X2600
ZO-30
30
90-95
1900X1700X2600
ZO-30
30
97±1
8000X1900X2750
ZO-50
50
90-95
2100X2000X2750
ZO-50
50
97±1
8500X2000X3200
ZO-100
100
90-95
5500X1550X3200
ZO-60
60
97±1
9500X2100X3200
ZO-150
150
90-95
6000X1800X3500
ZO-80
80
97±1
12000X2200X3200
ZO-200
200
90-95
6600X2000X3700
ZO-100
100
97±1
15000X2600X3500
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
