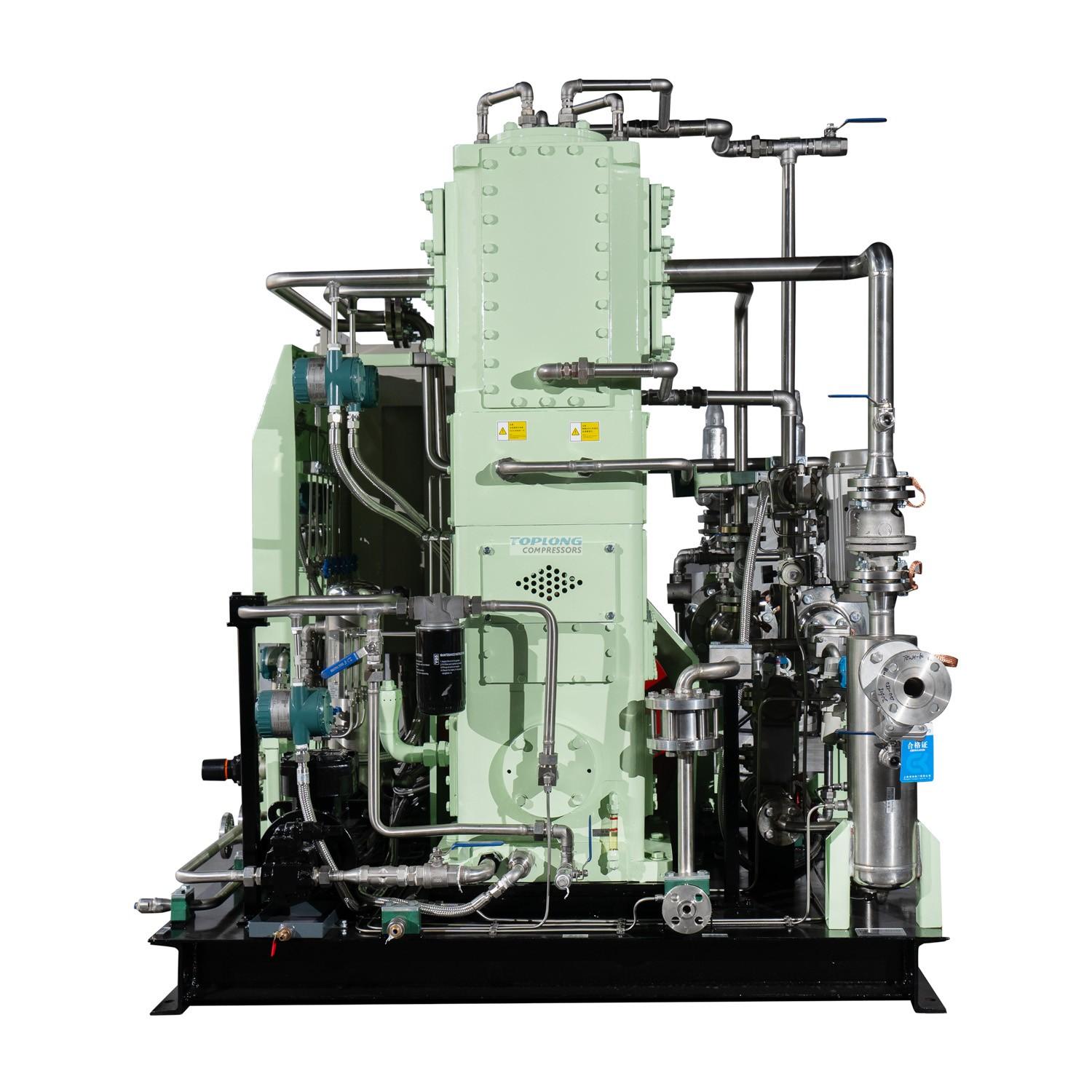

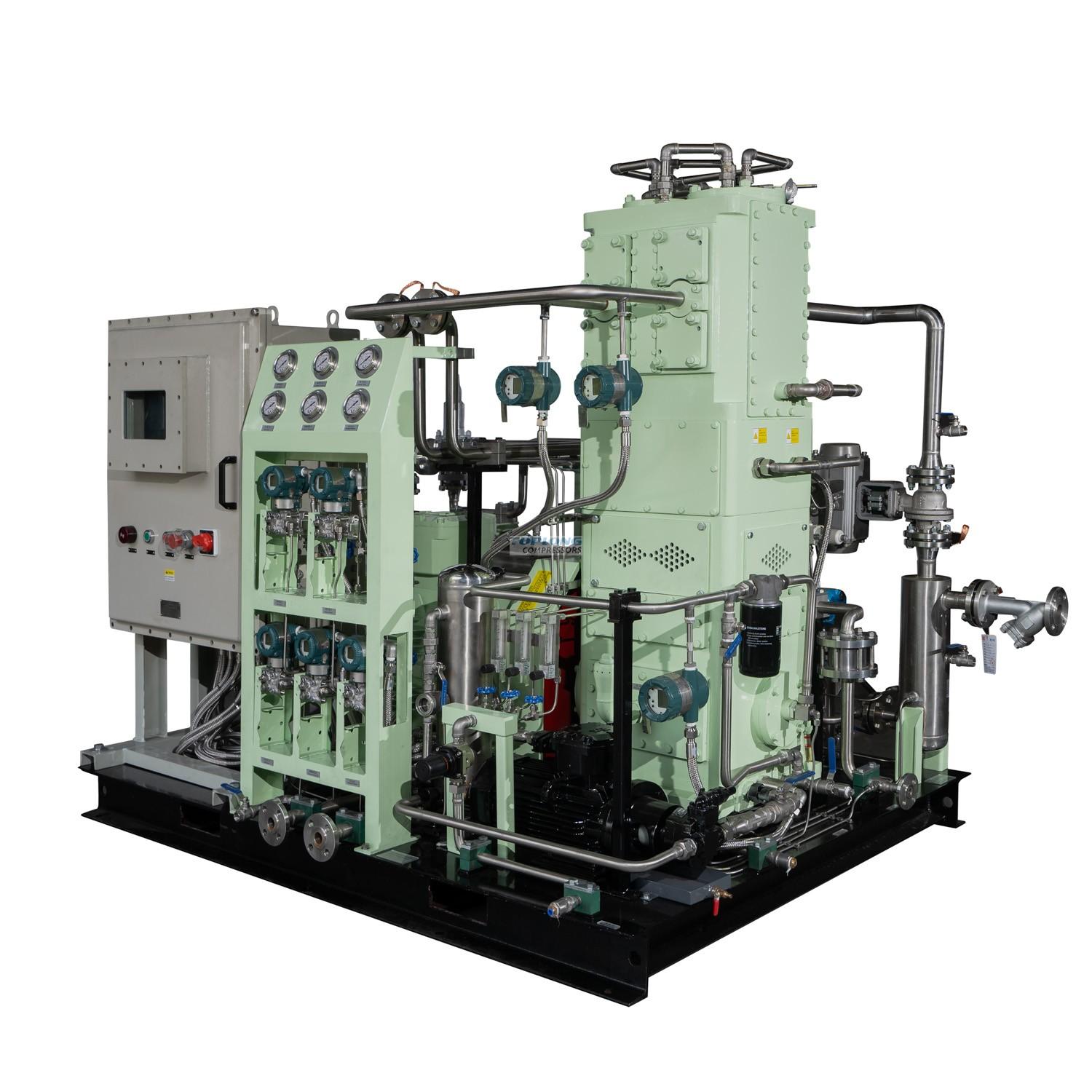

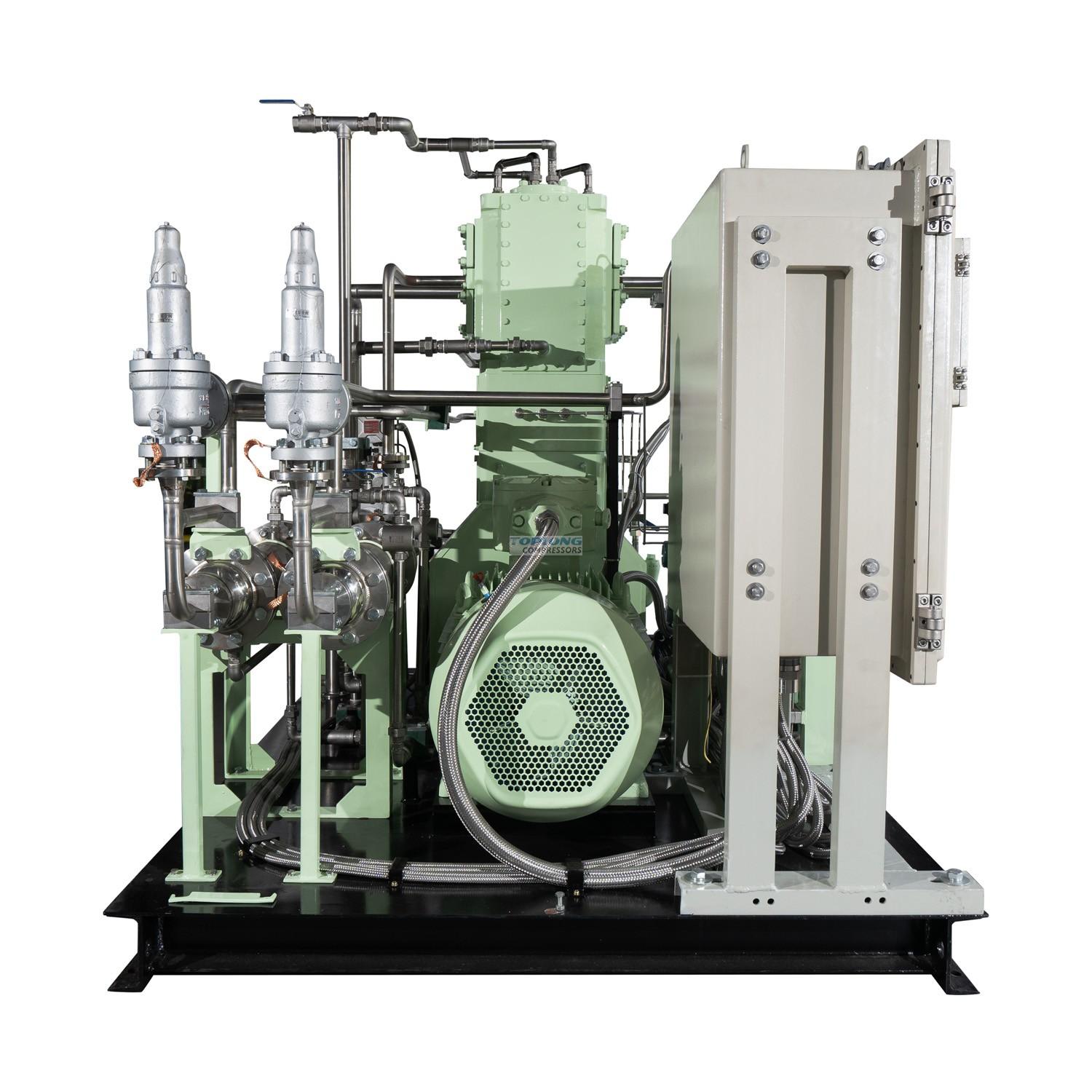

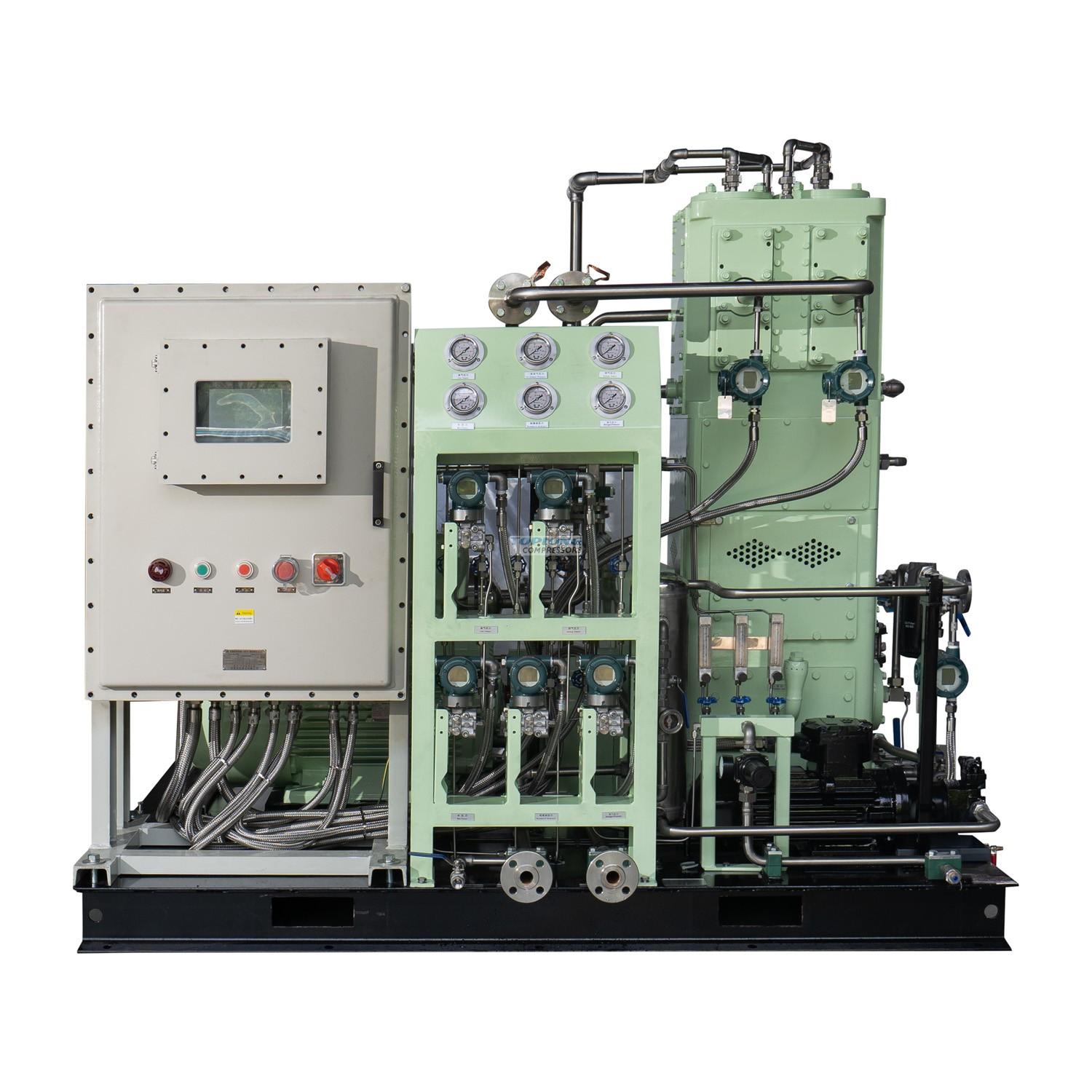

Oil Free C2HF3 Compressor TZWH-60/0.8-8

Project and parameters

Medium

Trifluoroethylene, hexafluoropropylene

Quantity

1

Inter pressure MPa(G)

0.08~0.4

Inlet temperature ºC

0~30

Discharge pressure Mpa(G)

0.8

Discharge temperature (After cooling) ºC

≤50ºC

Volume flow Nm3/h

60

(Inter pressure=0.08MPa)

Piston stroke mm

75

Model

TZWH-60/0.8-8

Compressed series

2

Structural type

Double column vertical

Number of cylinders

2

Speed of crankshaft r/min

485

Voltage V

380

Cooling method

water-cooling

cooling water flow t/h

0.3

Shaft power KW

≤8.5

Motor speed r/min

485

Motor

11kw-12pole 380V50Hz  dIIBT4

Outline dimension mmXmmXmm

2200*1500*1750

Unit weight      T

1.5

Entry / exit size   mm

Inter 11/2" Outer 11/2"

Water interface in and out

1"

Driving mode

Direct coupling

Material is partly in contact with the gas

Body, crankshaft

cast iron

Gas valve, pipe, and cooler

stainless steel

Piston ring, guide ring

filled polytetrafluoroethylene

Scope of supply

Main engine, motor, cooler, control cabinet, skid-mounted chassis, air intake filter, safety valve, outlet matching flange, random file, etc.

Other matters needing attention

1, Motor brand: Sianda. Motor energy efficiency grade:> 8 grade motor without energy efficiency grade division

2, The piston rod is sealed with nitrogen to provide nitrogen gas continuously.

3, Safety valve: Yongyi. Pneumatic ball valve: KOSO (Wuxi tooling)

4, Compressor containing liquid separator and stabilizer tank, compressor no pressure vessel.

5, Electrical and paint have special requirements.

Column data is for user reference
