3. Описание
Working Principle
PSA oxygen generator uses clean compressed air as raw material and zeolite molecular sieve (ZMS) as adsorbent, to produce oxygen gas with Pressure Swing Adsorption (PSA) technology in normal temperature. ZMS is round granular adsorbent full of micro pores inside and outside, which has characteristic of selective adsorption. N2 has higher diffusion rate while O2 has lower, therefore N2 is adsorbed into ZMS while O2 is out of it. With controlling on/off state of the pneumatic valves by PLC, adsorbing under pressure and regenerating without pressure, to separate nitrogen and oxygen gas, and create continuous flow of oxygen with require purity.

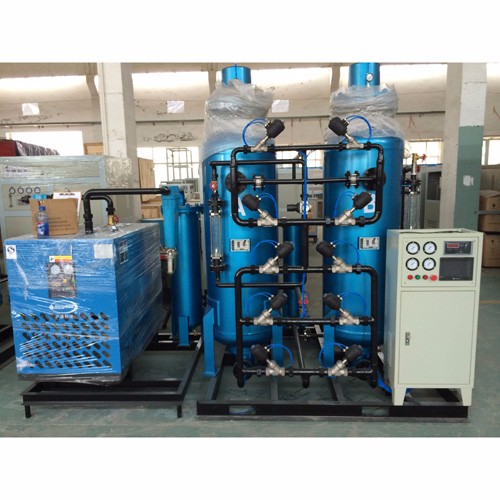

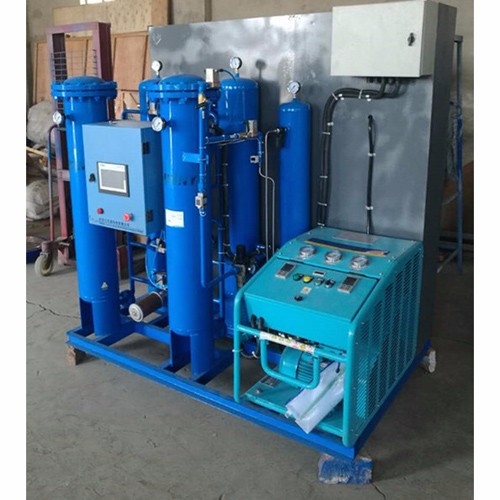

Psa Oxygen Generator For Ozone Generator
Here is parts of psa oxygen generator technical data ,and normally for one stage oxygen generator ,purity is 93%-95% ,and for two stage oxygen generator
purity can up to 98% ,but relavant cost is almost double time than 93%
|
Model |
O2 Capacity |
O2 Purity |
O2 Pressure |
Dimensions(mm) LxWxH |
|
ZO-10L |
10L/Min |
9O%-93% |
0.1-0.4Mpa |
590x570x1100 |
|
ZO-20L |
20L/Min |
90%-93% |
0.1-0.4Mpa |
590x570x1360 |
|
ZO-30L |
30L/Min |
9O%-93% |
0.1-0.4Mpa |
1300x1000x1600 |
|
ZO-40L |
40L/Min |
90%-93% |
0.1-0.4Mpa |
1300x1000x1600 |
|
ZO-50L |
50L/Min |
9O%-93% |
0.1-0.4Mpa |
1300x1000x1650 |
|
ZO-60L |
60L/Min |
90%-93% |
0.1-0.4Mpa |
1300x1000x1650 |
|
ZO-70L |
70L/Min |
9O%-93% |
0.1-0.4Mpa |
1400x1000x1800 |
|
ZO-80L |
80L/Min |
90%-93% |
0.1-0.4Mpa |
1400x1000x1800 |
|
ZO-100L |
1OOL/Min |
90%-93% |
0.1-0.4Mpa |
1580x1000x2000 |
Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) O2 Flow rate: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
