High pressure diesel engine air compressor

3. Описание

This image parameter, non-standard product
The products are provided with independent solutions according to the customer's requirements (flow/purity/pressure, use environment, main purpose and customer specific requirements), and are tailor-made for customers from design to product.
Product Usage
This series of air compressors can be divided into 1.S type 2.W type
1. It is suitable for oil field pressure test, sweeping line, gas lift, well drilling and other projects.
2. Used in gas tightness, air tightness test, pressure test, strength test, air tightness check, etc. of various high pressure vessels or pressure vessels such as gas cylinders, cylinders, valves, pipelines, pressure gauges, high pressure boilers, etc. use.
3. Sand blasting, rust removal, high-pressure phosphorus removal, anti-corrosion engineering, well drilling, mountain mining and quarrying.
Products are widely used in the process of supercharging, voltage regulation, power and purge
Product parameters
The range of S/W series displacement is less than or equal to 10m@/min, and the exhaust pressure is less than or equal to 25MPa. Allow buck use
Features
1.S/W series

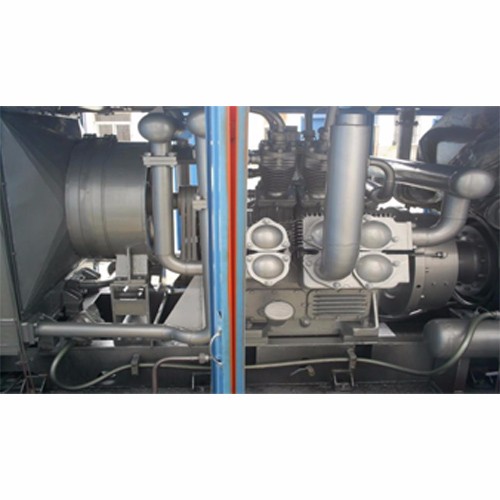

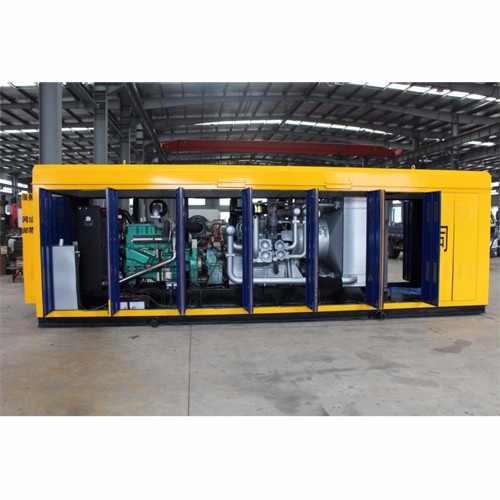

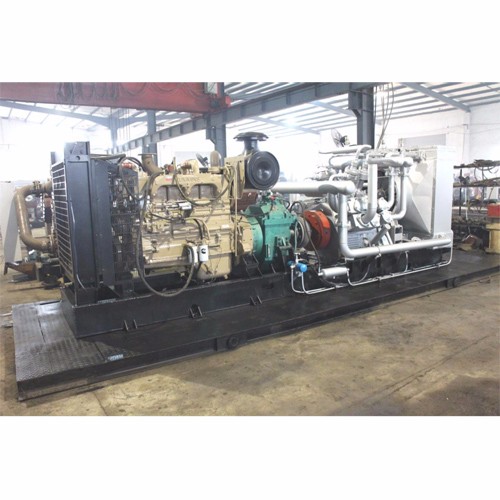

The series of skid-mounted compressors were introduced to Austria in the early 1990s for technical production with superior performance and high degree of automation. This series of products are piston compressors, which are composed of compressors, diesel engines (motors), clutches, piping systems, operating systems, electrical equipment and auxiliary equipment. According to user requirements, compressor opening, shutdown automation, sewage automation, compression post-processing system, and warehouse metal cover are available. In order to prevent rain, cold, sand and improve working conditions, the air compressor is also made of metal material to make protective compartments. The equipment has compact structure and convenient maintenance.
Drive mode
1. Diesel engine 2. Motor (according to actual needs)
Lubrication method
Oily
cooling method
Air cooled

high pressure air compressor part technical data as follows

Main technical parameters Ma in Techn i ca I Parameter
