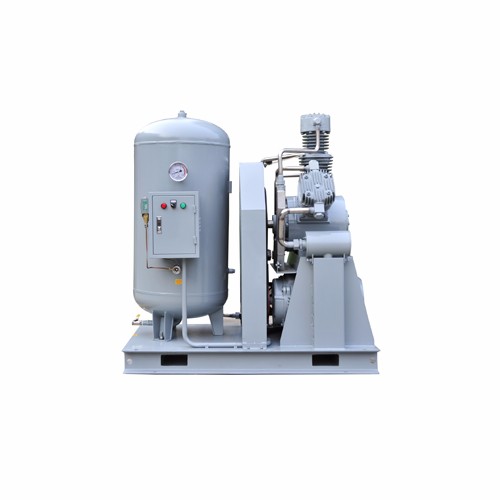

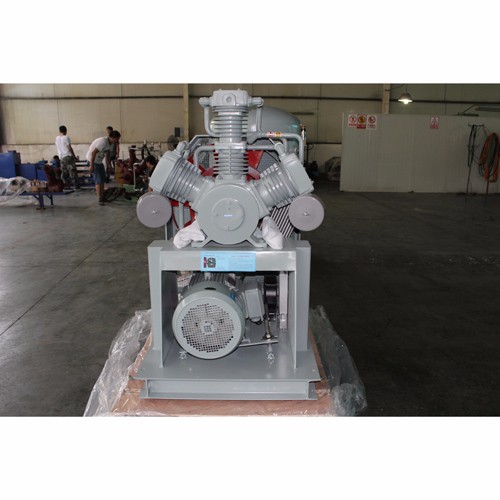

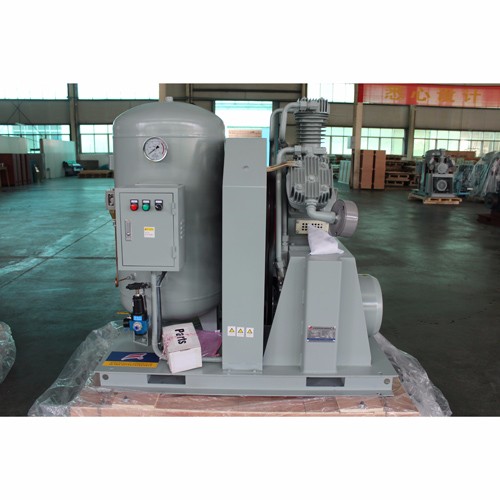

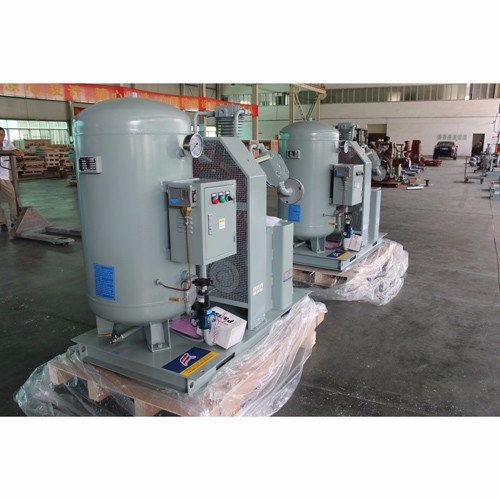

The PET air compressor is the main body in the air blower of the blow molding machine. It is a device that converts the mechanical energy of the prime mover (usually an electric motor) into gas pressure energy. It is a special blower for compressed air. Air pressure generating device. Blowing air compressors are divided into: low pressure blowing machine (15-25bar), medium pressure blowing machine (25-35bar), high pressure blowing machine (35-40bar).
There are many types of blown air compressors, which can be divided into piston compressors, screw compressors and centrifugal compressors according to the working principle. The working principle of the volumetric compressor is to compress the volume of gas, so that the density of gas molecules per unit volume is increased to increase the pressure of compressed air; the working principle of the screw compressor is twin-screw compression, so that the gas is in the cavity of the twin-screw compressor. The kinetic energy is converted into the pressure energy of the gas, thereby increasing the pressure of the compressed air. The centrifugal compressor uses the impeller to rotate at a high speed to convert the gas into gas kinetic energy under high-speed centrifugal conditions, thereby providing compressed air pressure.
|
S/N |
ITEMS |
TECHNICAL DATA |
|
|
1 |
Working medium |
AIR |
|
|
2 |
model |
DWW-1.0/14.5 |
|
|
3 |
Structure |
oil free reciprocating 3stage 3 cylinder |
|
|
4 |
Pressure stage |
3 |
|
|
5 |
Rated capacity(standard)m3 /min |
1 |
|
|
6 |
Rated inlet pressure bar(G) |
Atmosphere pressure |
|
|
7 |
Rated outlet pressure bar(G) |
14.5 |
|
|
8 |
Inlet temperature℃ |
≤40 |
|
|
9 |
Outlet temperature ℃ |
≤55 |
|
|
10 |
Transmit gas temperature℃ |
≤55 |
|
|
11 |
Shaft speed r/min |
660 ※ |
|
|
12 |
Cooling way |
Air cooling |
|
|
13 |
Lubricate way |
Shaft and connect rod |
Grease seal |
|
Cylinder |
Oil free |
||
|
|
Shaft power |
|
|
|
14 |
Motor power Kw |
11kw 380V 50Hz 3Ph ※ |
|
|
15 |
Transmit way |
Belt driven |
|
|
16 |
Installation way |
Simple basement |
|
|
17 |
Automatic control parts |
Overload ,stop automatic |
|
|
18 |
External diamension L×W×H mm |
1350*800*1320 ※ |
|
|
19 |
outlet mm |
DN25 |
|
|
20 |
Weight Kg |
450 ※ |
|
|
21 |
Voltage |
380v 50hz 3phase |
|
|
22 |
Delivery time |
35 days |
|
|
23 |
Working condition |
Heavy duty |
|
