الوصف

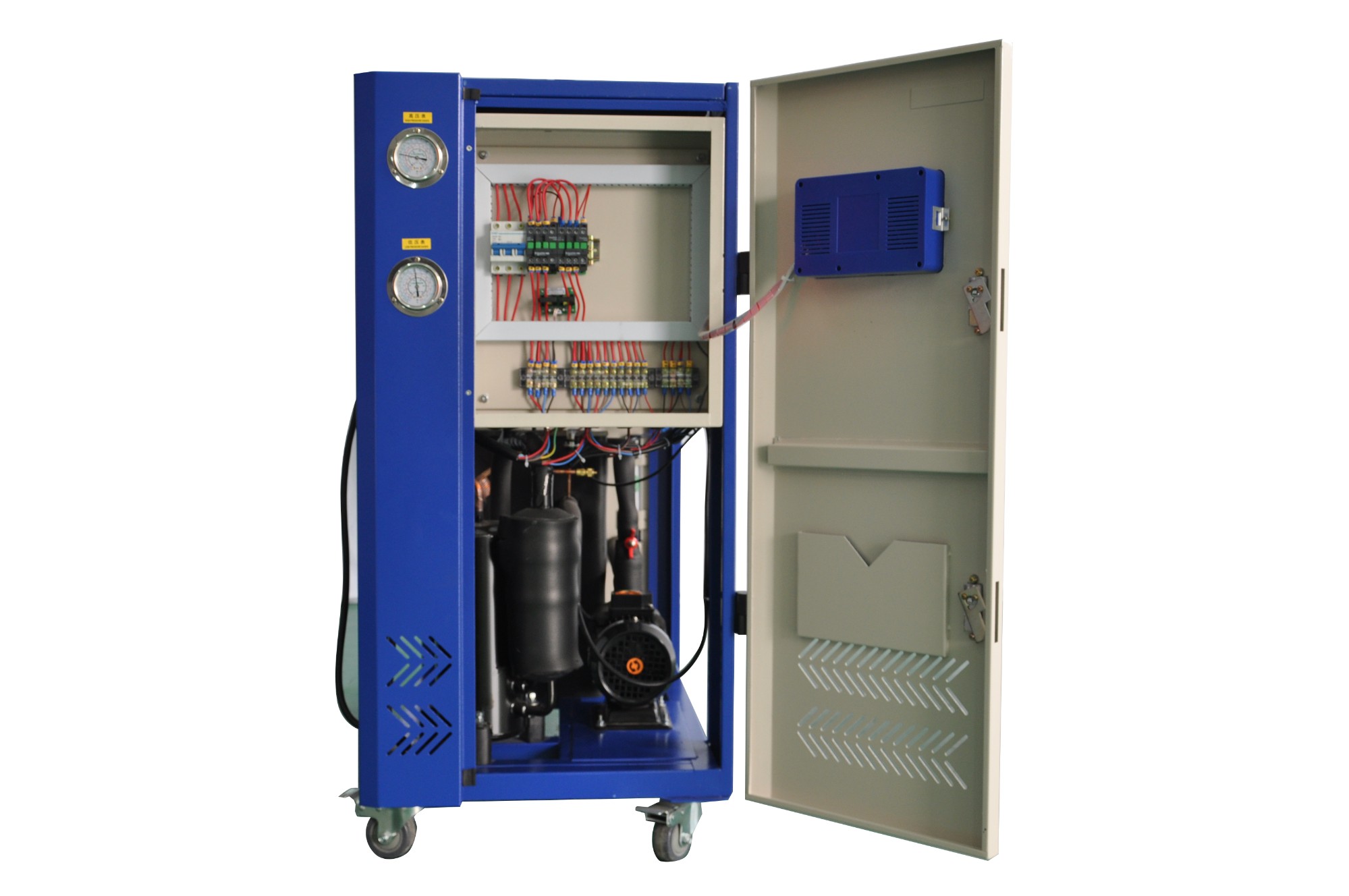

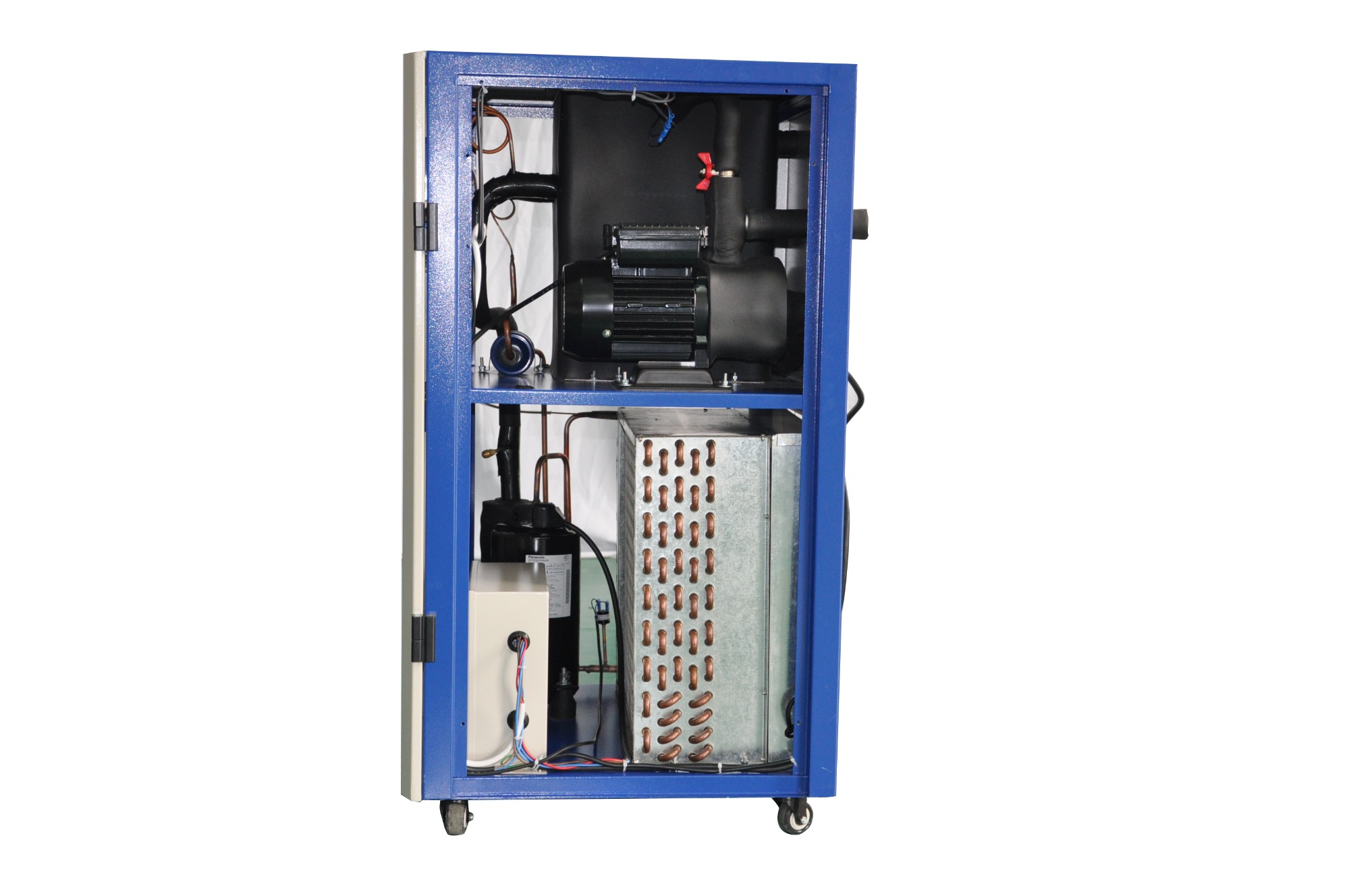

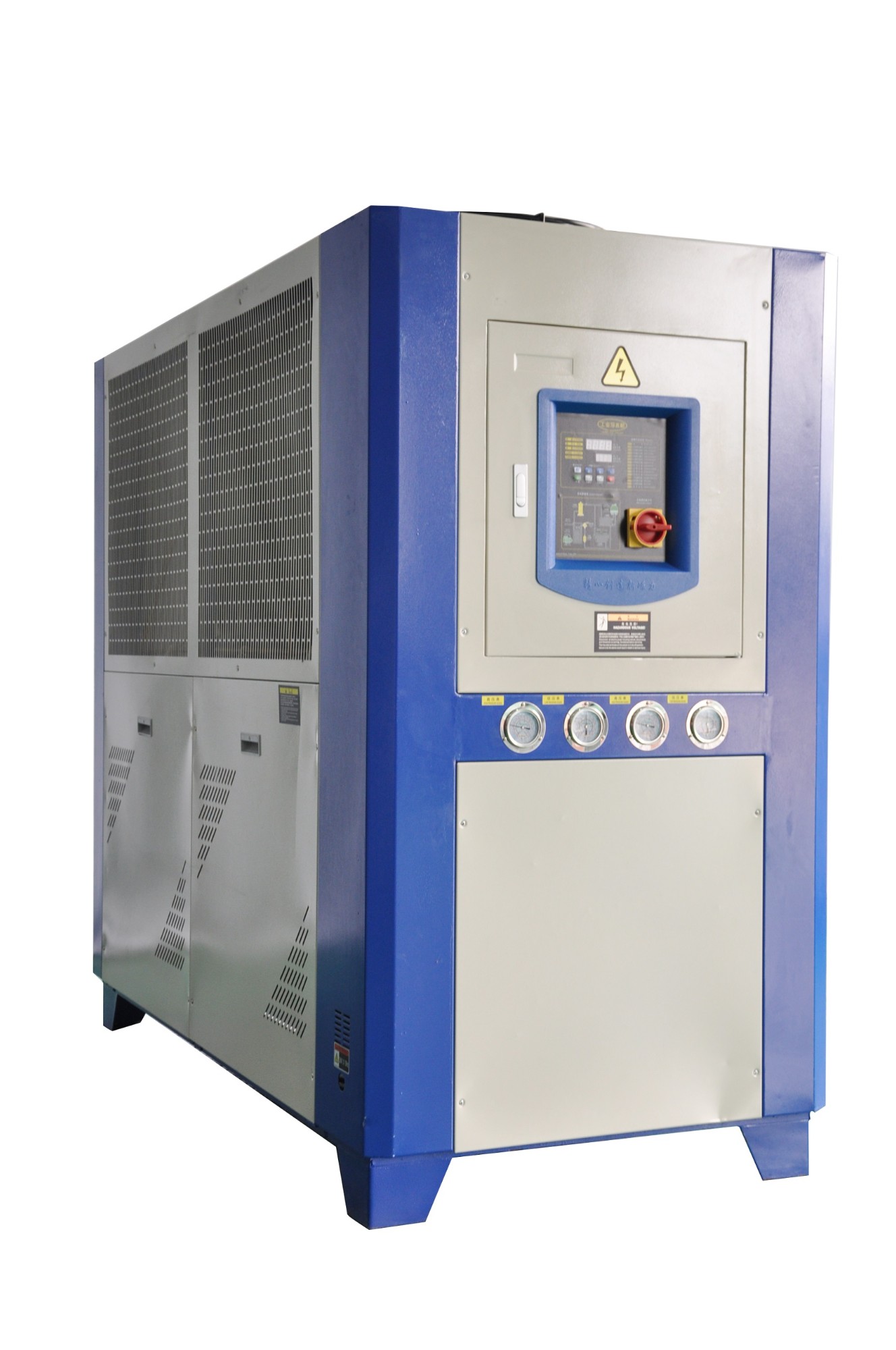

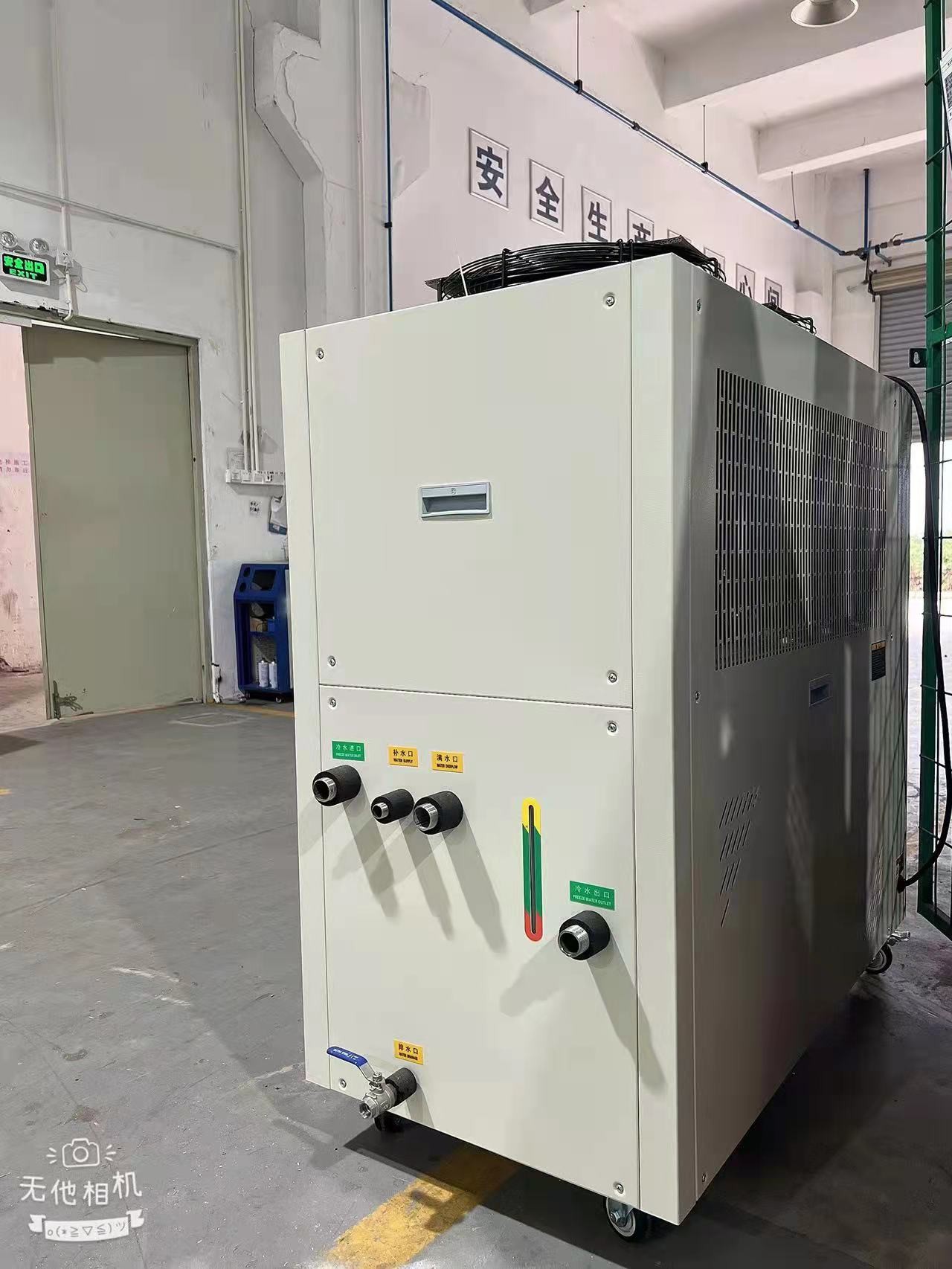

According to years of industry experience and constantly on the basis of optimization, produce a series of high quality chiller。Whole series of international famous brand,like Copeland,Turbocor, Panasonic, DAIKIN compression, including vortex, piston, screw, semi-closed, fully enclosed various types, machine supporting high quality and high efficiency copper tube fin, industrial stainless steel production condenser, evaporator, material highest grade can reach industrial food grade requirements. Electrical components are the world brands Siemens, Schneider, ABB,. Reliable quality, excellent quality.The chiller has the advantages of small volume, low noise, large energy, long life, simple operation and so on. A variety of refrigerants can be selected, in addition to R22 refrigerant, can also choose R134a, R407c and other environmental protection refrigerant, to meet the requirements of low temperature, special environment use. The chiller control part adopts high-precision host panel developed by Btu, PLC programmable controller, human-computer interface, all Chinese display. It can realize the whole process, automatic computer adjustment control, making the unit control more accurate and reliable.Our chiller is compact, small area, light weight and easy to carry.Safe operation balance, small vibration, do not need a complex foundation, simple installation.Automatic protection function of the unit: high and low voltage protection, compressor protection, motor overload, overheating protection, anti-freezing protection, cold water, cooling water break water protection, temperature sensing type easy to melt plug, safety valve.
Model
BCA-01
BCA-02
BCA-03
BCA-04
BCA-05
BCA-06
BCA-08
BCA-10
Cooling capacity
KW
2.7
5.4
8.5
11.9
15
18
21.5
30
103kcal/h
2.4
4.6
7.3
10.2
12.9
15.5
18.5
25.8
Power Supply
V/ph/Hz
220/1/50
380/3/50
Input Power
kw
1.34
2.19
3.19
4.73
5.23
6.13
7.76
10.54
Compressor Type
Rotor
Scroll
Compressor Power
kw
0.88
1.69
2.45
3.8
4.3
5.2
6.2
8.6
Pump Power
kw
0.37
0.37
0.55
0.55
0.55
0.55
1.1
1.1
Pump Head
m
20
20
20
20
20
20
20
20
Chilled Water Flow
m3/h
0.46
0.92
1.55
2
2.5
3.1
4
5
Evaporator Type
Water Tank Type/Stainless Steel Plate Type
Water Tank Volume
L
20
40
50
70
70
80
120
200
Pipe Size
DN
15
20
25
25
25
25
40
40
Condenser
Coil
Air Volume
m3/h
1500
2800
4000
6500
6800
7500
9300
12000
Fan power
W
90
130
190
380
380
380
460
840
Refrigerant
R22/R134a/R404
Throttle Mode
Capillary Tube/Expansion Valve
Protector
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level
dB(A)
58
59
60
62
62
62
64
65
Weight
Kg
75
120
150
180
180
200
230
260
Dimension
L
mm
600
600
1000
1200
1200
1250
1450
1650
W
mm
520
600
550
600
600
650
750
790
H
mm
800
1000
1050
1100
1100
1200
1200
1300
Model
BCA-12
BCA-15
BCA-20
BCA-25
BCA-30
BCA-40
BCA-50
BCA-60
Cooling capacity
KW
38
46.1
62.2
70.4
93.3
124.4
140.8
176
103kcal/h
32.7
39.6
53.4
60.5
80.2
106.9
121
151.3
Power Supply
V/ph/Hz
380/3/50
Input Power
kw
12.34
15.6
20.1
24.1
29.05
39.55
49.2
56.6
Compressor Type
Scroll
Compressor Power
kw
10.4
12.3
16.2
20.2
24.3
32.4
40.4
50.5
Pump Power
kw
1.1
2.2
2.2
2.2
3.75
3.75
4
5.5
Pump Head
m
20
20
20
20
20
20
20
20
Chilled Water Flow
m3/h
6.5
7.6
10.2
11.6
15.5
21.1
26.7
29.8
Evaporator Type
Water Tank Type/Stainless Steel Plate Type
Water Tank Volume
L
200
270
350
350
420
500
600
650
Pipe Size
DN
40
50
50
50
65
80
80
80
Condenser
Air Volume
m3/h
13000
16000
20000
24000
29000
40000
48000
60000
Fan power
W
840
1100
1700
1700
2550
3400
3900
4200
Refrigerant
R22/R134a/R404
Throttle Mode
Capillary Tube/Expansion Valve
Protector
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
Noise Level
dB(A)
65
67
68
68
68
68
68
68
Weight
Kg
350
650
750
1200
1300
1500
1800
2100
Dimension
L
mm
1650
1850
2000
2150
2600
3300
3300
4100
W
mm
790
900
950
1000
1100
1500
1500
1500
H
mm
1300
1650
1650
1700
1700
1600
1600
1600
