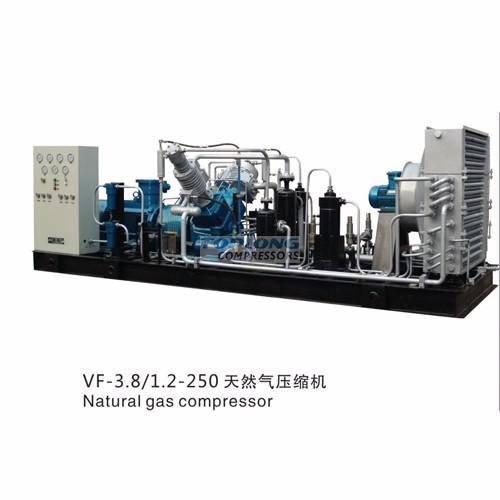

عنصر المنتج：vf-3.8/1.2-250

heavy duty working

portable design

45-60days ETD

compact design

الوصف

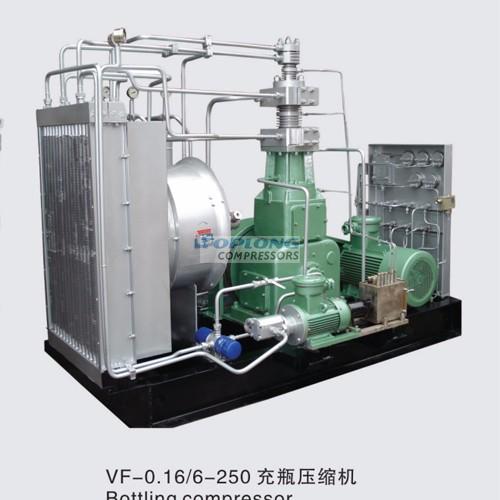

25Mpa high pressure cng compressor for bottle filling:

The main equipment of the cng compressor 25mpa for bottle filling is composed of a compressor unit, a metering device, a gas purifying and drying device, a gas storage device, a charging sequence control plate, a gas filling column, and a gas selling machine. According to the different functions, it can be divided into three types: standard station, gas station and gas station. The standard station directly takes gas from the gas pipeline network. After a series of processes such as pretreatment system, compression and storage, it sells gas. Machine to refuel the car

In addition to the function of the standard station, the CNG refueling station also charges the compressed natural gas into the high-pressure gas transport semi-trailer (semi-trailer) through the air-filling column located in the station, and transports it to the refueling sub-station to refuel the car. At the same time, as an effective supplement to pipeline gas transmission, in small and medium-sized cities far from the natural gas pipeline, semi-trailer can be used to transport compressed natural gas to the city by road transportation, after pressure-adjusting into the gas pipeline network, to residents and others. Gas users supply gas.

The CNG refueling station receives the compressed natural gas from the refueling mother station in the place where the natural gas pipeline network has not arrived, and refills the vehicle through the gas-selling machine through the process of storage and compression.

Structure introduction

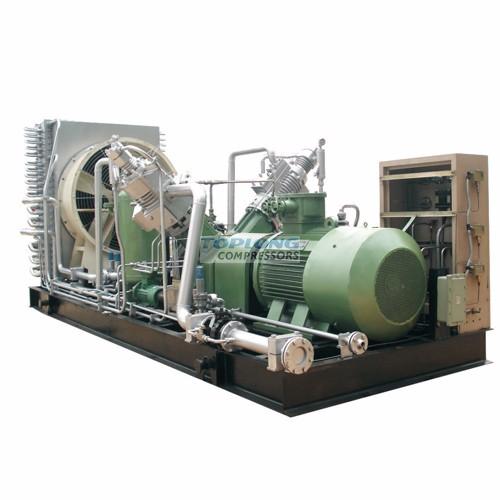

25Mpa bottle filling cng compressor is a reciprocating piston type. It can be divided into two types: basic and non-basic. The whole machine is mainly composed of fixed part and moving part. The fixed part is composed of a fuselage, a middle body, a cylinder head, a cylinder, a cylinder block and the like. The moving part is composed of a crankshaft, a connecting rod, a crosshead, a piston, a gas valve and the like, and is equipped with a pipe and an instrument operating system. The system compressor is equipped with a purification device that can provide users with purified high-pressure natural gas. The equipment can be made into a bare-mounted, skid-mounted or soundproofed cabin.

Compressor performance description

The company's introduction of Austrian LMF company, Germany Mannesmann Demag technology, product reliability. The wearing parts such as gas valve and piston ring are made by Austrian HOERBIGER products and have a service life of more than 8000 hours.

Soft start allows the compressor to start and stop frequently. Wide range of air intake, wide range of adaptation.

The overall armor structure, low noise, easy installation in the city, saving investment.

Siemens PLC control system, high degree of automation.

Air cooling and water cooling can be selected.

Gas filling station compressor features:

1. Import range: 3.0~20.0MPa

2. Processing capacity 400Nm@/h~2200Nm@/h

3, the basic components are introduced to Germany Demag V series production license manufacturing

4, using the first domestic segmented air intake design technology

5, full air cooling structure

6, neatly armored, with soundproof casing, noise 75@bd (A)

7, fully automatic intelligent control, can achieve unattended

25Mpa high pressure cng compressor for bottle filling compressor technical data as follows

S/N	Compressor model	Suction pressure	Discharge pressure	Compressor flow rate	Motor power	memo
S/N	Compressor model	(Mpa)	(Mpa)	(Nm.h)	(kw)	memo
38	W-1.1/(12-16)-250	1 .2-1.6	25	858-1530	160
39	VF-2/(10 -16) — 250	1.0-1.6	25	1320-2000	280
40	WF-2/1 6-250	1 .6	25	2000	280
41	V-2/(16-20)-250	1.6-2.0	25	2000-2500	315
42	W-1.43/20-210	2	25	1460-1800	200
43	V-0.7/22-210	2.2	25	960	132
44	W-1.0/(16-25)-250	1.6-2.5	25	1020-1800	185
45	W-1.05/40-250	4	25	2580	250
46	VF-1/(25-40)-250	2.5-4.0	25	1560-2460	220-8
47	VF-3.2/0-5)-250	0.3-0.5	25	768-1152	220
48	V-1.8/(18-23)-210	1.8-2.3	25	2050-2590	280
49	VF-2.5/3-210	0.3	21	600	132
50	W-1.6/16-250	1.6	25	1632	185
51	WF-2/(12-16)-250	1.2-1.6	25	1560-2040	250
52	WF-2/12-210	1.2	21	1 560	220
53	WF-0.37/(105-120)-210	10.5-12	21	2350-2686	75
54	W-1.6/(7-1 2)-210	0.7-1.2	21	768-1248	1 10
55	W-1.43/20-250	2	25	1802	220
56	W-1.1/(10-16)-250	1.0-1.6	25	726-1122	160
57	W-4/3-250	0.3	25	960	200
58	W-3.6/1-250	0.1	25	432	1 10
59	W-4.75/1 -250	0.1	25	570	132
60	W-3.6/3-250	0.3	25	864	185
61	W-5.6/0.5-250	0.05	25	504	160
62	W-7.5/2-250	0.2	25	1300	280
63	VF-0.1 1/(70-200)-250	7月20日	25	468-1326	30
64	VF-2.5/(0.8-1.6)-250	0.08-0.16	25	270-390	90
65	VF-2/(2-3)-250	0.2-0.3	25	360-480	1 10
66	VF-1,1/(5-6)-250	0.5-0.6	25	396-462	90
67	VF-0.54/30-250	3	25	1004	1 10
68	VF-0.8/30-250	3	25	1488	160
69	VF-0.28/(40-80)-250	4.0-8.0	25	688-1360	90
70	VFD-0.1 1/(20-200)-250	2.0-20	25	300	30	Soundproof cabin
71	VFD-0.12/(20-200)-250	2.0-20	25	400	30	Soundproof cabin
72	VFD-0.15/(20-200)-250	2.0-20	25	500	45	Soundproof cabin
73	VFD-0.16/(20-200)-250	2.0-20	25	600	55	Soundproof cabin
74	VFD-0.28/(20-200)-250	2.0-20	25	525-1430	75	Soundproof cabin
75	VFD-0.32/(20-200)-250	2.0-20	25	600-1700	90	Soundproof cabin
76	VFD-0.36/(20-200)-250	2.0-20	25	680-2210	1 10	Soundproof cabin
