700 bar largest hydrogen fuel cell compressor manufacturers

700 bar largest hydrogen fuel cell compressor manufacturers

عنصر المنتج：700 bar largest hydrogen fuel cell compressor manu

silent working and easy moving

24hours heavy duty working model

CE and iso 9001

two years quality guarantee

الوصف

700 bar largest hydrogen fuel cell compressor manufacturers , is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
hydrogen fuel cell compressor manufacturers is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

largest hydrogen fuel cell compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

fuel cell 700bar hydrogen compressor manufacturers

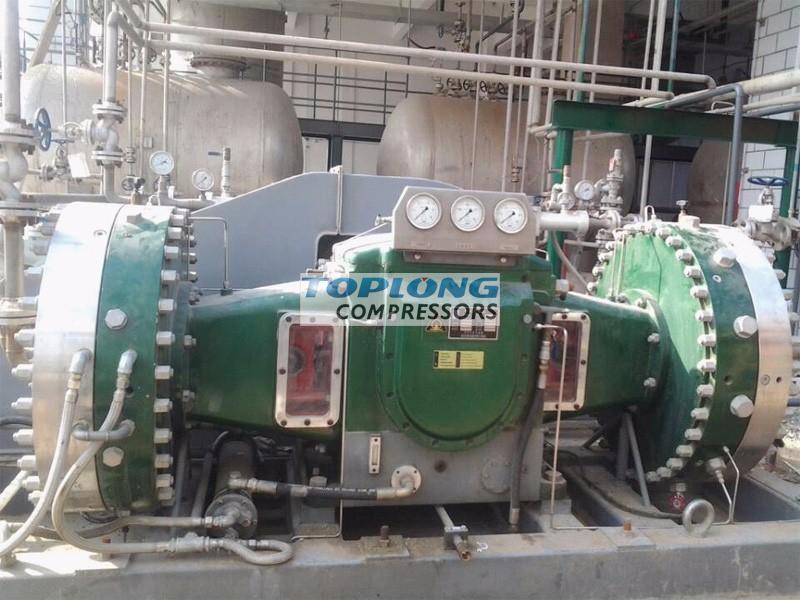

700 BAR OIL FREE Diaphragm compressor

Compressor main technical data
Model	Z type ,single cylinder ,water cooling ,1 function
Compressor medium	Dry hydrogen gas
Model	GZ2-5/150-700	Pressure stage	1 stage
Condition	Rated condition	最大工况	设计值
Rated flow rate Nm3/h	5(@suction 150bar)
Suction MPa(G)	15.0
Discharge MPa(G)	70.0
Inlet temperature℃	0~40
Discharge temp℃	<45（after cooling）
Water consumptm3/h	1.0
Piston stroke mm	100
Crank shaft r/min	300
Speed m/s	1.2（Max）
Shaft power kW	≤2.6
Motor power kW	4
Lubricate way	Pressure lubricate
Lubricate num	LHM32
Noise dB(A)	≤75
Vibration mm/s	12.5
dimension（LxWxH）mm	1400X850X1150
MAX PART WEIGHT kg	200
Compressor G weight：kg	800
Maintenance room	At least 1.5m far from wall
