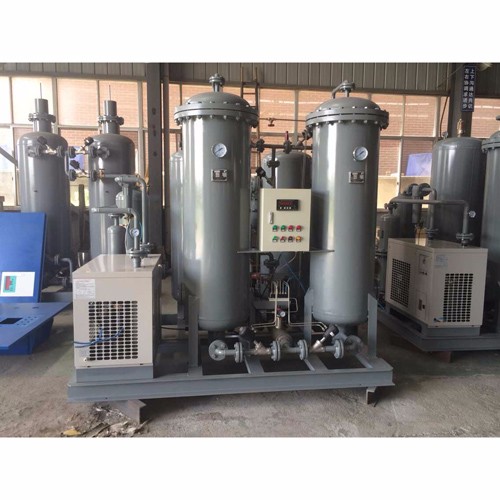

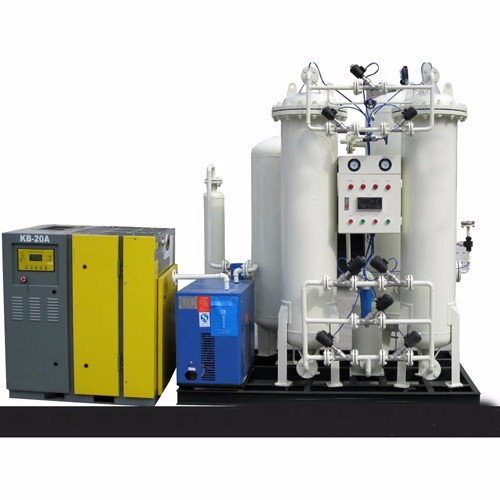

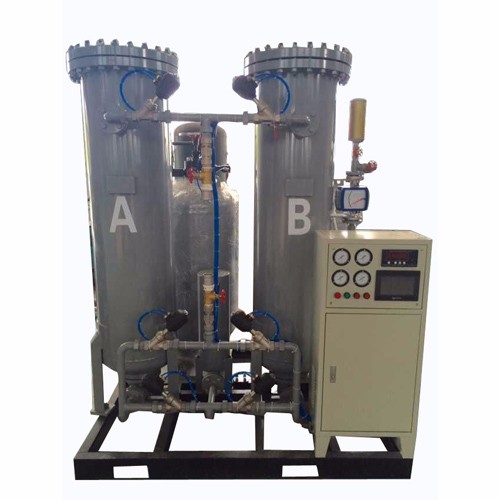

Nitrogen Generator For Electronic / SMT

عنصر المنتج：ZR-100

silent working

long working life

low maintenance cost

reliable quality performance

الوصف

PRPDECTS DETAILS

Particular Applications
1) Beer, wine, fruit spirit and edible oil: use Nitrogen for holding tank, bottle blowing and before closing capsule to remove Oxygen It can prevent oxidation, spoilage and fading of noncarbonated beverage and edible oil.
2) Puffed and fried food: Nitrogen can prevent food fluffy and flavor reversion caused by little water in the bags. Nitrogen also can make the shape and package beautiful, and food will not be crushed in transportation.
3) Pastry, bakery food and vitellus-pie: Flushing Nitrogen inside the food bags can prolong freshness time and prevent food being metamorphose and crushed in transportation.
4) Milk Powder and soybean milk powder: just use little Nitrogen can prevent or reduce agglomerate phenomenon of milk powder caused by long-time extrusion storage.
5) Cereal, nut, fruit and vegetable: Flushing Nitrogen can prevent pests harming, and saving little Oxygen can reduce breathing rate of fruit to make the fresh effect more obvious.
6) Candy and snack foods: Nitrogen is mainly suitable used in the airtight food bags.

Advantages of Psa Nitrogen Generator For Electronic / SMT

1) Simple installation
2) Smooth operating with low noise
3) Strict quality management system
4) Superior equipment
5) Professional services
6) High quality products
7) Variety types for selection
8) Competitive price
9) Prompt delivery

Technical Parameters

Model	Nitrogen Capacity	Power	Nitrogen Purity	Feed Air Pressure	Nitrogen Pressure
ZR-3	3Nm³/hr	50W	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-5	5Nm³/hr	50W	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-10	10Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-15	15Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-20	20Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-30	30Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-40	40Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-50	50Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-60	60Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-80	80Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-100	100Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-120	120Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-150	150Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-200	200Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa
ZR-300	300Nm³/hr	0.1KW	99.5-99.999%	0.8-1.0Mpa	0.1-0.7Mpa

Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.

Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) Nitrogen Flow rate: ____Nm3/h
2) N2 Purity: ____%
3) N2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.

Q: What’s the order process?
A:
1) Inquiry---provide us all clear requirements.
2) Quotation---official quotation form with all clear specifications.
3) Contract confirmation---provide correct contract details.
4) Payment terms--- T/T 30% in advanced, balanced before shipment.
5) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
6) Installation and commissioning.
