Delicate Appearance Low Price Liquid Nitrogen Compressor

Delicate Appearance Low Price Liquid Nitrogen Compressor

AC POWER

nitrogen

Oil-free

10 bar, 5 bar, Other

الوصف

Nitrogen compressor

Nitrogen compressor refers to the compressor used to pressurize nitrogen and realize transportation or storage

Nitrogen has many applications in the national economy

for example

1. Laser cutting

Nitrogen plays the role of protective gas in laser cutting. Medium pressure nitrogen is mainly used to blow away oxygen, prevent oxidation of metal incision and surrounding under high temperature, and improve the cleanliness and beauty of cutting surface

2. Nitrogen storage

Generally, the outlet pressure of PSA nitrogen generator is less than or equal to 10 barg. If the nitrogen generator has excess capacity, or if it is filled at night with peak valley power, it is more economical. It is necessary to store the nitrogen for subsequent use. At this time, the nitrogen compressor is generally used to pressurize the pressure to 200-300 kg and fill it into the high-pressure bottle. Generally, a high-pressure bottle can fill about 10 cubic meters of nitrogen

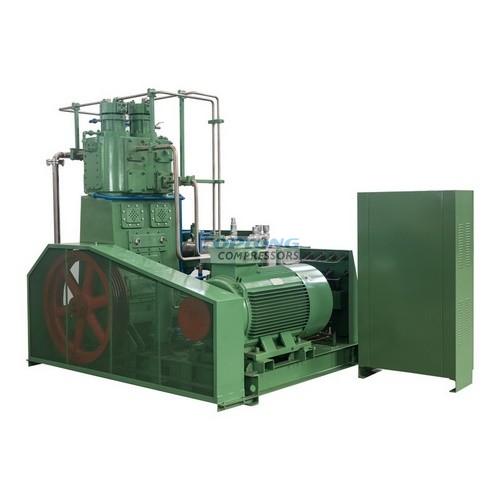

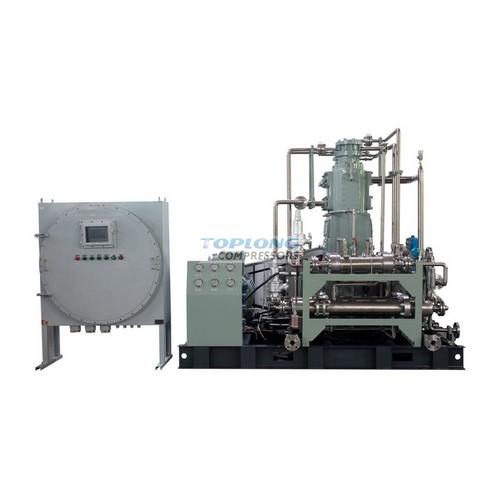

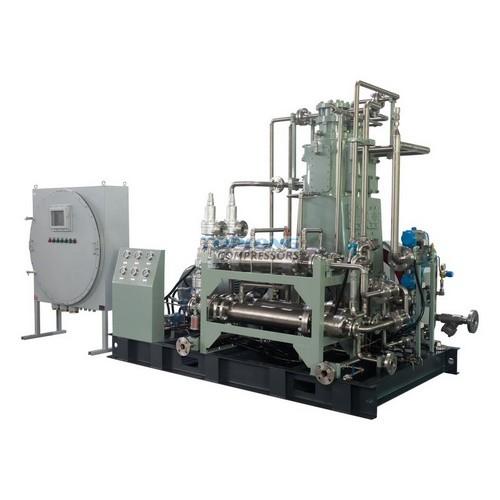

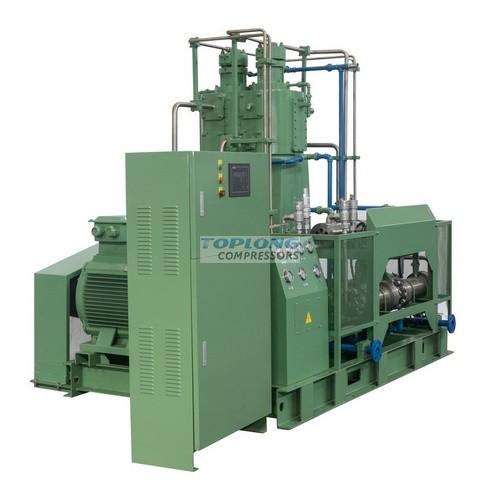

The oil-free lubricated reciprocating plug nitrogen compressor has two cooling modes: air cooling and water cooling. It can be divided into single action and double action structures, vertical and angle types, medium pressure and high pressure. The wind brand series oil-free lubricated nitrogen compressor has excellent performance, smooth operation, high efficiency and energy saving, long service life, and is widely used in nitrogen laser cutting, nitrogen canning, chemical industry, etc.

Here is our oil free nitrogen compressor technical data

Model	Working medium	suction pressure (Mpa,Psig)	Discharge pressure (Mpa,Psig)	Motor.KW	Flow rate Nm3/hr	Voltage	Cooling way
WW-100-6-30	Nitrogen	0.6,85	3,430	15	100	220V/380V/415V/440V 50/60HZ	air cooling
WW-100/5-40	Nitrogen	0.5,70	4,576	18.5	100	220V/380V/415V/440V 50/60HZ	air cooling
WW-100/5-45	Nitrogen	0.5,70	4.5,650	18.5	100	220V/380V/415V/440V 50/60HZ	air cooling
WW-150/6-30	Nitrogen	0.6,85	3,430	18.5	150	220V/380V/415V/440V 50/60HZ	air cooling
WW-190/10-40	Nitrogen	1,145	2.5,360	18.5	190	220V/380V/415V/440V 50/60HZ	air cooling
WW-200/6-30	Nitrogen	0.6,85	3,430	22	200	220V/380V/415V/440V 50/60HZ	air cooling
WW-220/5-16	Nitrogen	0.5,70	1.6,230	18.5	220	220V/380V/415V/440V 50/60HZ	air cooling
WW-220/5-16	Nitrogen	0.5,70	1.6,230	18.5	220	220V/380V/415V/440V 50/60HZ	air cooling
WW-282/5-16	Nitrogen	0.5,70	1.6,230	22	282	220V/380V/415V/440V 50/60HZ	air cooling
