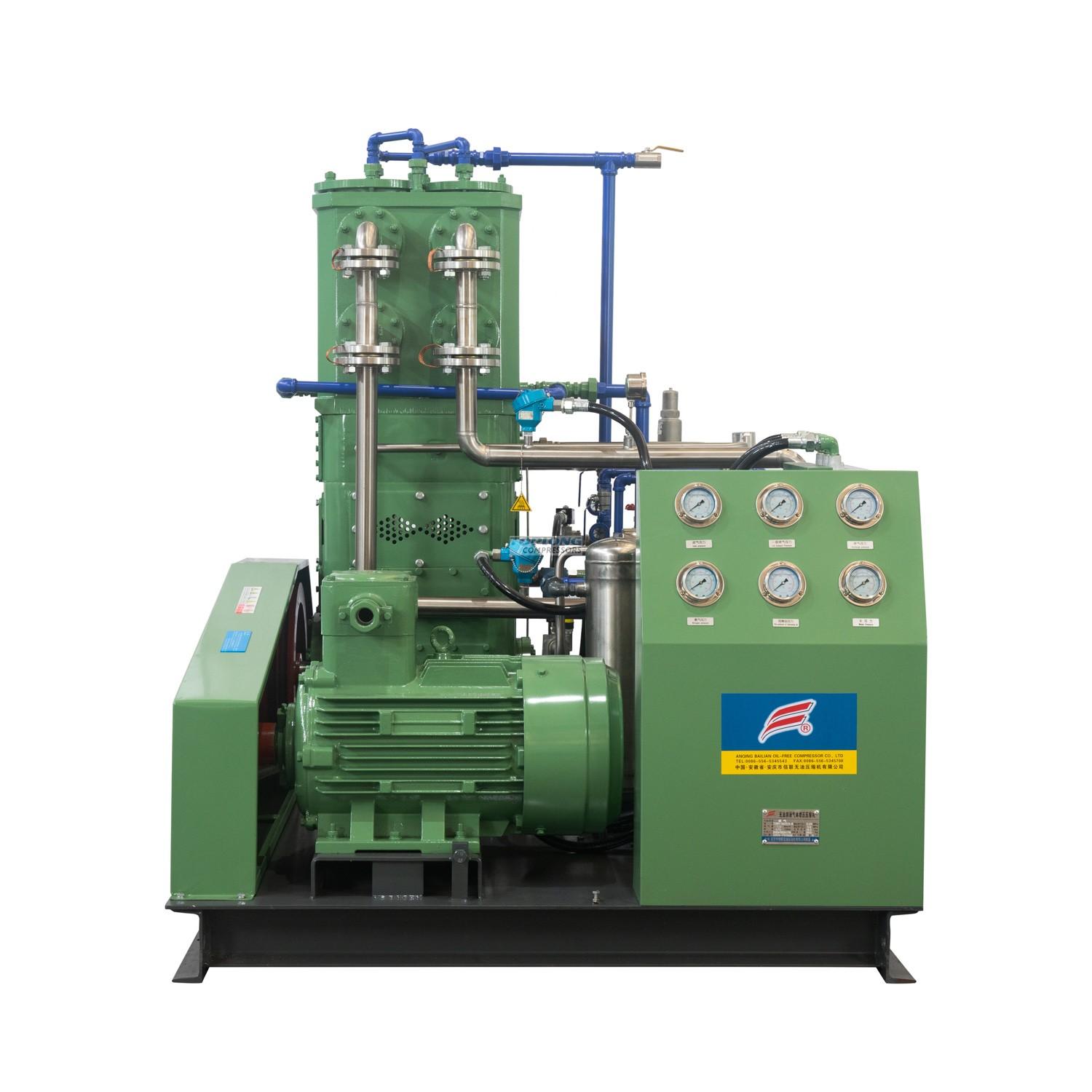

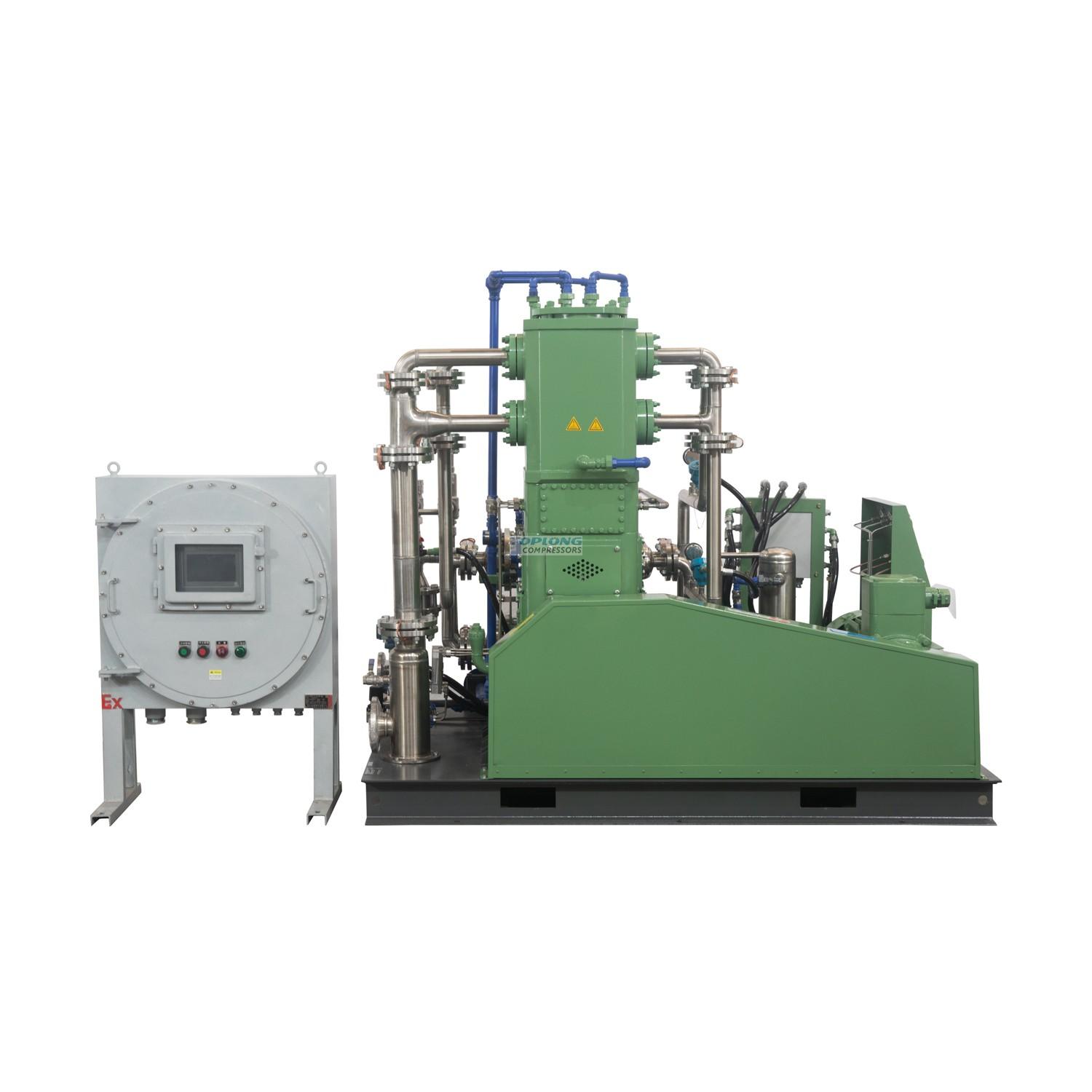

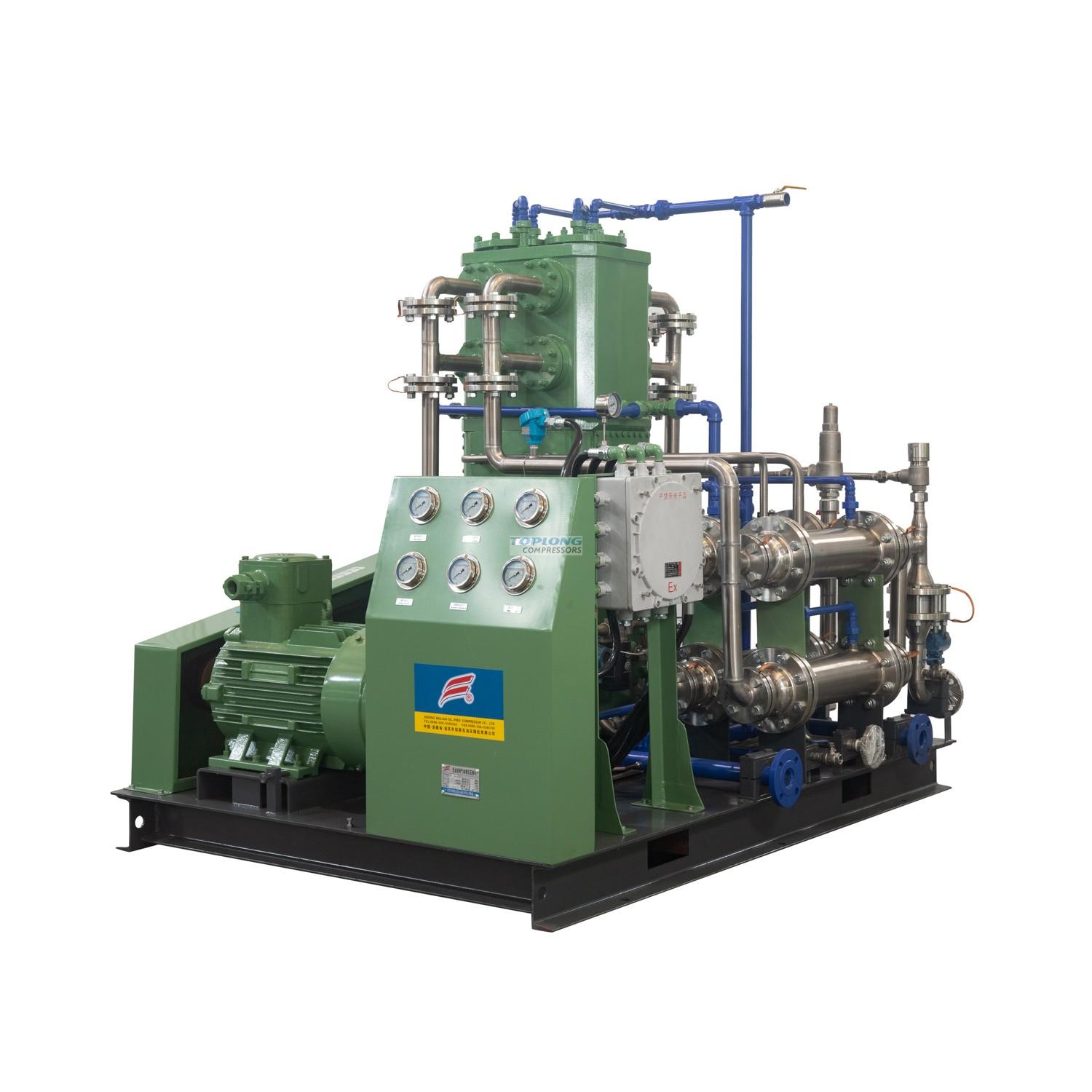

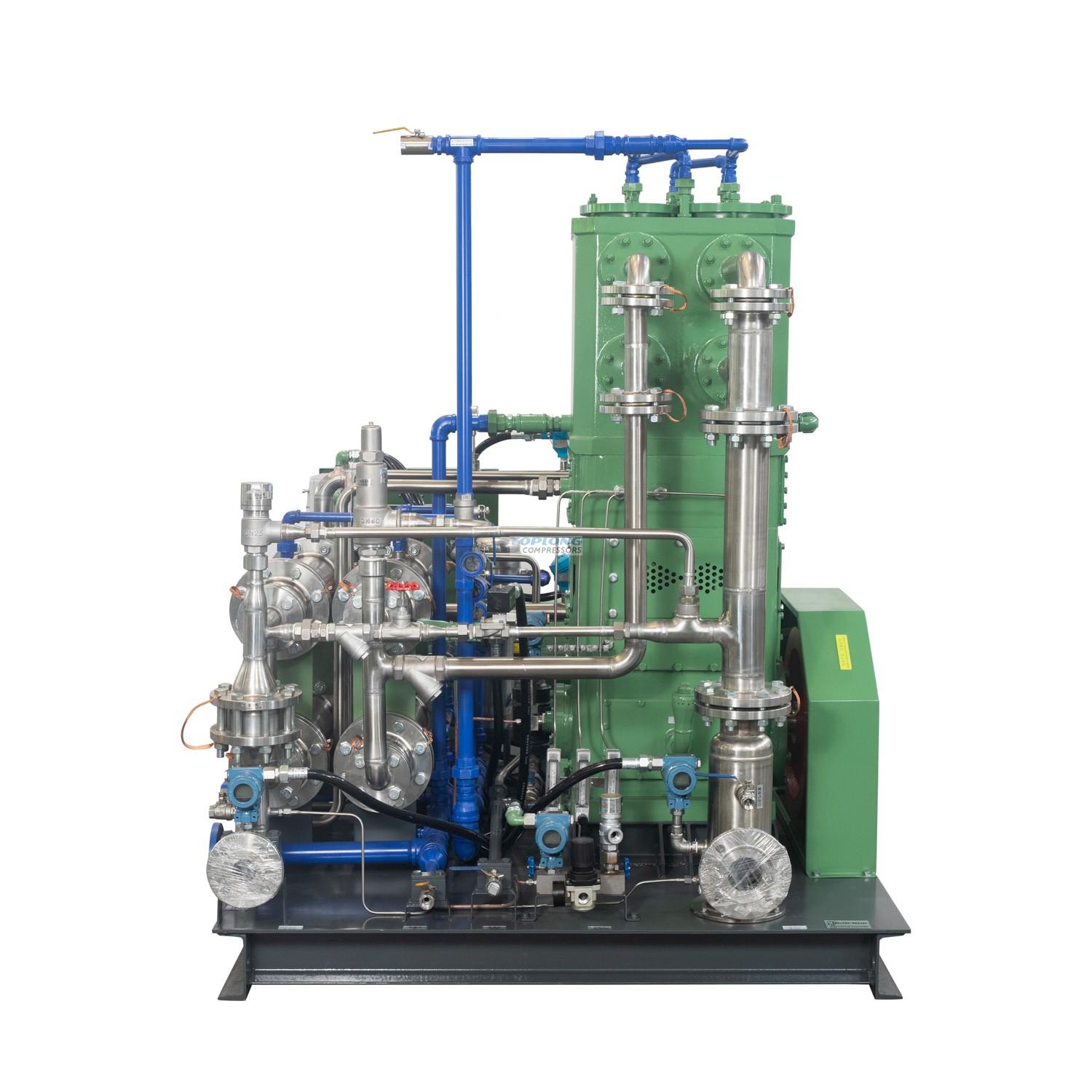

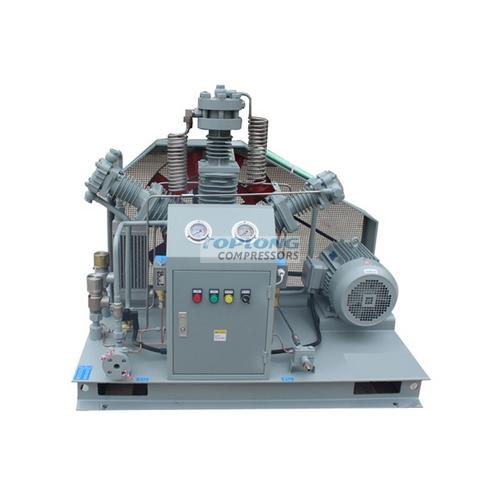

Working principle of the hydrogen compressor
Hydrogen compressor structure is more complex, the more important components are cast iron cylinder, cast iron cylinder sleeve, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), filler, piston (including piston ring), scraping oil ring, stainless steel piston connecting rod, stainless steel gas valve, etc., in addition to some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, the hydrogen compressor comprises three processes: suction, compression, and exhaust.Under the motor drive, the crankshaft drives the crosshead, the piston connecting rod and the piston back and forth in the cylinder, and the gas is finally discharged through the air valve under the piston compression.
Technical data
|
Project and parameters |
||||
|
Medium |
Hydrogen |
Quantity |
1 |
|
|
Inter pressure MPa（G） |
0.05 |
Inlet temperature ℃ |
0～35 |
|
|
Discharge pressure Mpa（G） |
2.0 |
Discharge temperature (After cooling) ℃ |
≤55 |
|
|
Volume flow Nm3/h |
50 (Inter pressure=0.05MPag） |
Piston stroke mm |
75 |
|
|
Model |
TZWH-50/0.5-20 |
Compressed series |
3 |
|
|
Structural type |
Reciprocating piston vertical skid type |
Number of cylinders |
4 |
|
|
Speed of crankshaft r/min |
415 ※ |
Voltage V |
380V50Hz |
|
|
Cooling method |
water-cooling |
cooling water flow t/h |
1.5 |
|
|
Shaft power KW |
9.2 |
Motor speed r/min |
1460 ※ |
|
|
Motor |
15kw 380V 50Hz ExdIICT4 ※ |
|||
|
Outline dimension mmXmmXmm |
L2000×W1400×H1950 ※ |
Unit weight t |
1.55 ※ |
|
|
Interface size mm |
Inlet DN40 / Outlet DN15 / cooling water DN20 |
|||
|
Driving mode |
decelerator |
|||
|
Material is partly in contact with the gas
|
Body, slide |
cast iron |
||
|
|
Piston ring, filler |
filled polytetrafluoroethylene |
||
|
|
Gas valve, cylinder head |
stainless steel |
||
|
Scope of supply |
Main engine, motor, oil pump, skid-mounted chassis, start cabinet, air intake filter, primary instrument and control components, safety valve, special tools, import and export matching flange, random documents, etc. |
|||
|
Other matters needing attention |
1、Site electrical explosion-proof grade: ExdIICT4； 2、Lube oil user is self-provided. 3、The piston rod is sealed with nitrogen filling gas, and the nitrogen source shall be continuously provided on site； 4、※ Column data is for user reference |
|||
|
Delivery time |
Contract signing, 70 working days after the advance payment to the account |
|||
