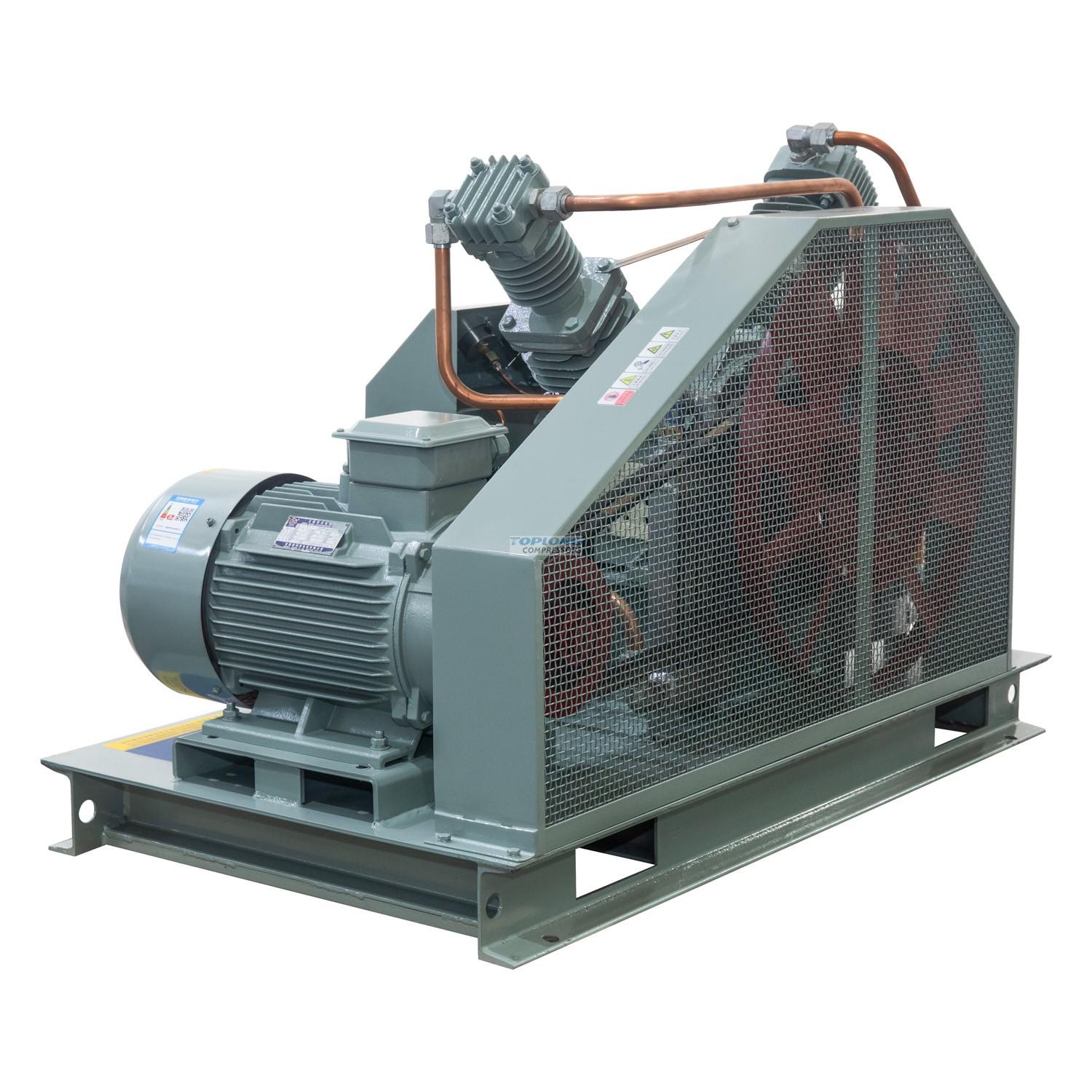

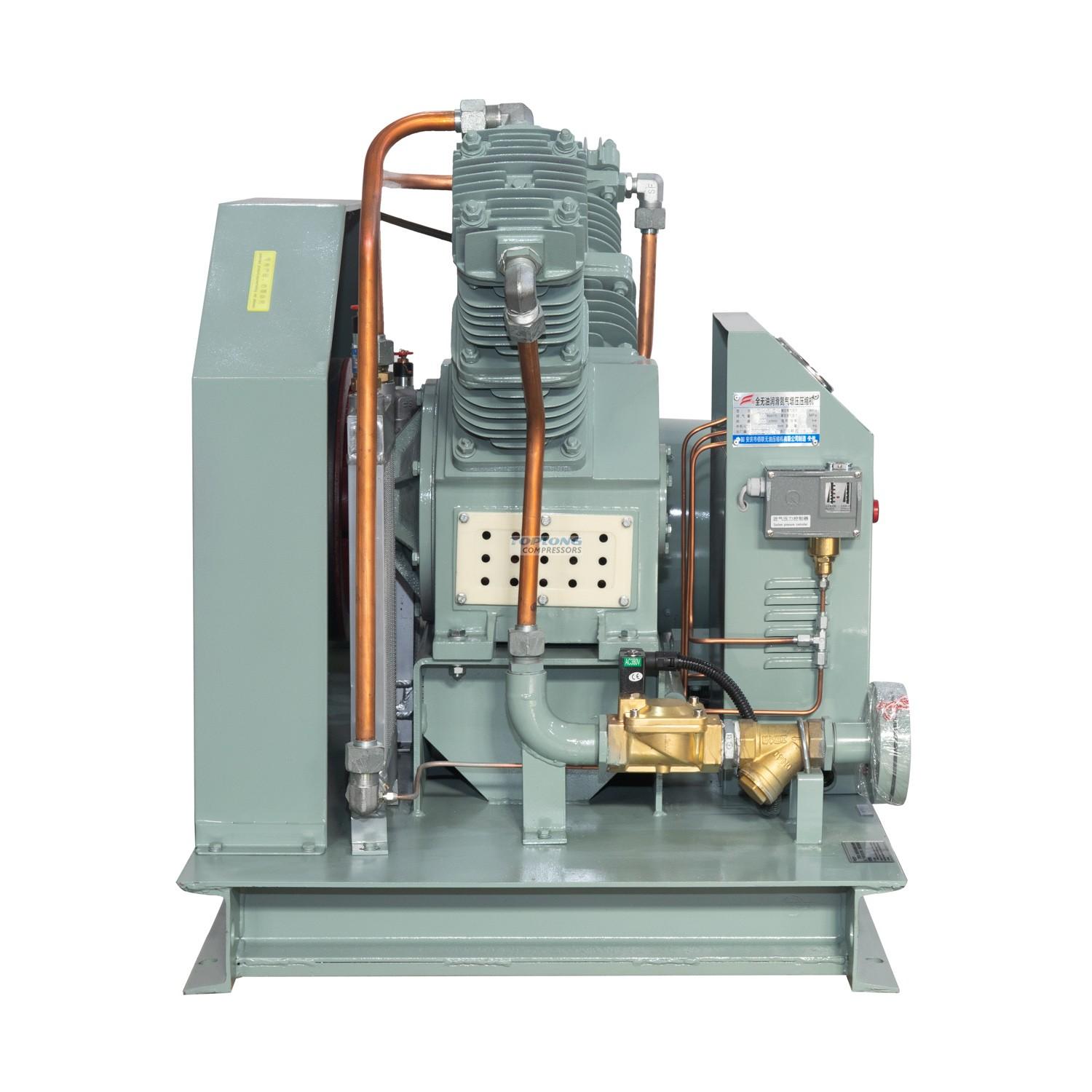

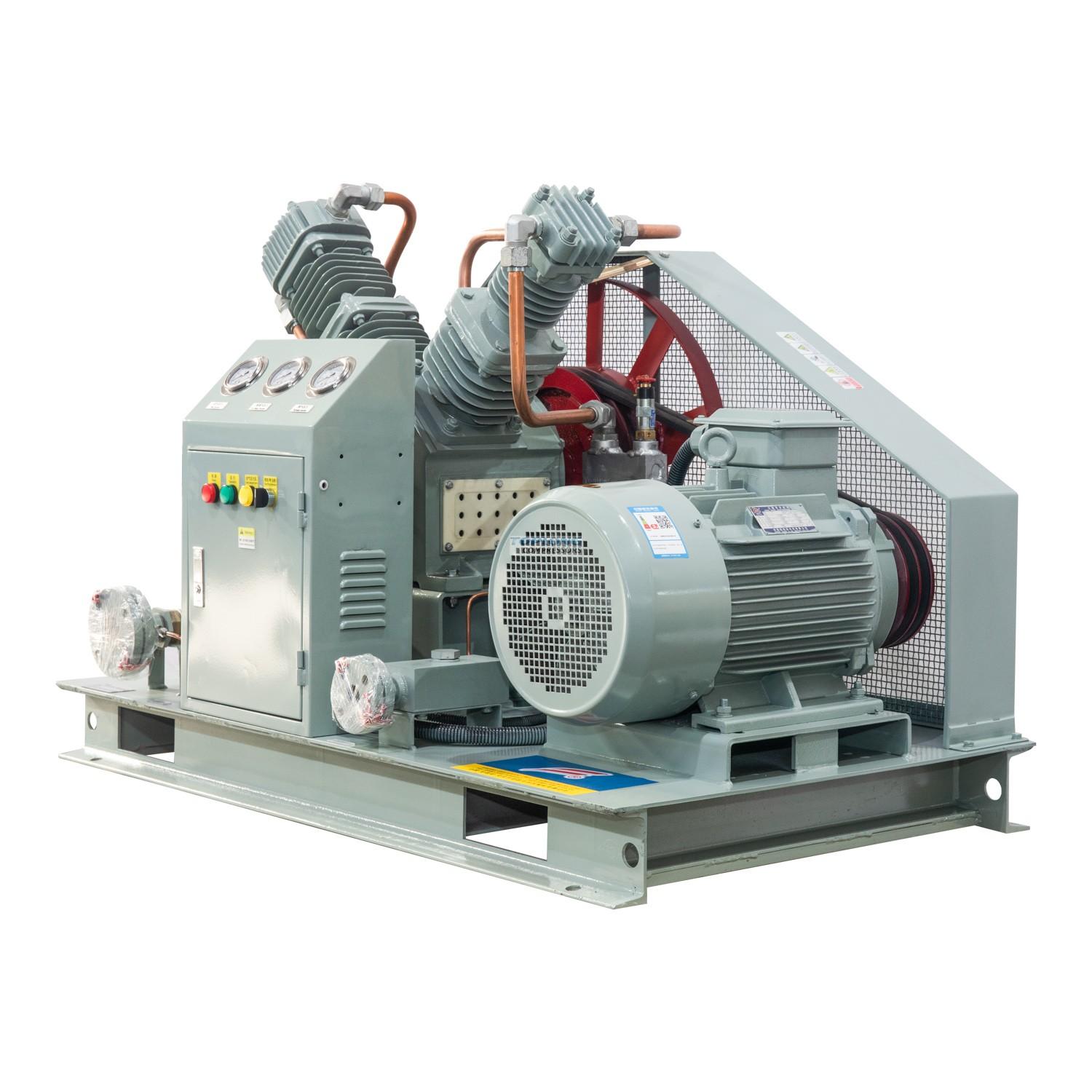

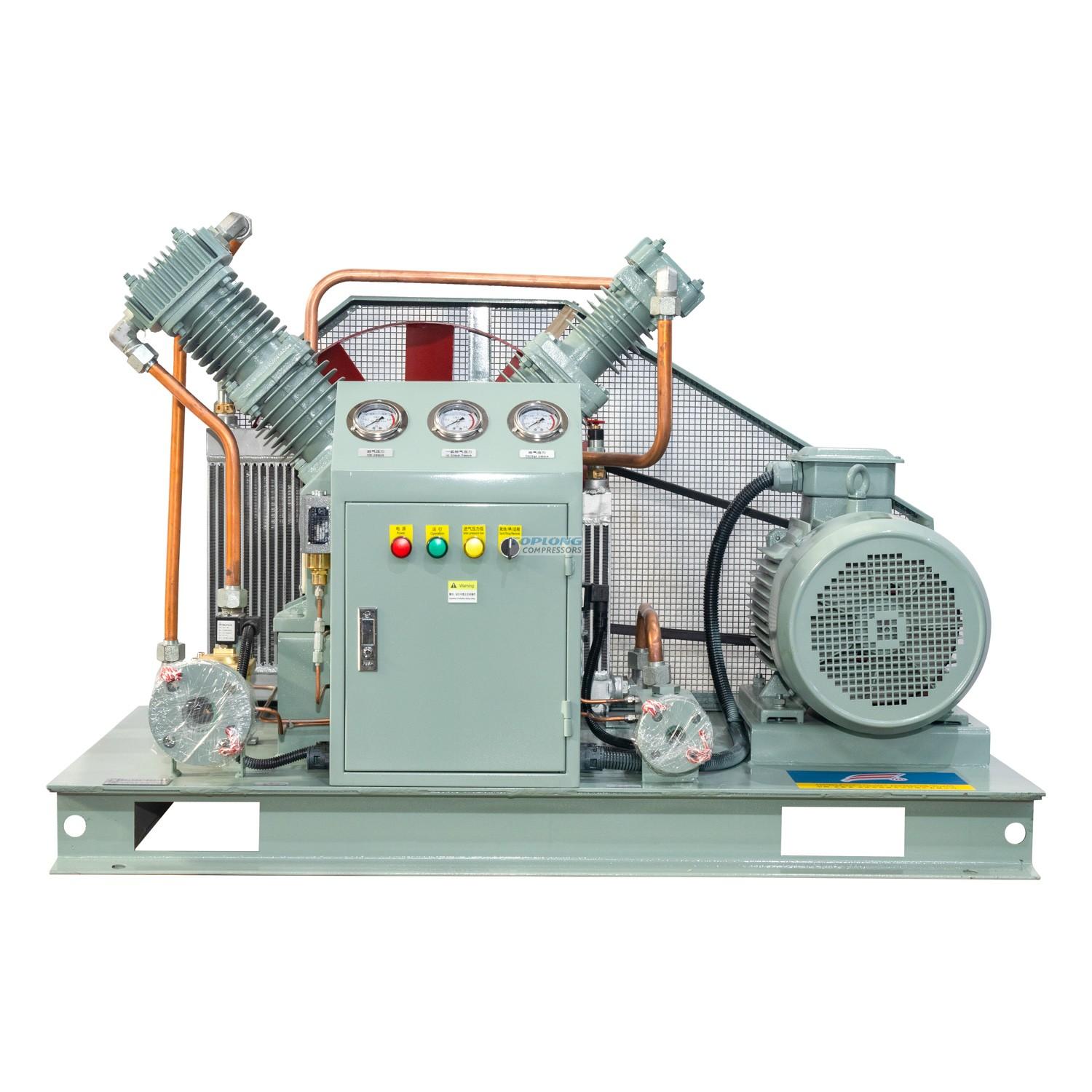

VW TYPE LOW PRESSURE NITROGEN COMPRESSOR
This nitrogen compressor is suitable for inlet pressure 5-7barg(70-100psig), exhaust pressure 20-40barg, Low flow laser cutting system.
Characteristics of this compressor
It adopts two-stage compression, air-cooling, which is convenient to use, and ensures good cooling effect of the compressor. The inlet is equipped with an intake pressure controller, the exhaust end is equipped with a pressure controller, and each stage is equipped with a safety valve, If the display is over-temperature and over-pressure. the system will alarm and stop. ensuring safe operation. There is a forklift position at the bottom of the compressor, which can be easily transferred to the construction site.
Here is our oil free nitrogen compressor technical data
|
Project and parameters |
|||
|
Medium |
Nitrogen |
Quantity |
1 |
|
Inter pressure MPa（G） |
0.5 |
Inlet temperature ℃ |
0～35 |
|
Discharge pressure Mpa（G） |
4.0 |
Discharge temperature (After cooling) ℃ |
≤55 |
|
Volume flow Nm3/h |
60 (Inter pressure=0.5MPa） |
Piston stroke mm |
63 |
|
Model |
VW-60/5-40 |
Compressed series |
2 |
|
Structural type |
Type V sleigh pack |
Number of cylinders |
2 |
|
Speed of crankshaft r/min |
760 ※ |
Voltage V |
220 |
|
Cooling method |
air cooling |
cooling water flow t/h |
— |
|
Shaft power KW |
≤9.0 |
Motor speed r/min |
1460 |
|
Motor |
11kw 220V 60Hz ※ |
||
|
Outline dimension mmXmmXmm |
1400×820×950 ※ |
Unit weight T |
0.42 ※ |
|
Inlet and exhaust interface |
DN25/DN15 |
Water pipe joint |
--- |
|
Driving mode |
belt drive |
||
|
Material is partly in contact with the gas
|
Body, crankshaft |
cast iron |
|
|
|
air valve |
stainless steel |
|
|
|
Piston ring, guide ring |
filled polytetrafluoroethylene |
|
|
Scope of supply |
Main engine, motor, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, import and export matching flange, random documents, etc. |
||
|
Other matters needing attention |
※ Column data is for user reference |
||
|
Delivery time |
The contract signing, 30 working days after the advance payment to the account |
||
