industrial quiet hydrogen recirculation diaphragm compressor

الوصف

hydrogen recirculation diaphragm compressor, is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
The cylinder filling diaphragm nitrogen compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

industrial recirculation hydrogen diaphragm compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the oxygen reciprocating low pressure diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

G5 quiet industrial diaphragm hydrogen compressor |nitrogen compressor|is a non-standard compressor product, G5 diaphragm compressor is divided into two cylinder G5and four cylinder  GD5 diaphragm compressor, G5 diaphragm compressor piston force 16TON, Customized according to different customer parameters, requirements and environment!

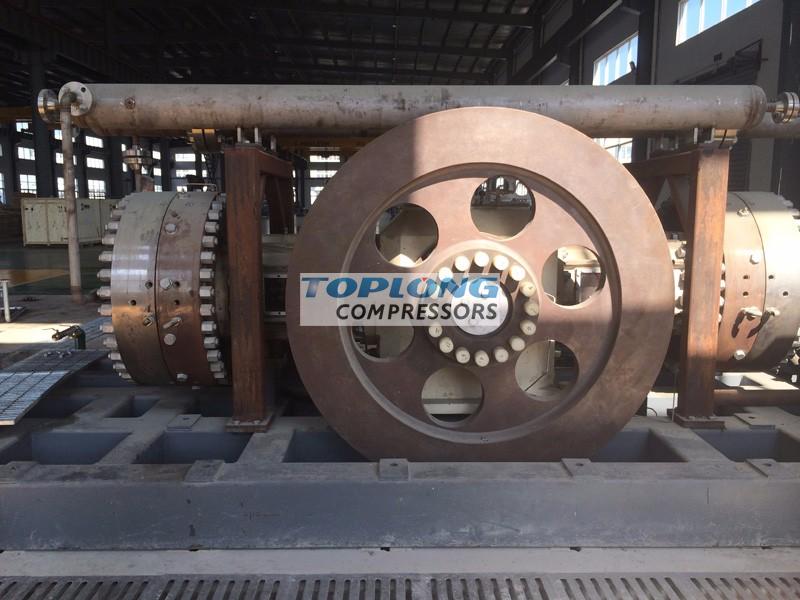

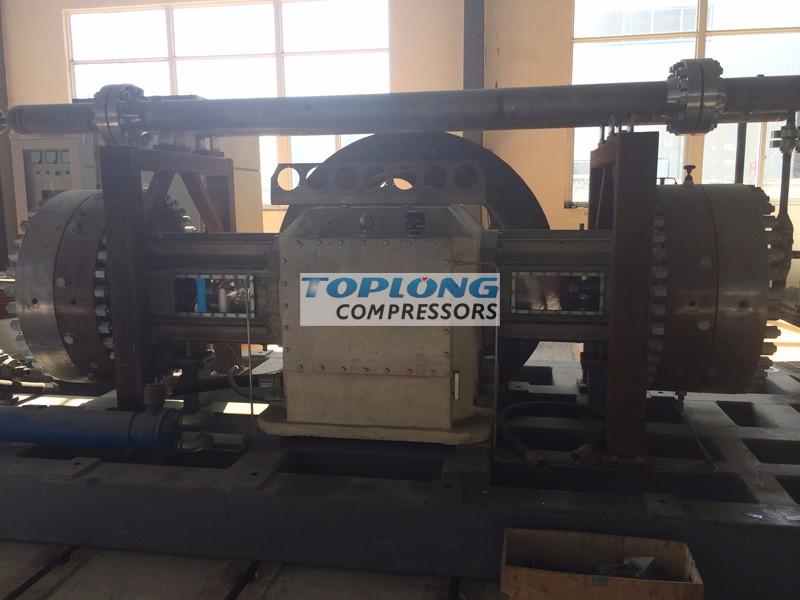

GD5 oil free cylinder filling diaphragm nitrogen compressor is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. The GD5 diaphragm compressor series products are available from our company. Cooling method: air cooling and water cooling.
Company product features
Ø Advanced oil-free disc cylinder component structure reduces the difficulty of assembly process; reduces sealing surface; alarm when leakage medium leaks, improves the reliability of the whole machine.
Ø The oil consumption of the whole machine hydraulic oil is small, which is 1/2 of the oil used in the traditional diaphragm compressor. The economic advantage is very obvious for the oxygen compressor.
Ø New membrane cavity curve, Kezan
Nie or HOERBIGER's air valve,
Leading diaphragm surface treatment technology
Improves the work of the compressor
Efficiency, achieving high energy efficiency,
Moreover, the life of the vulnerable piece diaphragm and the air valve is improved. Diaphragm and air valve have a guaranteed average life of 3000
Hours and 6,000 hours or more.
Ø Full-featured built-in oil supply and pressure regulation system for compressor lubrication and oil
Cylinder work provides pressure stable, clean quality lubricants and oils
The road system does not leak, completely different from the traditional diaphragm compressor oil system.
It belongs to our company's patented technology.
Ø User-friendly instrument interface and middle window, simple oil and gas pipeline.

Characteristics of G5 series oil free gas high pressure argon diaphragm compressor in car
Compact structure, it is a super large diaphragm compressor
Structure type: D type (two 51, three 51, four or six cylinders)
Lubrication method: forced lubrication
Replenishment method: forced replenishment
Cooling method: water cooling
Repair single piece maximum weight fi: 5000kg
Maximum maintenance space: no less than 2.5 meters around
Main product model and basic parameters of quiet diaphragm hydrogen compressor for industrial

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension L*W*H mm	Weight kgs
GD5-2400/10-250	2400	1	25	50	372	560	6200X4800X2500	43
5D5-22000/290-305	22000	29	30.5	5	372	90	5800X4200X2500	36
GD5-3600/19-305	3600	19	30.5	50	372	560	5800X4200X2500	40
GD5-6000/50-55	6000	5	5.5	5	372	75	5800X4200X2500	28
GD5-4000/50-300	4000	5	30	50	372	560	5800X4200X2500	40
GD5-6000/50-120	6000	5	12	30	372	315	4500X3200X2200	16
GD5-2100/7-230	2100	0.7	23	50	372	560	6200X4800X2500	43
