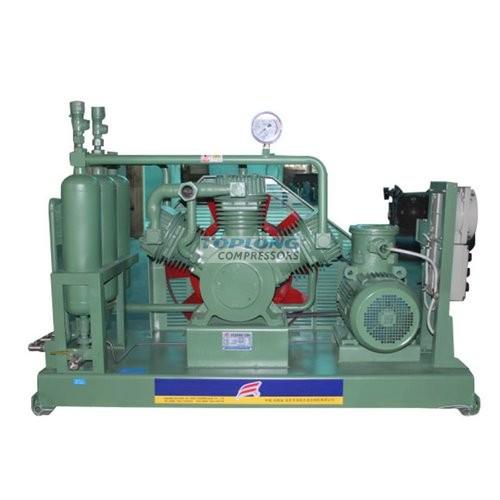

High Quality Low Price Factory Manufacturer Hydrogen Compressor 2Kw

High Quality Low Price Factory Manufacturer Hydrogen Compressor 2Kw

AC Power

Hydrogen

Engine, Motor, Pump, Bearing

220/380/440/50/60HZ/3phase

الوصف

Working principle of the hydrogen compressor

Hydrogen compressor structure is more complex, the more important components are cast iron cylinder, cast iron cylinder sleeve, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), filler, piston (including piston ring), scraping oil ring, stainless steel piston connecting rod, stainless steel gas valve, etc., in addition to some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc.Like other reciprocating compressors, the hydrogen compressor comprises three processes: suction, compression, and exhaust.Under the motor drive, the crankshaft drives the crosshead, the piston connecting rod and the piston back and forth in the cylinder, and the gas is finally discharged through the air valve under the piston compression.

Mode	working medium	inlet pressure (Mpa,Psig)	discharge pressure(Mpa,Psig)	power Motor.KW	flow rate Nm3/hr	Voltage	Cooling way
HV-1/5	Hydrogen	atmosphere	0.5,72	0.75	1	220V/380V/415V/440V 50/60HZ	water cooling
HV-15/0.5-9	Hydrogen	0.05,7	0.9,130	3	15	220V/380V/415V/440V 50/60HZ	water cooling
HW-20/0.5-9	Hydrogen	0.05,7	0.9,130	4	20	220V/380V/415V/440V 50/60HZ	water cooling
HV-17/3.4-21	Hydrogen	0.34,49	2.1,300	3	17	220V/380V/415V/440V 50/60HZ	water cooling
HW-16/0.5-80	Hydrogen	0.05,7	8,1150	7.5	16	220V/380V/415V/440V 50/60HZ	water cooling
GHV-2/2-150	Hydrogen	0.2,28	15,2160	1.5	2	220V/380V/415V/440V 50/60HZ	water cooling
HW-10/4-200	Hydrogen	0.4,57	20,2875	4	10	220V/380V/415V/440V 50/60HZ	water cooling
HD-40/200	Hydrogen	atmosphere	20,2875	22	40	220V/380V/415V/440V 50/60HZ	water cooling
HW-50/4-200	Hydrogen	0.4,57	20,2875	18.5	50	220V/380V/415V/440V 50/60HZ	water cooling
GHD-50/2-150	Hydrogen	0.2,28	15,2160	22	50	220V/380V/415V/440V 50/60HZ	water cooling
HD-120/2-17	Hydrogen	0.2,28	1.7,244	22	120	220V/380V/415V/440V 50/60HZ	water cooling
HD-100/0.5-25	Hydrogen	0.05,7	2.5,360	30	100	220V/380V/415V/440V 50/60HZ	water cooling
HD-200/3	Hydrogen	atmosphere	0.3,43	30	200	220V/380V/415V/440V 50/60HZ	water cooling
ZWH-200/0.8-12	Hydrogen	0.08,11.5	1.2,172	30	200	220V/380V/415V/440V 50/60HZ	water cooling
