Oil lubricate screw air compressor series blue

Oil lubricate screw air compressor series blue

عنصر المنتج：Oil lubricate screw air compressor series blue

Oil lubricate screw air compressor

Oil lubricate

screw air compressor

air compressor

الوصف

SYNCRHONOUS DESIGN: Permanent magnet synchronous motor has no slip, no electrical excitation and low heat loss. The motor has a5~12% higher efficiency compared to asynchronous motor of the same capacity and maintains high efficiency even when running at ow speed.

SOFT START DESIGN: The soft start of the air compressor significantly reduces the impact on both electrical and mechanical components as compared to a full voltage startor star delta start designs. Inverter control ensures smooth acceleration and deceleration of the compressor which translates to smooth driving voltage and current characteristic curve.

SILENT: Permanent magnet variable speed series air compressor is designed to operate with low noise level. A majority of variable speed air compressor is utilized to run below its rated full speed and therefore reduces the noise level even further by running at lower speeds. Lower noise level also relates to lower mechanical wear and tear and therefore extends the lifetime of the equipment.

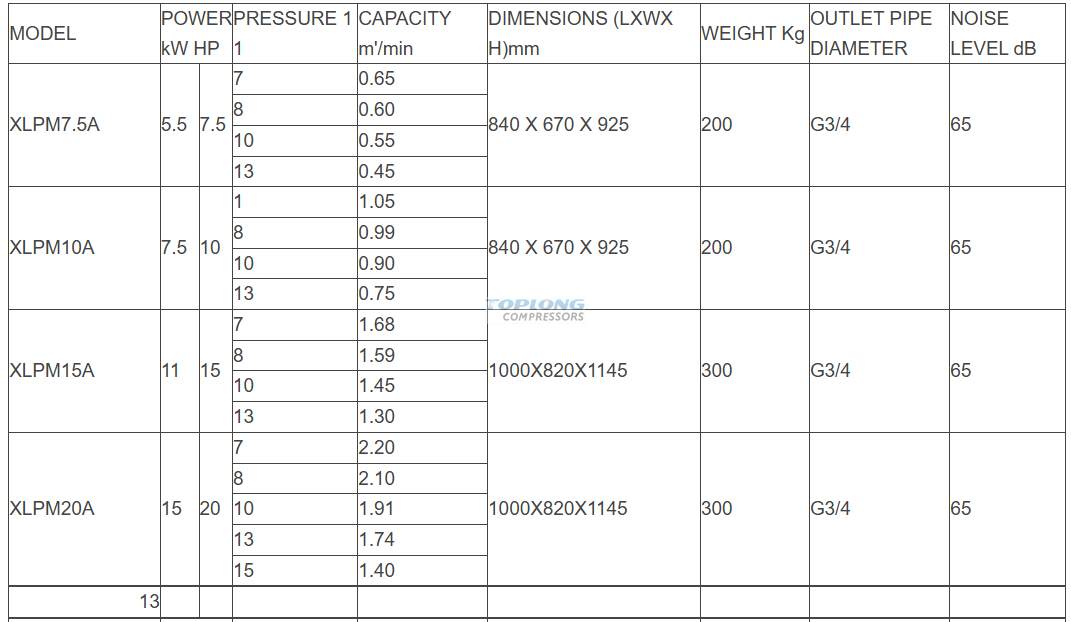

MODEL	POWER kW HP		PRESSURE 1 1	CAPACITY m'/min	DIMENSIONS (LXWX H)mm	WEIGHT Kg	OUTLET PIPE DIAMETER	NOISE LEVEL dB
XLPM7.5A	5.5	7.5	7	0.65	840 X 670 X 925	200	G3/4	65
			8	0.60
			10	0.55
			13	0.45
XLPM10A	7.5	10	1	1.05	840 X 670 X 925	200	G3/4	65
			8	0.99
			10	0.90
			13	0.75
XLPM15A	11	15	7	1.68	1000X820X1145	300	G3/4	65
			8	1.59
			10	1.45
			13	1.30
XLPM20A	15	20	7	2.20	1000X820X1145	300	G3/4	65
			8	2.10
			10	1.91
			13	1.74
			15	1.40

13

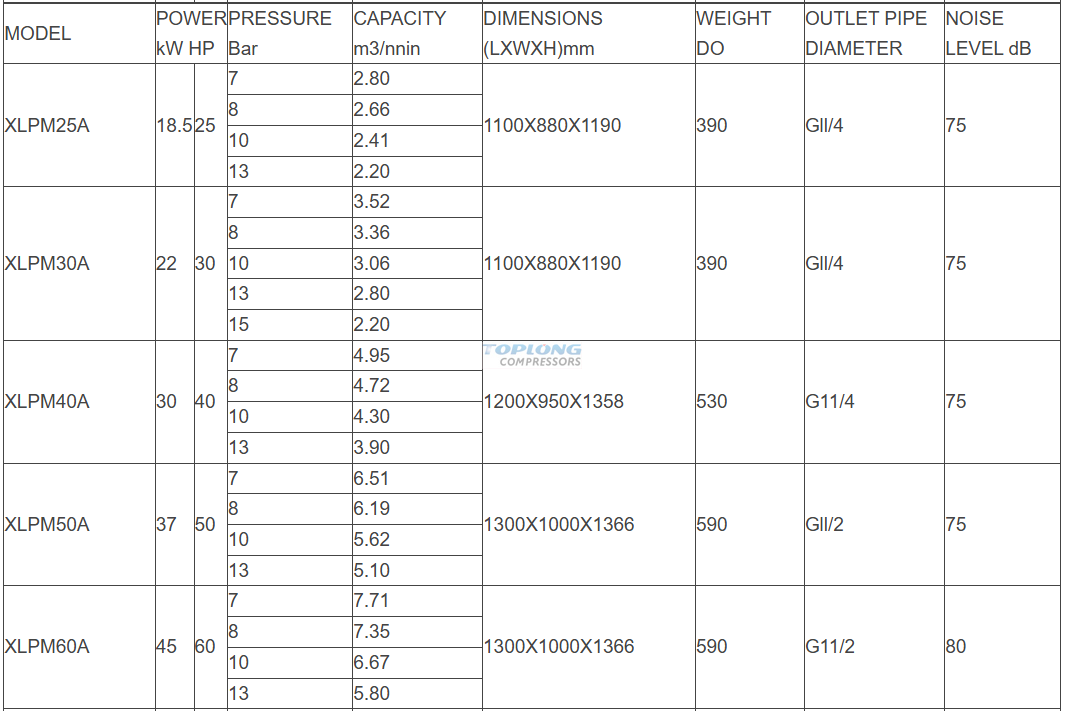

MODEL	POWER kW HP		PRESSURE Bar	CAPACITY m3/nnin	DIMENSIONS (LXWXH)mm	WEIGHT DO	OUTLET PIPE DIAMETER	NOISE LEVEL dB
XLPM25A	18.5	25	7	2.80	1100X880X1190	390	Gll/4	75
			8	2.66
			10	2.41
			13	2.20
XLPM30A	22	30	7	3.52	1100X880X1190	390	Gll/4	75
			8	3.36
			10	3.06
			13	2.80
			15	2.20
XLPM40A	30	40	7	4.95	1200X950X1358	530	G11/4	75
			8	4.72
			10	4.30
			13	3.90
XLPM50A	37	50	7	6.51	1300X1000X1366	590	Gll/2	75
			8	6.19
			10	5.62
			13	5.10
XLPM60A	45	60	7	7.71	1300X1000X1366	590	G11/2	80
			8	7.35
			10	6.67
			13	5.80

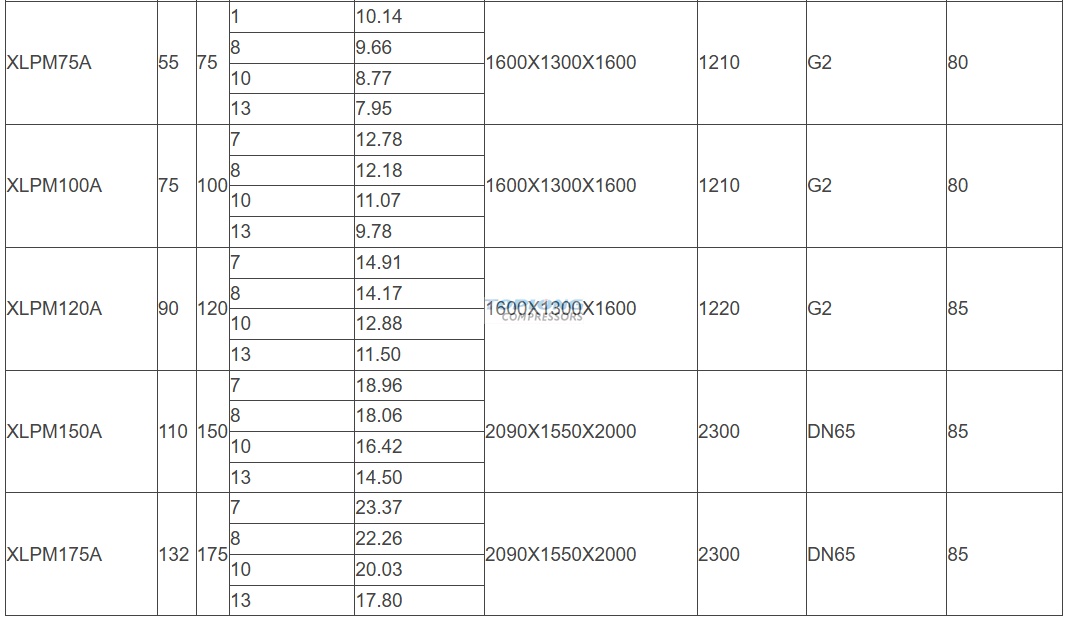

XLPM75A	55	75	1	10.14	1600X1300X1600	1210	G2	80
			8	9.66
			10	8.77
			13	7.95
XLPM100A	75	100	7	12.78	1600X1300X1600	1210	G2	80
			8	12.18
			10	11.07
			13	9.78
XLPM120A	90	120	7	14.91	1600X1300X1600	1220	G2	85
			8	14.17
			10	12.88
			13	11.50
XLPM150A	110	150	7	18.96	2090X1550X2000	2300	DN65	85
			8	18.06
			10	16.42
			13	14.50
XLPM175A	132	175	7	23.37	2090X1550X2000	2300	DN65	85
			8	22.26
			10	20.03
			13	17.80
