Paintball compressor,high-pressure compressors, in line with the national design standards of ventilating, coal mine, military, ship, diving and marine, have reached the GB18435-2001 standard of diving breathing gas, and have filled the blank of high-pressure air compressors. By the European H0BRAND detection, the exported products accords with the EN12021 international standard of breathing air compressor, reaching the world-class level
Features
1. Excellent portability
2. Auto stop after full of cylinder
3. 30Mpa/4500psi max pressure
4. Magnetic starter
5. Pressure adjustment system with automatic stopping function
6. High pressure cut-off valve for overload protection
7. Separator and filter system with activated carbon,molecular
Options
1. Pressure switch
2. Hour meter
Model |
BW200 |
BW265 |
Flow rate |
200 L/min 7 cfm |
265 L/min 9.5 cfm |
Filling time |
20 minutes for 12L tank |
15 minutes for 12L tank |
Working pressure |
300bar /4500psi |
300bar /4500psi |
Engine power |
Electric 4.0kw/5.0hp 50/60hz three phase |
Electric 5.5kw/7.5hp 50/60hz three phase |
Driven |
belt |
belt |
Lubricate |
splash |
splash |
Starter |
ON/OFF button |
ON/OFF button |
Switch |
Auto stop |
Auto stop |
Condensate drain |
manual |
manual |
Filling hose connect |
2 |
2 |
Dimensions (H-W-D) |
700-960-570 mm |
700-960-570 mm |
Weight |
150 kg |
160 kg |
Noise level |
80 db(A) |
80 db(A) |

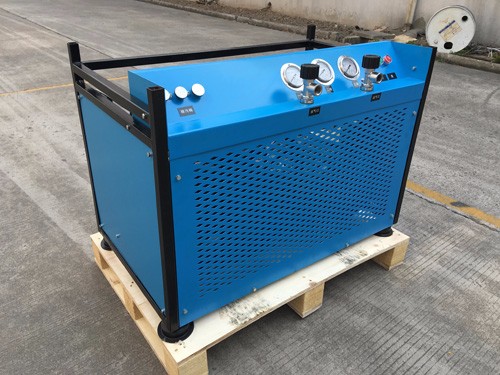

The enclosed design of this electric driven compressor make it run in low speed and low noise level. It is an extremely reliable unit and is ideal for filling station of commercial. Fill two cylinders at same time.
