Production introduction

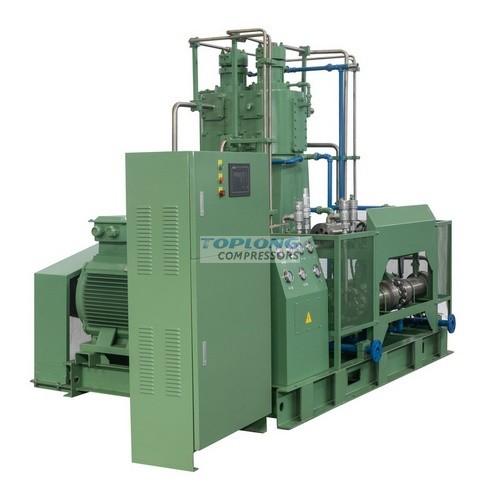

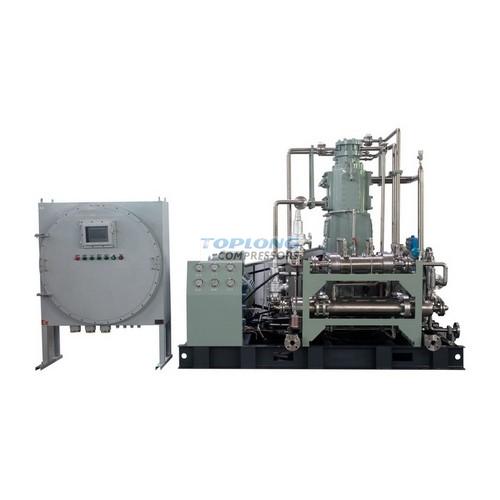

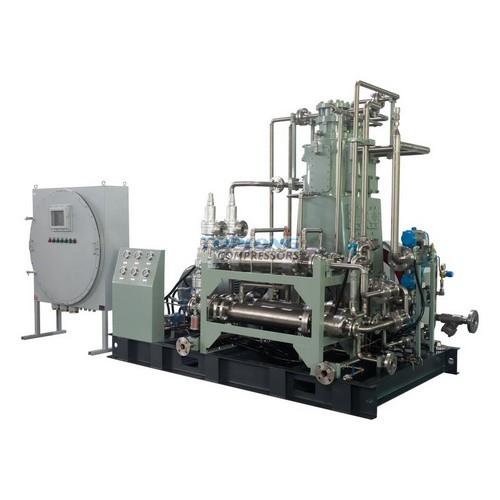

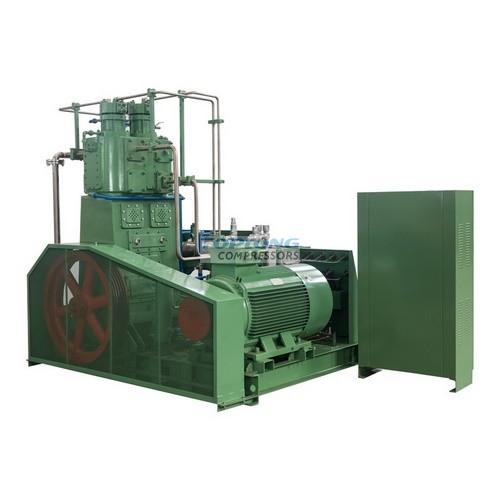

This compressor is an oil-free gas compressor. During operation, the compressed gas medium is always clean and oil-free, suitable for use scenarios that require intake pressure boosting. It can be working for24hours continuous operation, with maintenance intervals of up to 4000-6000 hours。
Characteristics of this compressor
Adopting vertical cylinder compression, the cylinder is perpendicular to the horizontal plane, utilizing the potential energy of the piston itself to reduce power consumption, reduce usage costs, and achieve significant economic benefits, The water-cooled cooling method ensures good cooling effect of the compressor, effectively extending the service life of key vulnerable parts. The inlet is equipped with low inlet pressure protection, the exhaust end is equipped with high exhaust pressure protection, and the exhaust temperature protection is also high, Each level is equipped with a safety valve and temperature display. If there is excessive temperature and pressure, the system will alarm and shut down to ensure safe operation. There is a forklift position at the bottom of the compressor, which can easily transfer to the construction site.
Here is our oil free nitrogen compressor technical data
|
Project and parameters |
||||
|
Medium |
Nitrogen |
Quantity |
1 |
|
|
Inter pressure MPa（G） |
0.6 |
Inlet temperature ℃ |
0～35 |
|
|
Discharge pressure Mpa（G） |
25.0 |
Discharge temperature (After cooling) ℃ |
≤55 |
|
|
Volume flow Nm3/h |
180 (Inter pressure=0.6 MPa） |
Piston stroke mm |
140 |
|
|
Model |
GZW-180/6-250 |
Compressed series |
4 |
|
|
Structural type |
Reciprocating piston vertical skid type |
Number of cylinders |
4 |
|
|
Speed of crankshaft r/min |
285 ※ |
Voltage V |
350 |
|
|
Cooling method |
air cooling |
cooling water flow t/h |
--- |
|
|
Shaft power KW |
≤40 |
Motor speed r/min |
980 |
|
|
Motor |
55kw three-phase 380V 50HZ ※ |
|||
|
Outline dimension mmXmmXmm |
L2700×W1850×H2500 ※ |
Unit weight T |
4.3 ※ |
|
|
Interface size mm |
Inter DN40/Outer DN15/cooling water--- |
|||
|
Driving mode |
belt drive |
|||
|
Material is partly in contact with the gas
|
Body, slide |
cast iron |
||
|
|
Piston ring, filler |
filled polytetrafluoroethylene |
||
|
|
Gas valve, cylinder head |
stainless steel |
||
|
Scope of supply |
Main engine, motor, cooler, oil pump, skid-mounted chassis, start cabinet, air intake filter, primary instrument and control components, safety valve, special tools, import and export matching flange, random documents, etc. |
|||
|
Other matters needing attention |
1、Lube oil user is self-provided； 2、※Column data is for user reference |
|||
|
Delivery time |
Contract signing, 80 working days after the advance payment to the account |
|||
