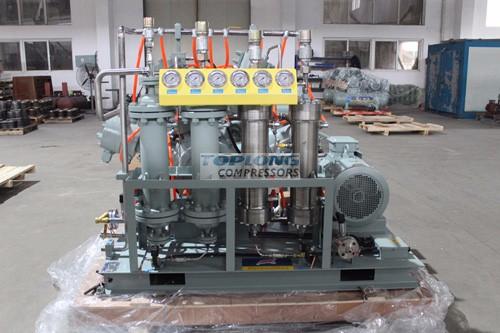

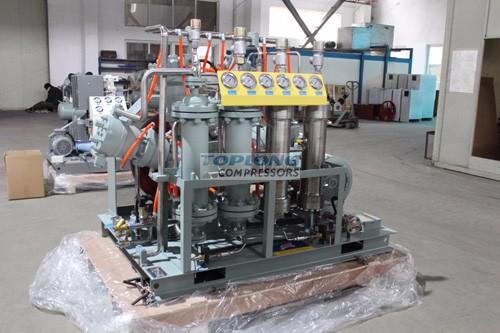

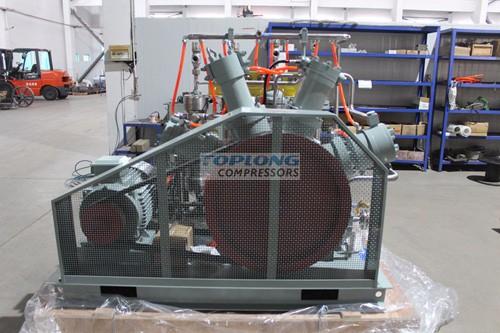

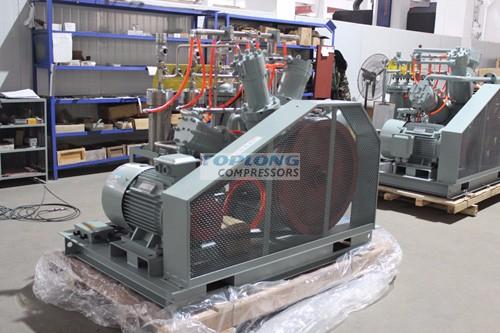

pressure swing high pressure nitrogen booster compressor for nitrogen generator

pressure swing high pressure nitrogen booster compressor for nitrogen generator

عنصر المنتج：GSW-60/5-150

silent working

24 hours heavy duty working

CE and iso 9001

50 days for ETD time

الوصف

pressure swing high pressure nitrogen booster parameters:

1. Principle: Oil-free reciprocating piston

2. Cooling type: air or water cooling

3. Power consumption: ≤55kw

4. Speed: 300-560rpm

5. Flow rate: ≤1000Nm3/h

6. Inspiratory pressure: 0-0.5Mpa

7. Exhaust pressure: ≤30Mpa

8. Compression level: 1-4

Main features of high pressure nitrogen booster compressor for nitrogen generator products:

All oil-free lubrication is clean and non-polluting.

High efficiency and low energy consumption.

High reliability, continuous operation for 24 hours.

The unit is air-cooled or water-cooled to reduce installation costs.

Compact structure, low operating and maintenance costs.

nitrogen compressor for nitrogen generator parameters:

Model 型号	Working medium 工作介质	suction pressure 进气压力(Mpa,Psig)	Discharge pressure 排气压力(Mpa,Psig)	Motor.KW 电机功率	Flow rate Nm3/hr 流量	Voltage 电源电压	Cooling way 冷却方式
GSW-50/6-150	nitrogen	0.6,85	15,2150	18.5	50	220V/380V/415V/440V 50/60HZ	water cooling
GSW-50/6-200	nitrogen	0.6,85	20,2875	18.5	50	220V/380V/415V/440V 50/60HZ	water cooling
GSW-60/3-150	nitrogen	0.3,43	15,2150	18.5	60	220V/380V/415V/440V 50/60HZ	water cooling
GSW-60/6-150	nitrogen	0.6,85	15,2150	18.5	60	220V/380V/415V/440V 50/60HZ	water cooling
GSW-60/7-140	nitrogen	0.7,100	14,2012	18.5	60	220V/380V/415V/440V 50/60HZ	water cooling
GSW-75/5.5-100	nitrogen	0.55,80	10,1437	18.5	75	220V/380V/415V/440V 50/60HZ	water cooling
GSW-90/0.75-100	nitrogen	0.075,11	10,1437	30	90	220V/380V/415V/440V 50/60HZ	water cooling
GSW-90/4-200	nitrogen	0.4,57	20,2875	30	90	220V/380V/415V/440V 50/60HZ	water cooling
GSW-102/10-150	nitrogen	1,145	15,2150	22	102	220V/380V/415V/440V 50/60HZ	water cooling
GSW-125/5-125	nitrogen	0.5,72	12.5,1800	30	125	220V/380V/415V/440V 50/60HZ	water cooling

Kinly note ,if you have high pressure nitrogen booster compressor for nitrogen generator demand please tell us follows information when you send inquiry:

*Compressor working medium:

If single gas ,how many purity ? if mixed gas , what’s gas content lit ?

*Suction pressure(gauge pressure): barg

*Exhaust pressure(gauge pressure): barg

*Flow rate per hour for compressor: (Nm3/hr):

Compressor gas suction temperature ?

Compressor working hours per day : hours

Compressor working site altitude : m

Environment temperature ℃:

low three phase voltage and frequency :
