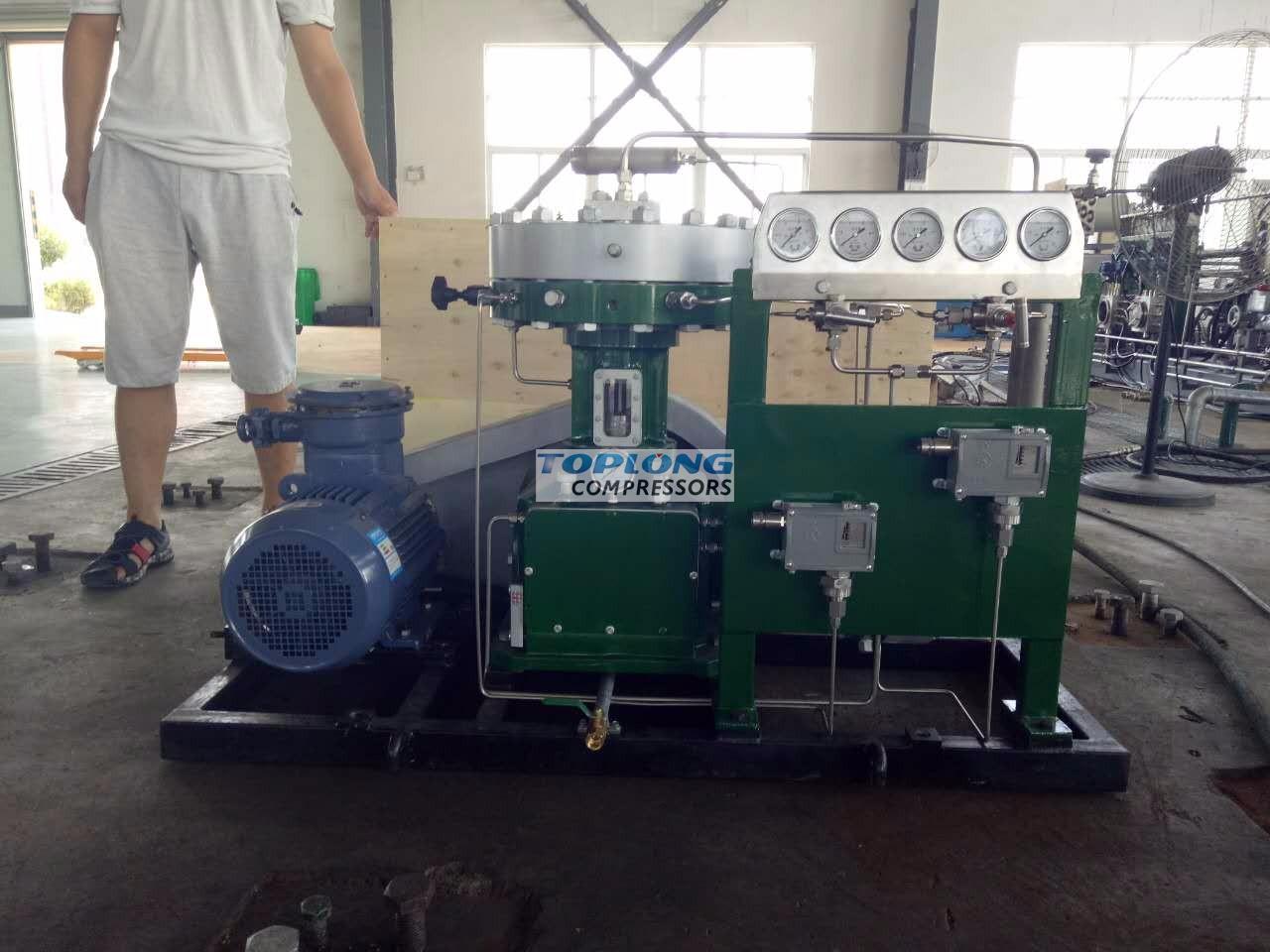

5m3 high pressure medical booster oxygen diaphragm compressor

descrizione

high pressure diaphragm oxygen compressor, is a reciprocating compressor that reciprocates in a cylinder to compress and transport gas.
The diaphragm compressor is a special type of volumetric compressor with large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high purity, rare and precious, flammable, explosive, toxic and harmful, corrosive and high pressure gases.

high pressure medical oxygen diaphragm  compressor, are one of many types of compressors. It has a special name because it has a special diaphragm that separates the compressed medium from the outside. The diaphragm compressor can also be referred to simply as a membrane compressor. Due to its special structure, the diaphragm compressor does not need lubrication, and the sealing performance is very good. The compressed medium is not in contact with any slip agent, so it can compress the gas with very high purity, generally achieving a purity of 99.999%, which is more suitable for compression. And transport all kinds of precious rare gases. In addition, for corrosive, radioactive, toxic, and explosive gases, diaphragm compressors are also particularly suitable. The diaphragm compressor has good heat dissipation and can adopt a high compression ratio, so its pressure range is wide, and the exhaust pressure can be up to 500MPa. It is used in the food industry, petroleum industry chemical industry, electronics industry, nuclear power plant, aerospace, military equipment, medicine, scientific research and other fields.

G1 medical diaphragm oxygen compressor high pressure bosster|nitrogen compressor|is a non-standard compressor product, G1 diaphragm compressor is divided into single cylinder GZ1 and double cylinder GL1 and GD1 diaphragm compressor, G1 diaphragm compressor piston force 0.7TON, Customized according to different customer parameters, requirements and environment!
GZ diaphragm compressor is composed of cylinder block, cylinder head, crankshaft connecting rod, diaphragm, oil circuit, gas path, water cooling system and motor drive. The G1 and G2 diaphragm compressor series products are available from our company. Cooling method: air cooling and water cooling.
Company product features
Ø Advanced oil-free disc cylinder component structure reduces the difficulty of assembly process; reduces sealing surface; alarm when leakage medium leaks, improves the reliability of the whole machine.
Ø The oil consumption of the whole machine hydraulic oil is small, which is 1/2 of the oil used in the traditional diaphragm compressor. The economic advantage is very obvious for the oxygen compressor.
Ø New membrane cavity curve, Kezan
Nie or HOERBIGER's air valve,
Leading diaphragm surface treatment technology
Improves the work of the compressor
Efficiency, achieving high energy efficiency,
Moreover, the life of the vulnerable piece diaphragm and the air valve is improved. Diaphragm and air valve have a guaranteed average life of 5000
Hours and 8,000 hours or more.
Ø Full-featured built-in oil supply and pressure regulation system for compressor lubrication and oil
Cylinder work provides pressure stable, clean quality lubricants and oils
The road system does not leak, completely different from the traditional diaphragm compressor oil system.
It belongs to our company's patented technology.
Ø User-friendly instrument interface and middle window, simple oil and gas pipeline.

G1 type oxygen diaphragm  compressor high pressure medical booster technical data as follows

Characteristics of G1 series diaphragm compressor
Small diaphragm compressor:
Structure form: Z, L type
Lubrication method: splash lubrication
Replenishment method: forced replenishment
Cooling method: water or air cooling
Repair single piece maximum weight: 70-80kg
Maximum space for maintenance: no less than 1 meter around

Model	Flow Rate Nm3/hr	Suction Pressure .Mpa	Discharge pressure.Mpa	Water Consumption L/hr	Speed .rpm	Motor.KW	Dimension L*W*H mm	Weight kgs
GD0-3/200	3	atmosphere	20	300	750	2.2	600×500×400	200
GL1-5/200	5	atmosphere	20	300	450	3	1350×600×950	550
GL1-10/13	10	atmosphere	1.3	300	450	3	1350×600×950	550
GL1-10/13-200	10	1.3	20	300	450	3	1350×600×950	550
GL1-5/1-160	5	0.1	16	400	450	3	1350×600×950	550
GL1-10/4-160	10	0.4	16	400	400	4	1350×600×950	520
GL1-8/2.5-160	8	0.25	16	400	400	3	1350×600×950	520
GL1-10/7-150	10	0.7	15	300	400	4	1350×600×950	520
GL1-5/6-200	5	0.6	20	400	400	3	1350×600×950	520
GL1-10/6-160	10	0.6	16	400	400	4	1350×600×950	500
GL1-5/13-400	5	1.3	40	300	400	3	1350×600×950	520
GL1-15/10-150	15	1	15	400	400	4	1350×600×950	520
GL1-10/7-320	10	0.7	32	400	450	4	1350×600×950	520
GL1-5/4-350	5	0.4	35	300	400	3	1350×600×950	450
GZ1-5/13	5	atmosphere	1.3	200	400	1.5	1100×600×950	420
GZ1-5/13-200	5	1.3	20	200	450	1.5	1100×600×950	400
GZ1-5/30-400	5	3	40	300	400	3	1100×600×950	420
GZ1-70/30-35	70	3	35	200	400	4	1100×600×950	420
