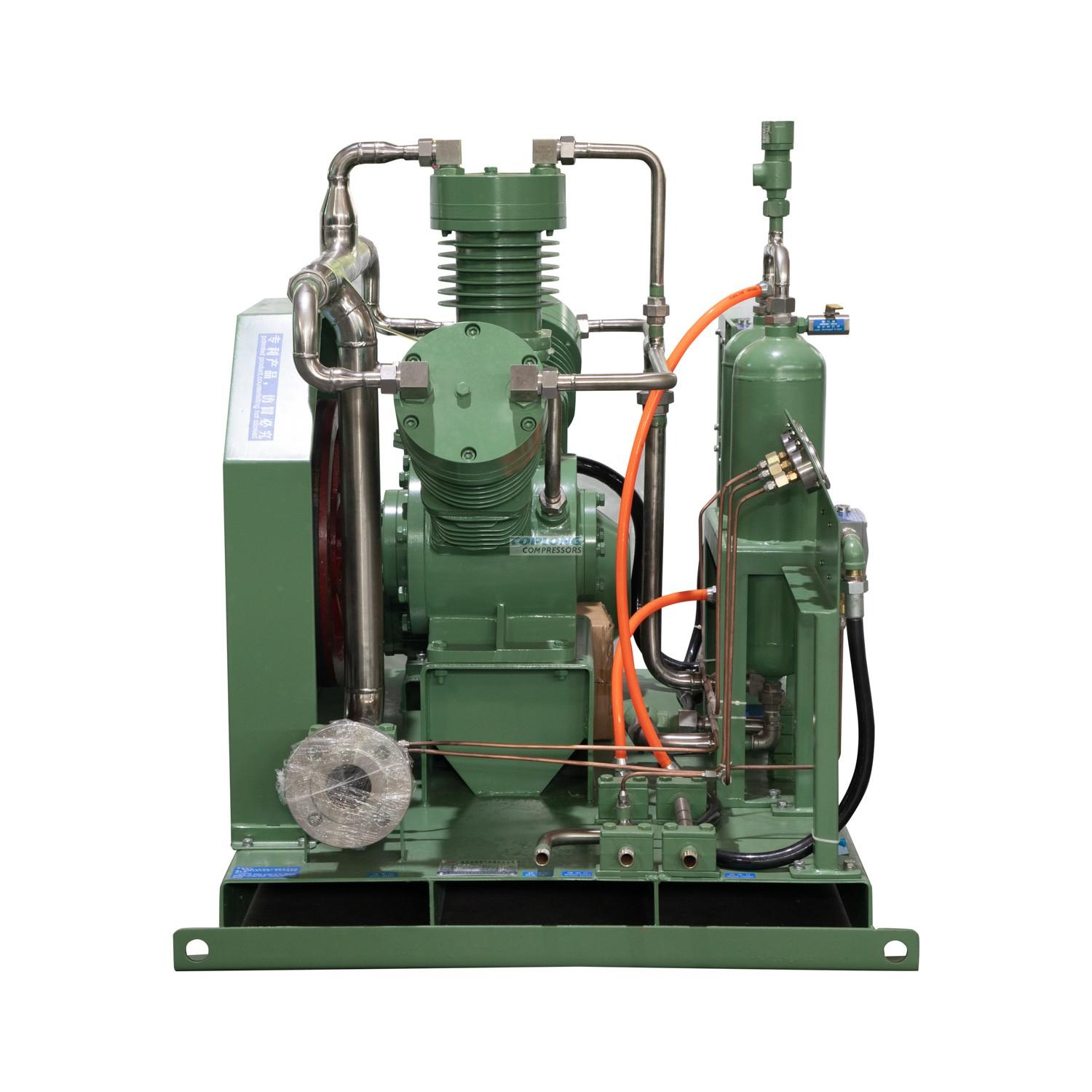

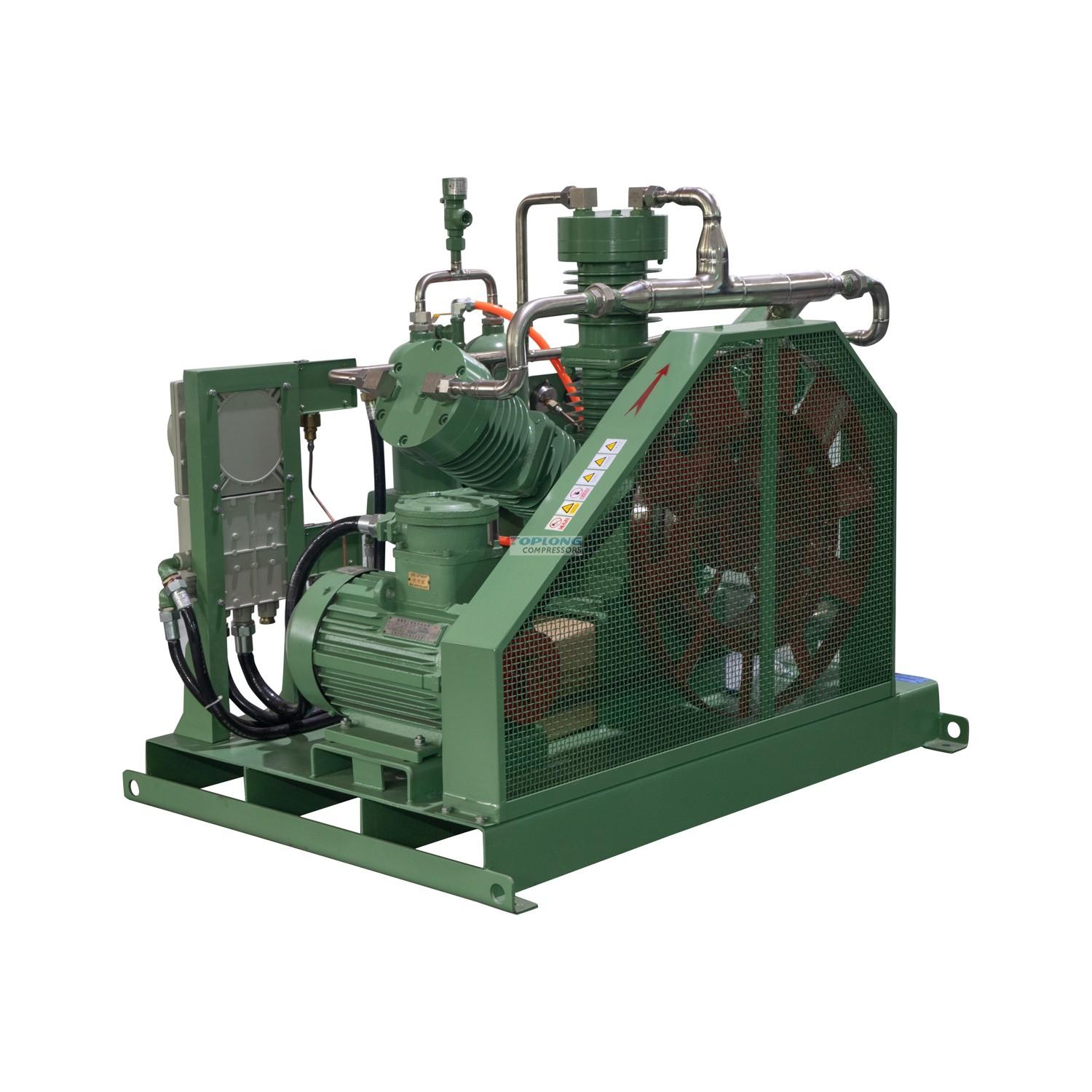

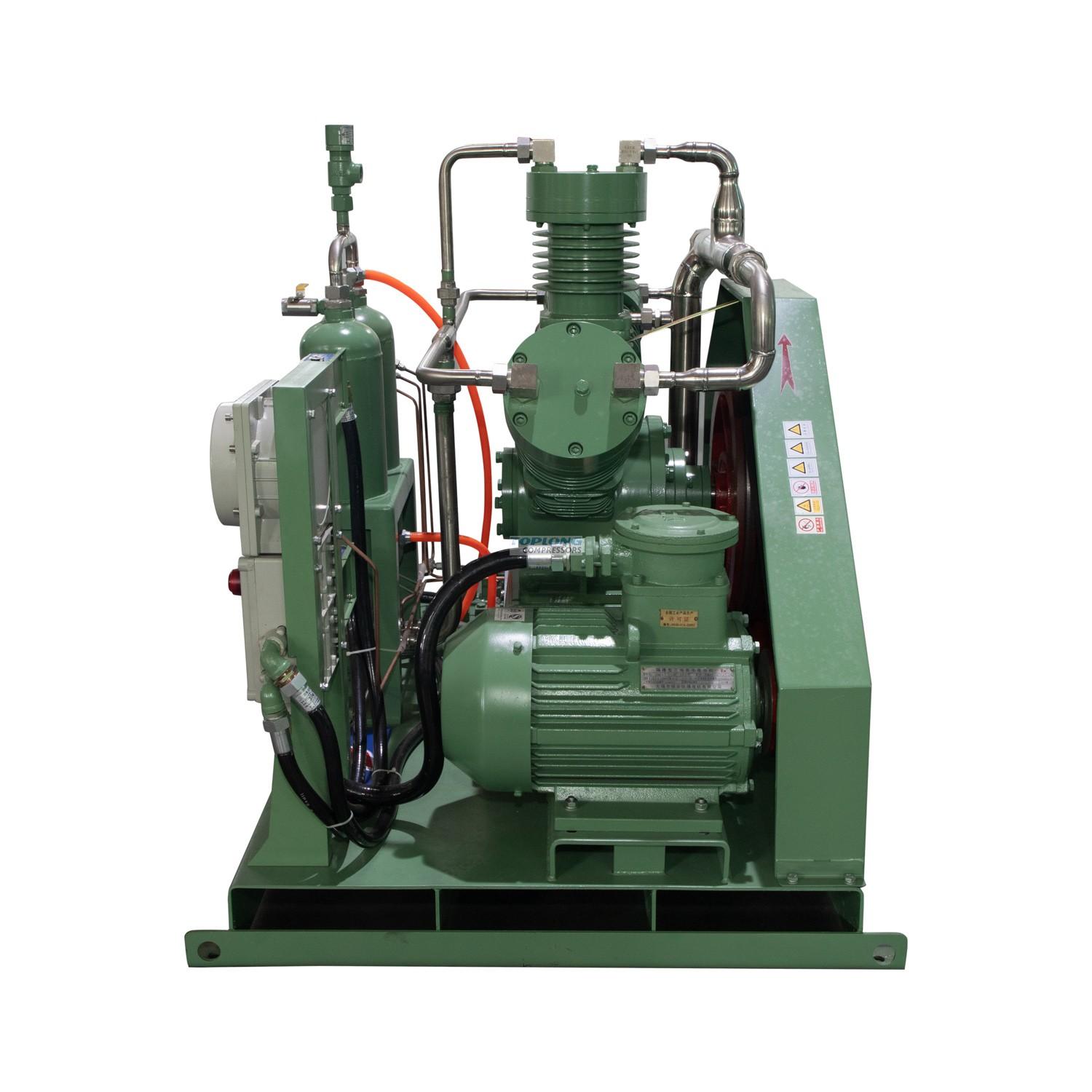

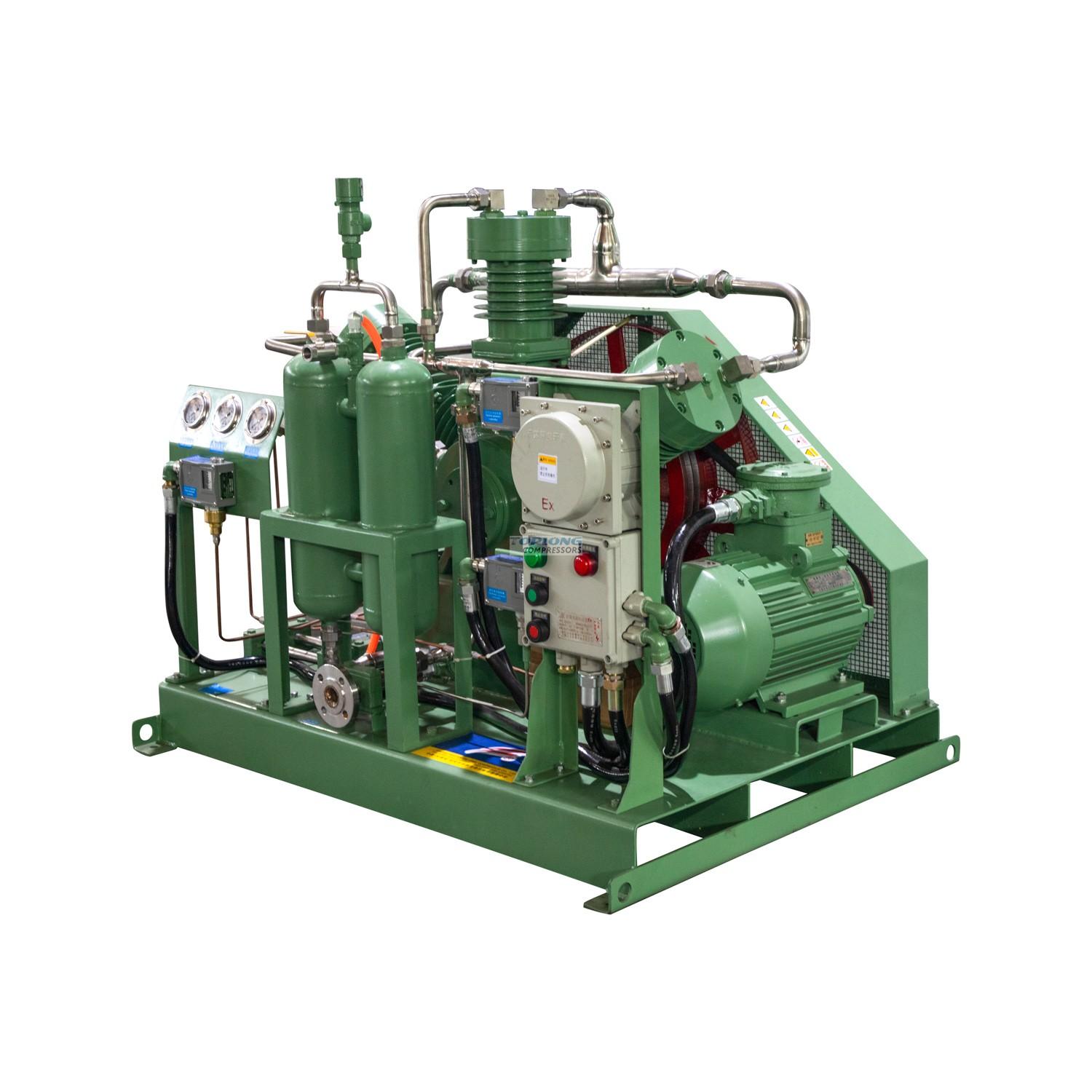

Working principle of the hydrogen compressor
Hydrogen compressor structure is more complex, the more important components are cast iron cylinder, cast iron cylinder sleeve, cast iron cylinder head, cast iron crankshaft, connecting rod, crosshead (including crosshead slide), filler, piston (including piston ring), scraping oil ring, stainless steel piston connecting rod, stainless steel gas valve, etc., in addition to some auxiliary equipment, such as gas filter, buffer, lubricating oil pipeline, etc. Like other reciprocating compressors, the hydrogen compressor comprises three processes: suction, compression, and exhaust.Under the motor drive, the crankshaft drives the crosshead, the piston connecting rod and the piston back and forth in the cylinder, and the gas is finally discharged through the air valve under the piston compression.
Technical data
|
Project and parameters |
||||
|
Medium |
Hydrogen |
Quantity |
1 |
|
|
Inter pressure MPa（G） |
0.4 |
Inlet temperature ℃ |
≤ 40 |
|
|
Discharge pressure Mpa（G） |
20.0 |
Discharge temperature (After cooling) ℃ |
≤ 50 |
|
|
Volume flow Nm3/h |
5.6 |
Piston stroke mm |
75 |
|
|
Model |
GHW-5.6/4-200 |
Compressed series |
3 |
|
|
Structural type |
All oil-free lubrication W type |
Number of cylinders |
3 |
|
|
Speed of crankshaft r/min |
300 ※ |
Voltage V |
380 |
|
|
Cooling method |
water-cooling |
cooling water flow t/h |
0.5 |
|
|
Shaft power KW |
≤2.4kw |
Motor speed r/min |
730 |
|
|
Into, out of the gas interface mm |
15、M16*1.5 |
Entry and exit water interface mm |
15 |
|
|
Motor |
3KW 380V 50Hz dⅡCT4 ※ |
|||
|
Outline dimension mmXmmXmm |
1500X800X1100 ※ |
Unit weight T |
0.64 ※ |
|
|
Driving mode |
belt drive |
|||
|
Material is partly in contact with the gas
|
Gas cylinder |
stainless steel |
||
|
|
Gas valve |
stainless steel |
||
|
|
Pipe, cooler |
Stainless steel, aluminum alloy and stainless steel |
||
|
Scope of supply |
Main engine, motor, skid-mounted chassis, start cabinet, intake filter, front machine meter and control components, safety valve, random documents, random spare parts, etc. (Note: subject to the final technical agreement). |
|||
|
Other matters needing attention |
Seal mode: Mechanical seal. Tip: dangerous gas, users must do a good job of daily security check work! |
|||
|
Delivery time |
The contract signing,50 working days after the advance payment to the account |
|||
