descrizione

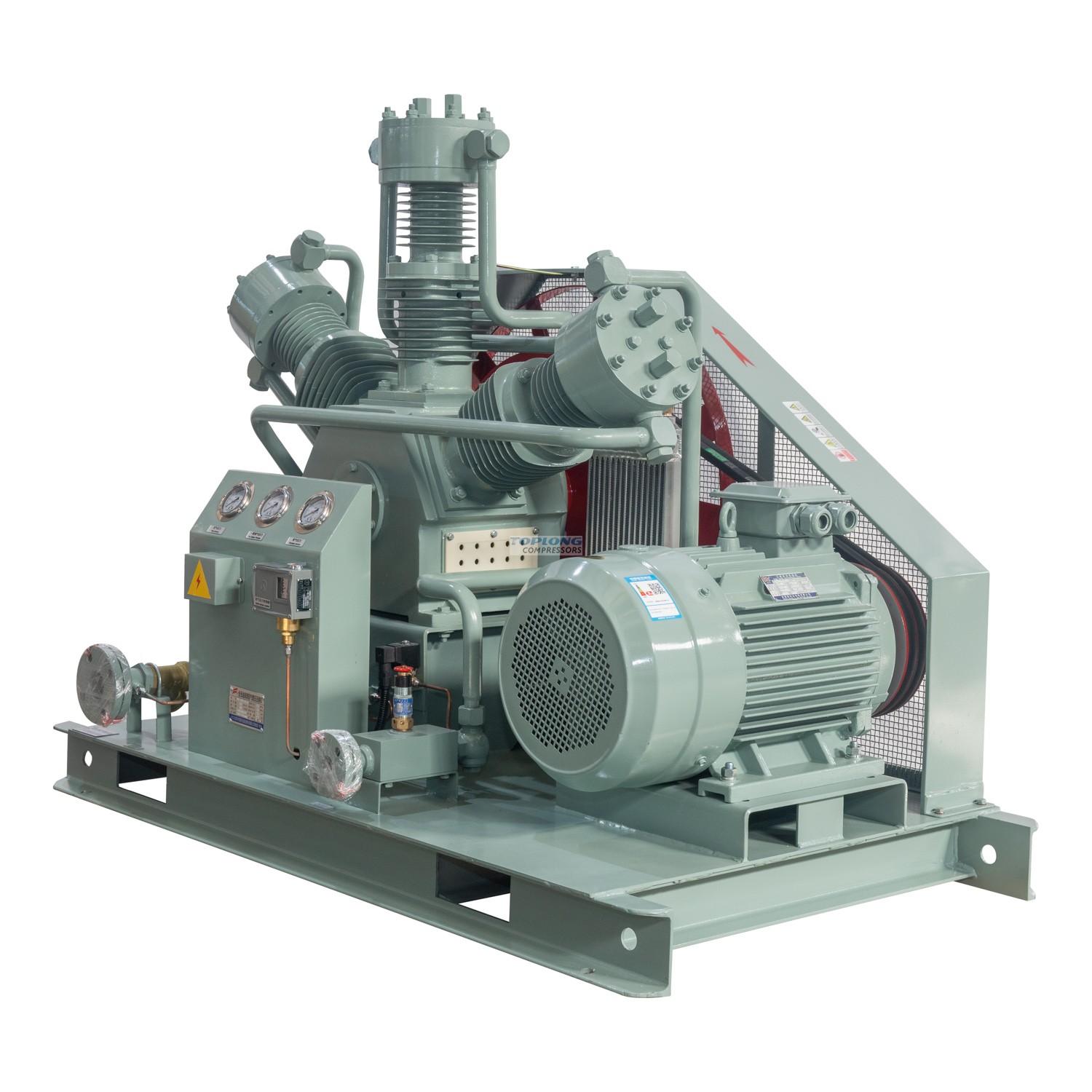

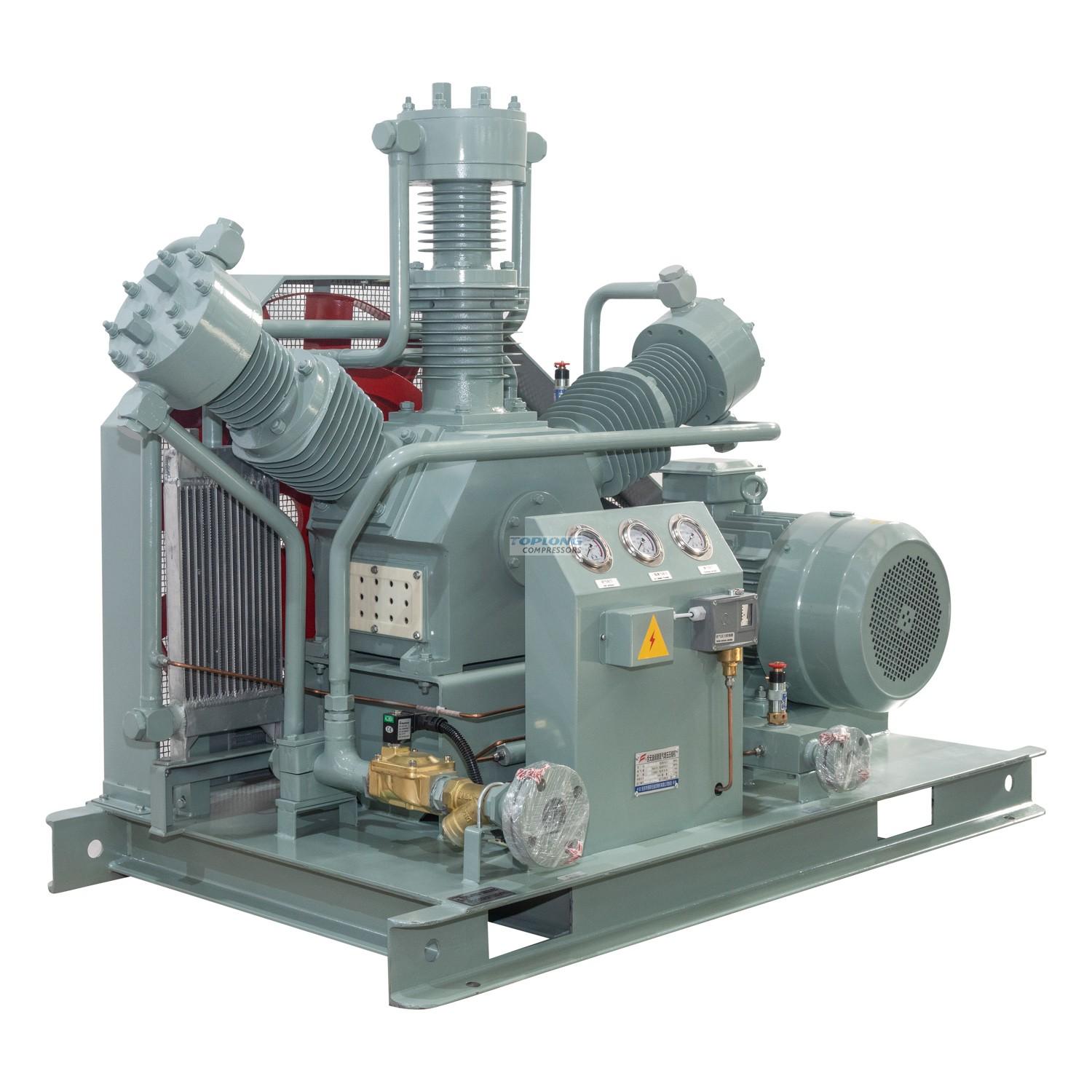

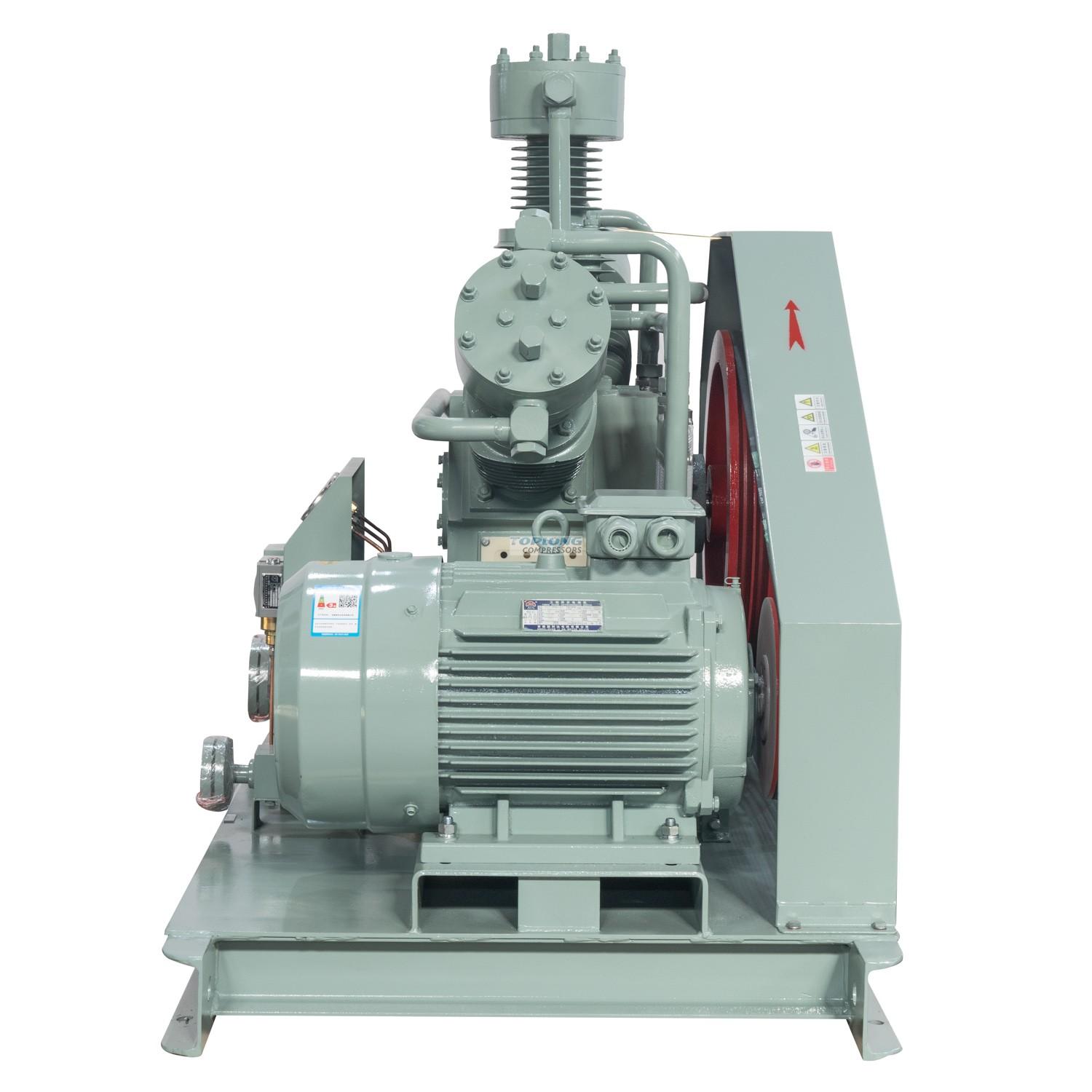

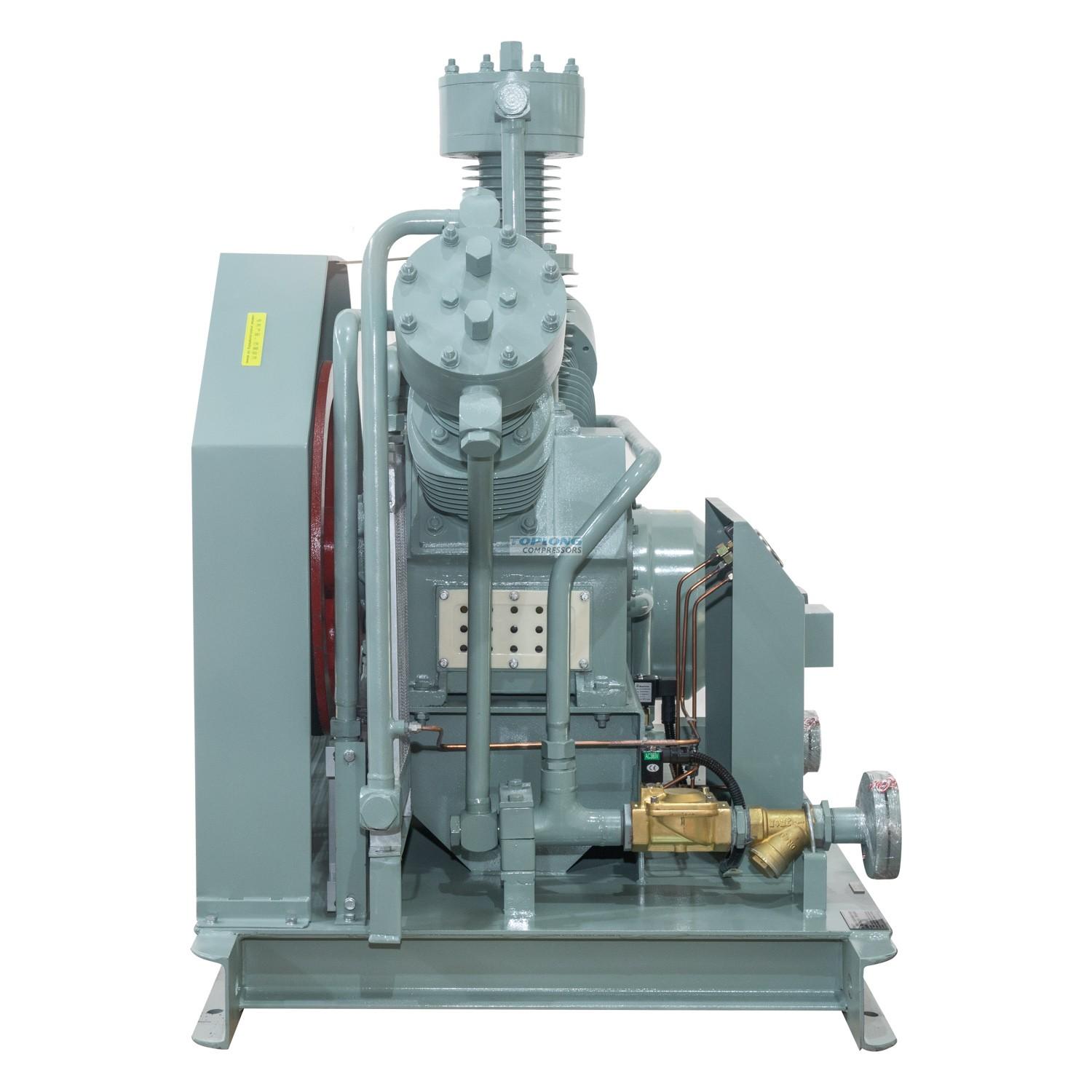

VW TYPE LOW PRESSURE NITROGEN COMPRESSOR
This nitrogen compressor is suitable for inlet pressure 5-7barg(70-100psig), exhaust pressure 20-40barg, Low flow laser cutting system.
Characteristics of this compressor
It adopts two-stage compression, air-cooling, which is convenient to use, and ensures good cooling effect of the compressor. The inlet is equipped with an intake pressure controller, the exhaust end is equipped with a pressure controller, and each stage is equipped with a safety valve, If the display is over-temperature and over-pressure. the system will alarm and stop. ensuring safe operation. There is a forklift position at the bottom of the compressor, which can be easily transferred to the construction site.
Here is our oil free nitrogen compressor technical data
|
项目及参数 Project and parameters |
|||
|
介质 Medium |
氮气 Nitrogen |
数量 Quantity |
1 |
|
进气压力 MPa（G） Inlet pressure MPa (G) |
0.5 |
进气温度 ℃ Inlet temperature ℃ |
30 |
|
排气压力 Mpa（G） Discharge pressure Mpa (G) |
15.0 |
排气温度（冷却后）℃ Exhaust temperature (After cooling) ℃ |
≤45 |
|
容积流量 Nm3/h Flow rate Nm3/h |
20（进气压力0.5MPa） 20(Inter pressure=0.5Mpa) |
活塞行程 mm Piston stroke mm |
75 |
|
型号 Model |
GWW-20/5-150 |
压缩级数 Compressed series |
3 |
|
结构型式 Structural type |
W型 W type |
气缸数量 Number of cylinders |
3 |
|
曲轴转速 r/min Speed of crankshaft r/min |
440 ※ |
电压 V Voltage V |
380 |
|
冷却方式 Cooling method |
水 冷 water-cooling |
冷却水流量 t/h Cooling water flow t/h |
0.8 |
|
轴功率 KW Shaft power kw |
≤5.0 |
电机转速 r/min Motor speed r/min |
1440 |
|
电机 Main motor |
7.5kw 380V 50Hz 不含电机 ※ 7.5kw 380V 50Hz Do not contain motor※ |
||
|
外形尺寸 Outline dimension mmXmmXmm |
1400*850*1250 ※ |
机组重量 T Unit weight T |
0.74 ※ |
|
进出口尺寸 Import and export size |
进DN25、排DN15 Enter DN25, Outer DN15 |
进出水接口 Water interface in and out |
DN20 |
|
传动方式 Driven mode |
皮带传动 belt drive |
||
|
主体材料 Material of main components
|
机身、曲轴 Body, crankshaft |
铸铁 cast iron |
|
|
|
气阀 air valve |
不锈钢 stainless steel |
|
|
|
活塞环、导向环 Piston ring, guide ring |
填充聚四氟乙烯 filled polytetrafluoroethylene |
|
|
供货范围 Scope of supply |
主机， 冷却器、撬装底盘、启动柜、进气过滤器、安全阀、出口配对法兰、随机文件等。 Main engine, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, outlet matching flange, random file, etc. |
||
|
其他注意事项 Other matters needing attention |
※ 栏数据供用户参考，机器出厂时有出入。 ※The column data is for the user's reference |
||
|
交货期 Delivery time |
合同签订，预付款到账后 40 个工作日 Contract signing, 40 working days after the advance payment to the account |
||
