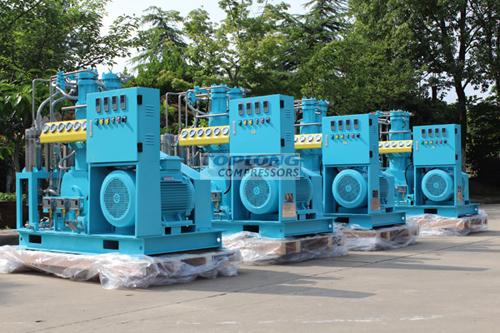

40m3 high pressure cylinder filling oxygen air compressor

Description

high pressure air oxygen compressor parameters:

1. Principle: Oil-free reciprocating piston

2. Cooling type: air or water cooling

3. Power consumption: ≤55kw

4. Speed: 300-560rpm

5. Flow rate: ≤800Nm3/h

6. Inspiratory pressure: 0-0.5Mpa

7. Exhaust pressure: ≤30Mpa

8. Compression level: 1-4

Main features of cylinder filling air oxygen compressor products:

All oil-free lubrication is clean and non-polluting.

High efficiency and low energy consumption.

High reliability, continuous operation for 24 hours.

The unit is air-cooled or water-cooled to reduce installation costs.

Compact structure, low operating and maintenance costs.

high pressure microboost miniature oxygen compressor parameters:

Model	GOW-40/4-150
Power(Hp,Kw)	15KW
Working Pressure(Bar,Psi)	150,2160
Air Delivery(L/min,CFM)	40 Nm3/Hr
Inlet pressure ,outlet pressure	0.3-0.4Mpa, 10Mpa/15Mpa/20Mpa/25Mpa/30Mpa
Speed(r.p.m)	200-400
pressure stage	4
Net Weight(Kgs)	900
Cooling way	Water cooling

Kinly note ,if you have cylinder filling high pressure air oxygen compressor inquiry please tell us follows information when you send inquiry:

*Compressor working medium:

If single gas ,how many purity ? if mixed gas , what’s gas content lit ?

*Suction pressure(gauge pressure):     barg

*Exhaust pressure(gauge pressure):     barg

*Flow rate per hour for compressor: (Nm3/hr):

Compressor gas suction temperature ?

Compressor working hours per day :    hours

Compressor working site altitude :   m

Environment temperature ℃:

low three phase voltage and frequency :
