Description

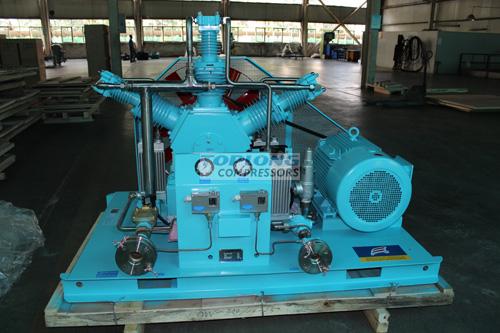

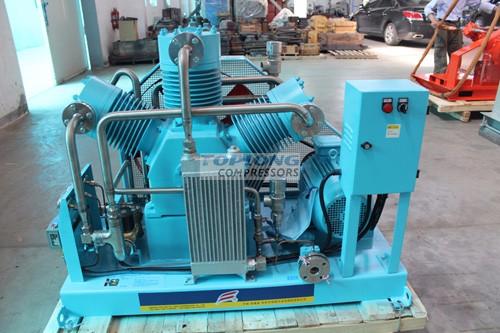

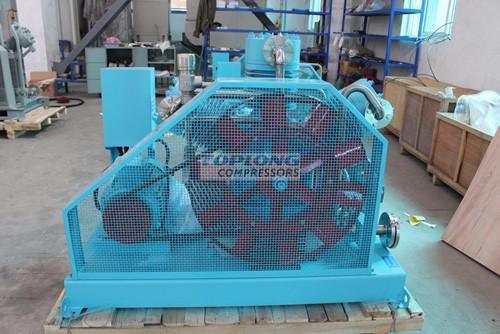

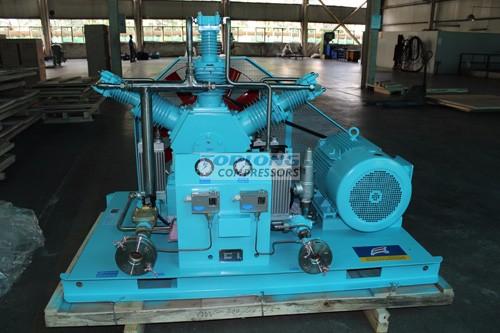

Main features of low pressure oilless oxygen compressor Devices products:
All oil-free lubrication is clean and non-polluting.
High efficiency and low energy consumption.
High reliability, continuous operation for 24 hours.
The unit is air-cooled or water-cooled to reduce installation costs.
Compact structure, low operating and maintenance costs.
Device parameters:
|
Project and parameters |
||||
|
Medium |
Oxygen |
Quantity |
1 |
|
|
Inter pressure MPa（G） |
0.015 |
Inlet temperature ℃ |
≤ 40 |
|
|
Discharge pressure Mpa（G） |
0.4 |
Discharge temperature (After cooling) ℃ |
≤ 50 |
|
|
Volume flow Nm3/h |
100 |
Piston stroke mm |
110 |
|
|
Model |
OW-100/0.15-4 |
Compressed series |
2 |
|
|
Structural type |
All oil-free lubrication W type |
Number of cylinders |
3 |
|
|
Speed of crankshaft r/min |
500 ※ |
Voltage V |
380 |
|
|
Cooling method |
air cooling |
cooling water flow t/h |
--- |
|
|
Shaft power KW |
≤14.8kw |
Motor speed r/min |
1440 |
|
|
Inlet and outlet air interface mm |
65、40 |
Entry and exit water interface mm |
--- |
|
|
Motor |
18.5KW 380V 50Hz ※ |
|||
|
Outline dimension mmXmmXmm |
1700*1200*1300 ※ |
Unit weight T |
1.1 ※ |
|
|
Driving mode |
belt drive |
|||
|
Material is partly in contact with the gas
|
gas cylinder |
stainless steel |
||
|
|
air valve |
stainless steel |
||
|
|
Pipe, cooler |
Stainless steel, aluminum alloy |
||
|
Scope of supply |
Main engine, motor, skid-mounted chassis, start cabinet, intake filter, front machine meter and control components, safety valve, random documents, random spare parts, etc. (Note: subject to the final technical agreement). |
|||
|
Other matters needing attention |
Tip: dangerous gas, users must do a good job of daily security check work! Intake and exhaust pressure protection will automatically start and stop. Gas loss during the compression process |
|||
|
Delivery time |
Contract signing, 40 working days after the advance payment to the account |
|||
