الوصف

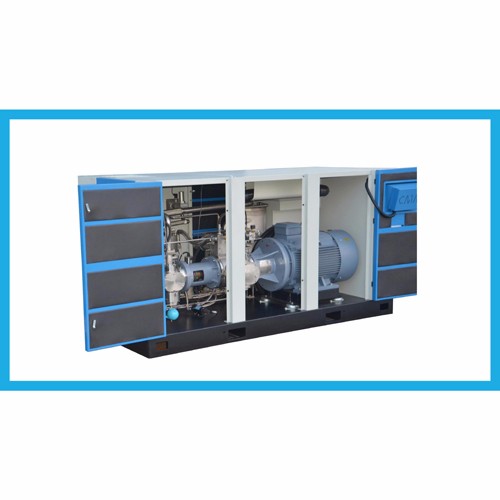

our company 10M3 40BAR ,single screw bottle blowing oil free air compressor has follows characters:
1. Stable and reliable quality,
2.super energy saving,
3.long maintenance interval,
4.less wearing parts, low maintenance cost,
5.stainless steel two-stage compressor head,
6.absolutely oil-free,
7.absolutely environmentally friendly
|
Water lubricate oil free Screw compressor |
|
|
|
|
Model |
110G |
Quantity |
1PC |
|
|
|||
|
Working pressure scope |
4.0Mpa（can adjust to 20-40bar) |
||
|
Rate discharge flow |
10.0Nm³/min |
||
|
Rated power |
110kW |
||
|
Oil content |
Null Content ,TUV oil free approval |
||
|

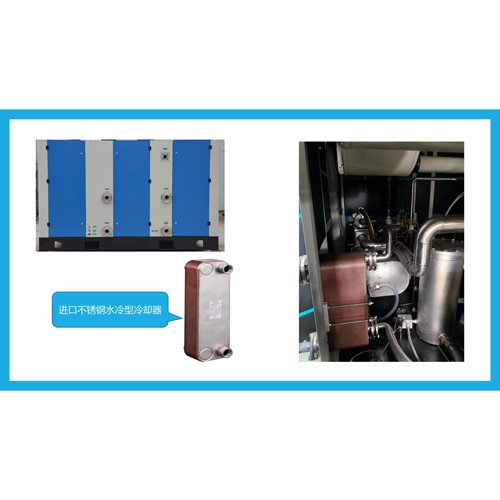

Cooling way |
water cooling |
||
|
Water connection pip |
|
||
|
Water consumption |
24Ton/hr |
||
|
Water temperature |
≦32℃ |
||
|
Noize |
72dB(A) |
||
|
Dimension L×W×H |
3000×1350×1540mm |
||
|
Whole weight |
2630kg |
||
|
Discharge pipe |
DN32 |
||
|
Electrical power |
3PH/380V/50HZ |
||
|
Equipment working temperature |
1℃～40℃ |
||
